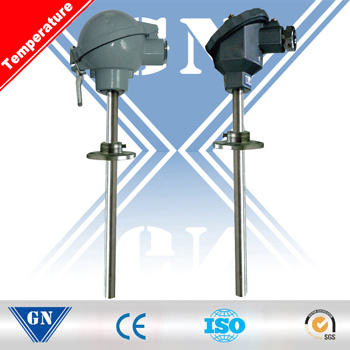

High Quality PT100 Sensor Thermocouple

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Temperature Range:	-200-500c
Fixing:	Thread/Flange/None
Connection:	Terminal Box/Compensation Cable/Plug
Probe Length:	Custom
Thermocouple Wire Element:	Simplex/Duplex
Graduation:	N,K,E,T,J,PT100,Cu50,Cu100
Pakage:	Wooden Box
Thermalwell Material:	Ss304,316,Inconel601
Accuracy:	5%

Product Description

High Quality PT100 Sensor Thermocouple


Brief introduction:

It is usually connected with display meter, recording meter and computer ect.
To directly measure the temperature of liquid, vaper, gas and solid surface
ranging from -200 to 500C during various production processes.

How to choose?
1.Diameter and length:Can be customized as customer's requirements
2.Junction box: water-proof type, splash-proof type, anti-explosion type, connector type,import type.
3.Fixed device: flange/none/screw.
4.Temperature Range: -200-500C centigrade .
5.Terminal blocks: terminals box



Application
We adopt new corrosion-resistant material, F46 coating for it. It is used to measure temperature of various corrosive media in petroleum and chemical industry, and is special thermal meter for soda chloride industry.

Main Technical Parameters
Electric outlet: M20X1.5, NPT1/2
Thermal Response Time: not more than 8S
Protection Class: IP65
Explosion-separation class: dllBT4,dllCT5
Type & Specification

Type	Graduation	Measuring  Range	Protection Tube Material	Thermal Respone Time	Specification
					d	Lx1
WZPF-130	Pt100	-200~250	1Cr18Ni9Ti	less than 80S	∮16	300x150
WZP2F-130						350x200
WZPF-130	Cu50    Cu100	0~150				400x250
WZP2F-130						450x300
WZPF-430	Pt100    Cu50	-200~250				500x350
WZP2F-430						550x400
WZCF-430	Cu100	0~150				600x450
						650x500
WZC2F-430						750x600
						1000x850

1) We may provide different class thermocouples as user's demand ;
2) We also produce protection tube of other material.






After service:
We promise to deliver the following after-sales service:
1. Warranty: The warranty period is 12 months starting from the shipping date;
2. Customers will enjoy free repair services for failures found within the warranty due to manufacturing quality;
3. For on-site services not arising from manufacturing quality, we shall charge a certain service fee at our discretion based on actual charges incurred such as travel expense;
4. We provide paid repair services for meter damages not arising from manufacturing quality issues or meter damages not within the scope of warranty.

Payment Terms:
1.Loading Port: Shanghai China
2. Samples Leading Time: 3-7 working days
3. Delivery Time: Within 7-15 days after payment
4.Payment: T/T, Western Union, Paypal

Our Integrity Promises your Quality !

Please contact with me, I will provide you professional service and high quality products.
