High Quality Pushbutton Switch (ELB2-BG21)

Prod Model:	ELB2-BG21
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Types:	Elb2-Bg21,Elb2-Bg25,Elb2-Bg45,Elb2-Bg41
Description:	2 Position Stay Put
Contact:	N/O,N/O+N/C
Operator:	Lh Position,Lh and Rh Position
Usage:	Check Button
Kind:	Single-pole on-off Switch
Type:	Open and Close
Brand:	Eleco

Product Description

Application
ELB2 series pushbutton switch are utilized in industrial controlling circuits of AC 50Hz or 60Hz with rated working voltage up to 380V, and rated DC working current up to 220V, to act as the contraller of magnetic controllers, contactors, relays and other electrical circuits.Buttons with indicator light can also beused under the condition of light signal indicating. The products conform to IEC60947-5-5 standards.

Specification
Type	Description	Contact	Operator
ELB2-BD21	2 Position stay put	N/O	Standard handle
ELB2-BD25		N/O+N/C	Standard handle
ELB2-BD33	3 position stay put	N/O+N/O	Standard handle
ELB2-BD41	2position 1 spring return from right to left	N/O	Standard handle
ELB2-BD45		N/O+N/C	Standard handle
ELB2-BD53	3 position 2 spring return to centre	N/O+N/O	Standard handle
ELB2-BJ21	2 position stay put	N/O	Long handle
ELB2-BJ25		N/O+N/C	Long handle
ELB2-BJ33	3 position stay put	N/O	Long handle
ELB2-BJ41	2 position 1 spring return from right to left	N/O+N/C	Long handle
ELB2-BJ45		N/O+N/C	Long handle
ELB2-BJ53	3 position 2 spring return from right to left	N/O	Long handle

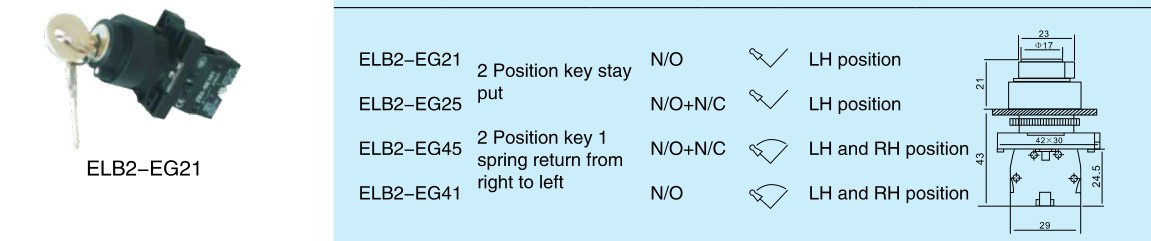

ELB2-BG21	2 position key stay put	N/O	LH position
ELB2-BG25		N/O+N/C	LH position
ELB2-BG45	2 position key 1 spring return from right to left	N/O+N/C	LH and RH position
ELB2-BG41		N/O	LH and RH position
ELB2-BG33	3 position key stay put	N/O+N/O	Centre position
ELB2-BG53	3 position key 2 spring return to centre	N/O+N/O	LH and RH position
