High Quality Pushbutton Switch (ELB2-BW8465)

Prod Model:	ELB2-BW8465
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Types:	Elb2-Bw8365,Elb2-Bw8465
Description:	with Yellow Lens,Direct Supply 220/240V
Contact:	N/O+N/C
Color:	Green,Red
Usage:	Check Button
Kind:	Single-pole on-off Switch
Type:	Open and Close
Brand:	Eleco

Product Description

Application
ELB2 series pushbutton switch are utilized in industrial controlling circuits of AC 50Hz or 60Hz with rated working voltage up to 380V, and rated DC working current up to 220V, to act as the contraller of magnetic controllers, contactors, relays and other electrical circuits.Buttons with indicator light can also beused under the condition of light signal indicating. The products conform to IEC60947-5-5 standards.

Specifications
Type	Descroption	Contact	Color
ELB2-BL8325	Without polit light 1 ush green pushbutton 1ush green pushbutton 1 projecting red pushbutton marked IP40	N/O+N/C	Green Red
ELB2-BL8425		N/O+N/C	Green Red
ELB2-BL9325	Without polit light 1 ush green pushbutton 1ush green pushbutton Marked IP65	N/O+N/C	White
	With Yellow lens Direct supply 220/240V	N/O+N/C	Green Red

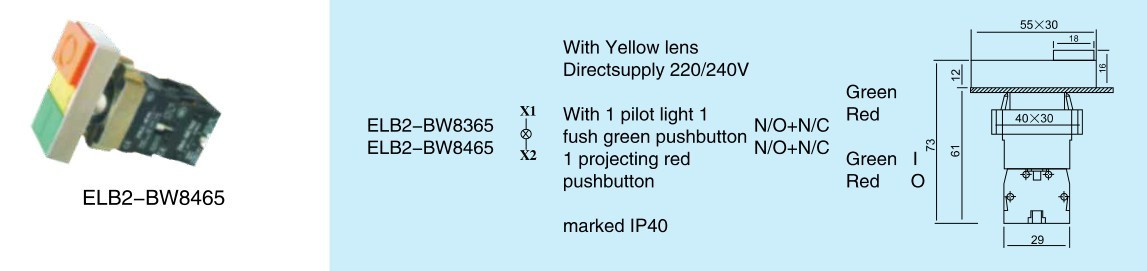

ELB2-BW8365	With 1 pilot light 1 fush green pushbutton 1 projecting red pushbutton Marked IP40
ELB2-BW8465		N/O+N/C	Green Red
ELB2-BL8325	Lens 220/250V supply direct through resistor BA9s, 130V buld included 1 projecting red pushbutton Marked IP40	N/O+N/C	Green Red
ELB2-BL8325	Lens 1.2VA/220V direct supply via integral transformer BA9s, 6V buld included 1 projecting red pushbutton Marked IP40	N/O+N/C	Green Red
