High Quality Pushbutton Switch (ELB2-EG33)

Name: High Quality Pushbutton Switch (ELB2-EG33)
Brand: all-electronics-online.com
SKU: 765213945
Availability: InStock
Rating: 4.5 (67 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	ELB2-EG33
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Types:	Elb2-Eg33,Elb2-Eg53
Description:	2 Position Stay Put,2position 1 Spring Return Fro
Contact:	N/O,N/O+N/C
Operator:	Long Handle,Lh and Rh Position
Usage:	Check Button
Kind:	Single-pole on-off Switch
Type:	Open and Close
Brand:	Eleco

Product Description

Application
ELB2 series pushbutton switch are utilized in industrial controlling circuits of AC 50Hz or 60Hz with rated working voltage up to 380V, and rated DC working current up to 220V, to act as the contraller of magnetic controllers, contactors, relays and other electrical circuits.Buttons with indicator light can also beused under the condition of light signal indicating. The products conform to IEC60947-5-5 standards.

Specification
Type	Description	Contact	Operator
ELB2-ED21	2 Position stay put	N/O	Standard handle
ELB2-ED21	2 Position stay put	N/O+N/C	Standard handle

ELB2-ED33	3Position stay put	N/O+N/O	Standard handle
ELB2-ED41	2Position 1 spring return from right to left	N/O	Standard handle
ELB2-ED45	2Position 1 spring return from right to left	N/O+N/C	Standard handle
ELB2-ED53	3 position 2 spring renturn to centre	N/O+N/O	Standard handle

ELB2-EJ21	2 Position stay put	N/O	Long handle
ELB2-EJ25	2 Position stay put	N/O+N/C	Long handle

ELB2-EJ33	3Position stay put	N/O+N/O	Long handle
ELB2-EJ41	2Position 1 spring return from right to left	N/O	Long handle
ELB2-EJ45	2Position 1 spring return from right to left	N/O+N/C	Long handle
ELB2-EJ53	3 position 2 spring renturn to centre	N/O+N/O	Long handle

ELB2-EG21	2 Position key stay put	N/O	LH position
ELB2-EG25	2 Position key stay put	N/O+N/C	LH position
ELB2-EG45	2 Position key 1 spring return from right to left	N/O+N/C	LH and RH position
ELB2-EG41	2 Position key 1 spring return from right to left	N/O	LH and RH position

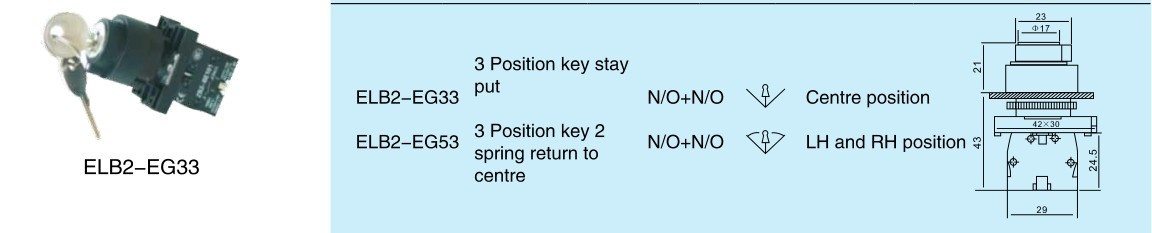

ELB2-EG33	3 Position key sray put	N/O+N/O	Centre position
ELB2-EG53	3 position 2 spring renturn to centre	N/O+N/O	LH and RH position

ELECO Electric is one of the most specialized manufacturers and exports for modular electric terminal devices for household and similar installations in China. The wide range products under manufacturing covers Miniature Citcuit Breaker(MCB), Residual Current Circuit Breaker(RCCB), Residual Current Circuit Breakers with Overcurrent Protection(RCBO), Switch- disconnector, Distribution Box, Moulded case circuit breaker(MCCB), air circuit breaker(ACB), AC Contactor, Magnetic Starter, Motor Protection Circuit Breaker, Thermal Relay and K. W. H meter etc. The company takes the reputation as one of the largest manufacturer of electromagnetic type RCCB and RCBO. OEM or ODM projects are fully accepted, and currently the company is co-operating with numbers of renowned intermational corporations for such projects.

Experience in manufacturing under customers design, trade, biding project, OEM and competitive cooperation related to the new products & technology. Won approvals of CE, SEMKO, CB, KEMA, FI, CCC and ISO9001 Quality System Certificate etc. Products being popular around the world, such as Europe, America, Southeast Asia, Middle East, Africa, etc.
