High Quality Rainproof QS5 Cam Switch QS5-15A Cam Starter

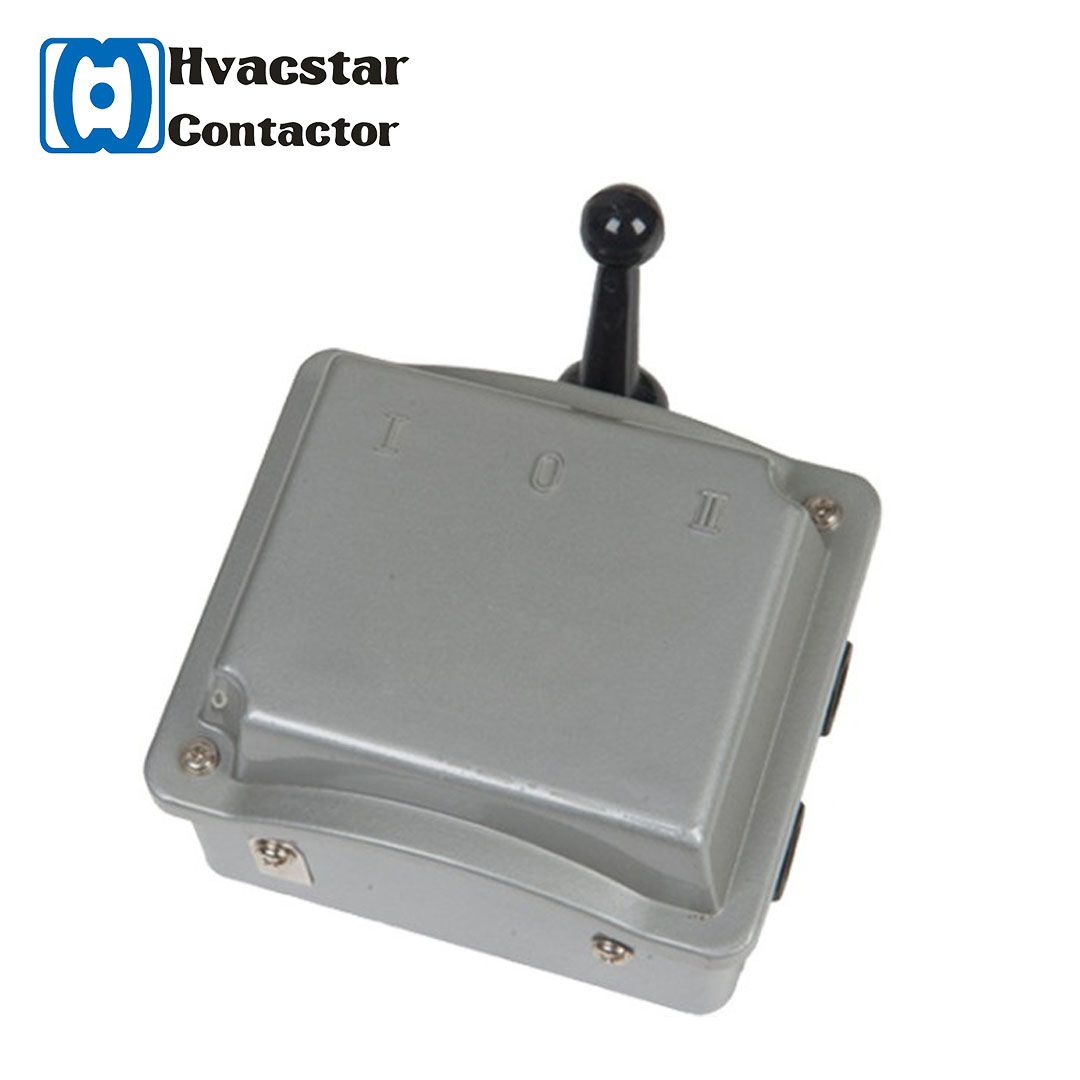

Name: High Quality Rainproof QS5 Cam Switch QS5-15A Cam Starter
Brand: all-electronics-online.com
SKU: 831602725
Availability: InStock
Rating: 4.3 (84 reviews)

Price:	US $ 3.15-4.09/Piece
Min Order:	500/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	QS5-15A
Position Of Lever:	0-60
Max. Current:	15A
Max. Voltage:	500V
Rotary Number:	Single Button
Usage:	Machinery
Standard:	Standard
Operation:	Protection Type
Condition:	New

Product Description

QS5-15A 50PCS/CTN 46X21X35CM 17.5KGS
QS5-30A 30PCS/CTN 43X28X42.5CM 17KGS
QS5-63A 24PCS/CTN 47X34X45CM 22KGS
QS5-100A 4PCS/CTN 54.5X32X30CM 17KGS

High quality QS5 Cam Switch QS5-15A Cam Starter

Application

QS5 Series new design Cam Switches Cam starters isolated switch are mainly used in circuits of AC 50Hz,voltage up to 500V, max power 7. 5kW for starting or stopping motors,and also for changing between two circuits.

High quality QS5 Cam Switch Specification

Type	Mark	Rated current (A)	Motor control capacity (HP)	Electrical life (times)	Mechanical life (times)	Frequency of operation (per hr)	Applications	Position of lever
QS5-15A	I-O	15	5.5	100000	250000	200	ON-OFF switching	0-60
QS5-30A		30	10
QS5-15N	I-O-I	15	5.5				Forward & reverse	60-0-60
QS5-30N		30	10
QS5-15P/3	I-O-II	15	5.5				for 3 pole two circuits	60-0-60
QS5-30P/3		30	10
QS5-63A	I-O	63	22	80000	200000	180	ON-OFF switching	0-60
QS5-100A		100	30
QS5-63N	I-O-I	63	22				Forward & reverse	60-0-60
QS5-100N		100	30
QS5-63P/4	I-O-II	63	22				for 3 pole two circuits	60-0-60
QS5-100P/4		100	30
QS5-200P/4		200	55	50000	150000
