Product Description

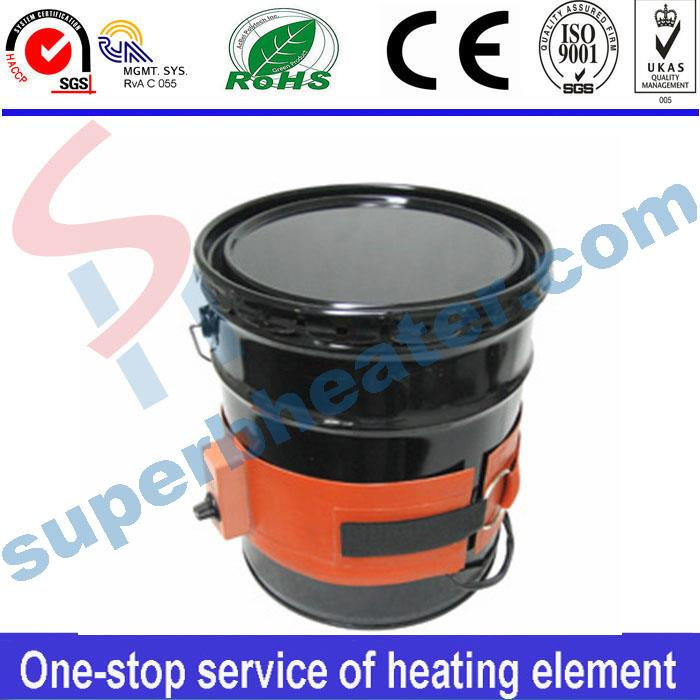

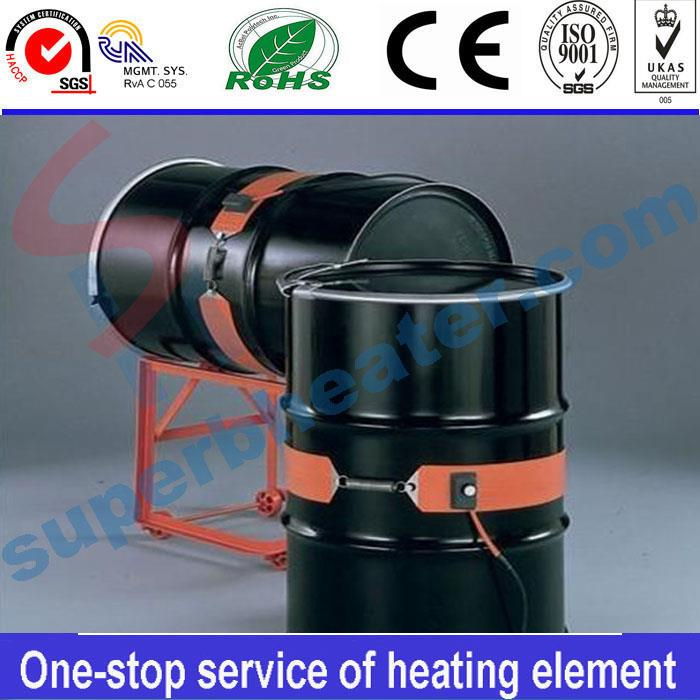

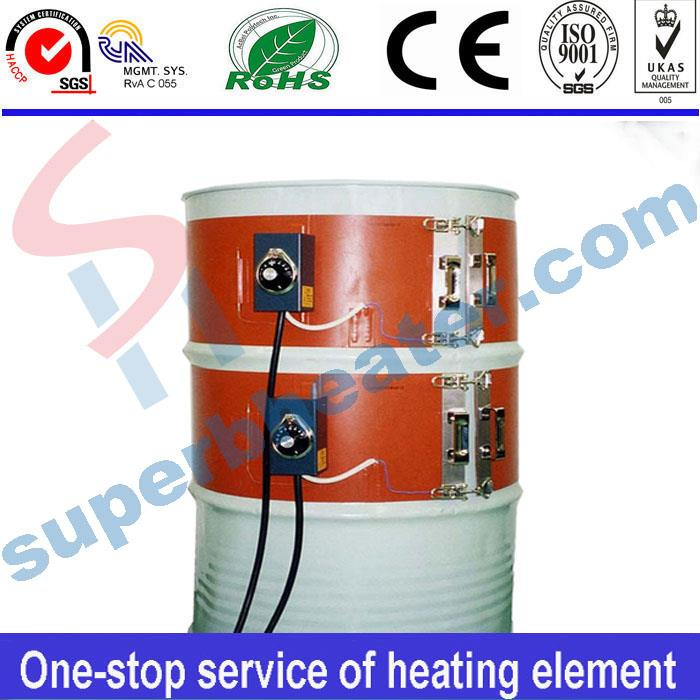

Product DescriptionElectric silicone rubber heating band heater for oil drumSilicon heating mat is beneficial to take out liquid and coagulum from drums easily by heating, such as adhesive, oil, asphalt, paint, paraffin wax, oil and various resin raw materials in the drum. It can make viscosity of materials descending and uniform by heating the drum, and reduce the power of pump. Therefore, the heater does not be restricted by seasons, and can be used throughout the year.
| Product Name | silicon heating mat/pad/ silicon heater |
| Size | 20mm*25mm~500mm*5000mm. |
| Lead Wire | 80~2000mm |
| Shape | customized |
| Power design | customized |
| Working Temp | -60~280ºC |
| Thickness | thickness 1~5mm |
Application
| 1 | thermal transfer equipment |
| 2 | prevent condensation in motor or instrument cabinets |
| 3 | freeze or condensation prevention in housings containing electronic equipment |
| 4 | composite bonding processes |
| 5 | semicconductor process heating |
| 6 | food processing heating |
| 7 | airplane engine heater and aerospace industry |

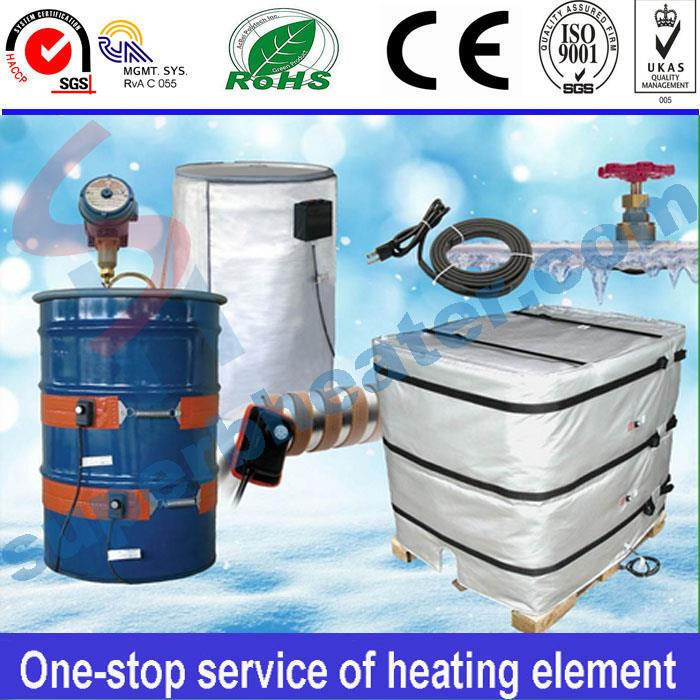

| 8 | drums and other vessels and viscosity control and asphalt storage |
| 9 | medical equipment such as blood analyzers, medical respirators, test tube heater |
| 10 | curing of plastic laminates |
| 11 | computer peripherals such as laser printer, duplicating machines |
| NOTE | special size and shape could be customized |
Flexible Silicone Drum Heating Strip can be made with etched foil heating elements or wire wound heating elements.
a)Etched Foil Flexible Silicone Drum Heating Strip
The etched element provides superior heat transfer and exceptionally uniform heat output, which results in a faster warm-up cycle and longer life. The heaters operate in ambient temperatures from -80°F to 500°F.
Advantages over Wire Wound Flexible Silicone Drum Heating Strip:
b)Wire Wound Flexible Silicone Drum Heating Strip
The excellent dielectric properties of silicone rubber and the strength of fiberglass combine to produce a unique heater. First, fine nickel-chromium alloy wire is spiraled onto a center core of fiberglass twine, producing a strong, flexible heating element. Electronically-controlled precision winding equipment ensures consistency.
Circuits are then hand-wound on permanent tooling providing repeatability of resistance and pattern. Parallel circuits are utilized where possible, permitting continued operation should a single circuit be damaged.
When the heating element is positioned, a second layer of silicone rubber is laid over the wire. The layers are then vulcanized to permanently position the circuits.
Using these versatile and flexible heaters, the ability to apply heat exactly where required is limited only by imagination - and a maximum continuous operating temperature of about 200°C
Higher watt density
Distributed wattages
Elimination of edge loss compensation
Greater element area over heater sheath
Complex heat distribution with a rating of about 200°C (392°F)
Economical mass production
Reproduction of complex circuits
Superb Heater Technology has been focused on the production of customized electric flexible silicone rubber heater since 1985, which is well-known as one of the leading manufacturers and suppliers of customized electric flexible silicone rubber heater. In the past years, we owned strong reputation for the high quality, reliable performance and strong durability of our products. Should you are interested, please feel free to contact our factory.
