| Prod Model: |
CBT Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Voltage(V): |
AC 230/240,AC 400/415 |
| Rated Current ,in: |
16,20,25,32,40,50,63,80,100 |
| Rated Residual Operating Current (in)(Ma: |
10,30,100,300,500 |
| Rated Residual Non-Operation Current (in: |
≤0.5 in |
| Residual Operating Current Scope: |
0.5in~1in |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Manual Type |
| Speed: |
High-Speed Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Installation: |
Fixed |
| Certification: |
CCC |
| Structure: |
RCCB |
| Poles Number: |
1p+N |
| Function: |
Ground Falt and Overcurrent |
Product Description
Application

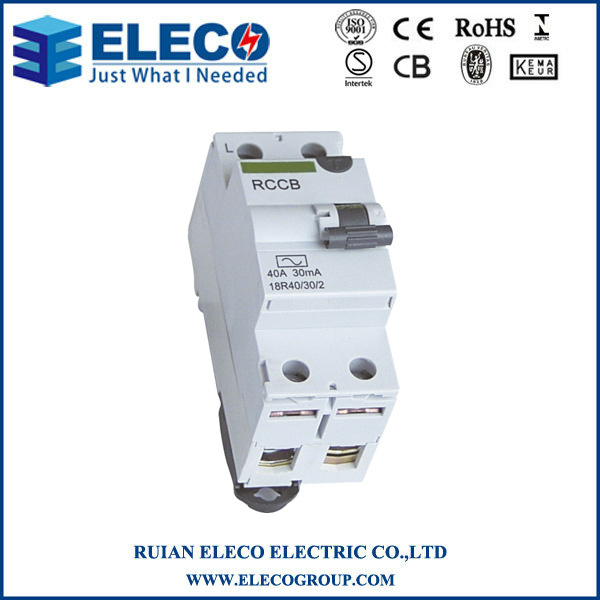

TCBT Residual Current Circuit Breaker without over current protection conforms to the
standard of GB16916.1, IEC61008, BS4293 etc. It is used in the circuits of AC50~60Hz, single
phase 230V(220V), three phases 400V(380V) in industrial & mining enterprises, commercial
buildings and housing for protection of personal electric shock hazard and electric equipment and
for unfrequent switchover of circuits under normal conditions.
Specification
| Conforms with UL standard 943 CLASS A(GFCI and 498 receptacle). |
| Protects against ground fault shock hazard from frayed wiring, damaged appliances, wherever electrical contact might provide a path to ground through human body. |
| Can be wired to provide 20 amp GFCI feed-through protection to other outlets on outlets on the same circuit. |
| Overload and neutral line error grounding protection. |
| Trip thresholds of 4~6 milliamps. Unit trips within 0.025 seconds of fault detection. |
| Operate within -35ºC~66ºC environmental temperature. |
| Protect against 10~450MHz voice interference. |
| Made of high impact termoplastic to resist damage from impact and frequent use. And with unbreakable nylon wall plate. |
| Back and side wiring terminals permit fast installation. Clearly marked line and load terminals. |
| Incorporate dual bolt terminal and installation screws which accept standard screw driver blades. |
| The voltage and frequency of the product can be designed as per customers different repuirements. |
