| Prod Model: |
LMR100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Ottocable: |
LMR100 RF Coaxial Cable |
| Inner Conductor: |
0.46 Bare Copper/CCS |
| Insulation: |
1.52 Solid PE |
| First Shield: |
1.65 Aluminum Foil |
| Second Shield: |
2.11 Tc Wire Braid |
| Jacket: |
2.79 PVC/LSZH/PE |
| Application: |
RF Cable |
| Certification: |
RoHS |
| Conductor Material: |
Tc Wire Braid |
| Cover Material: |
PVC/LSZH/PE |
| Type: |
Coaxial |
| Wire Core Material: |
Bc/CCS |
| Model: |
LMR100 |
| Brand: |
Ottocable |
Product Description

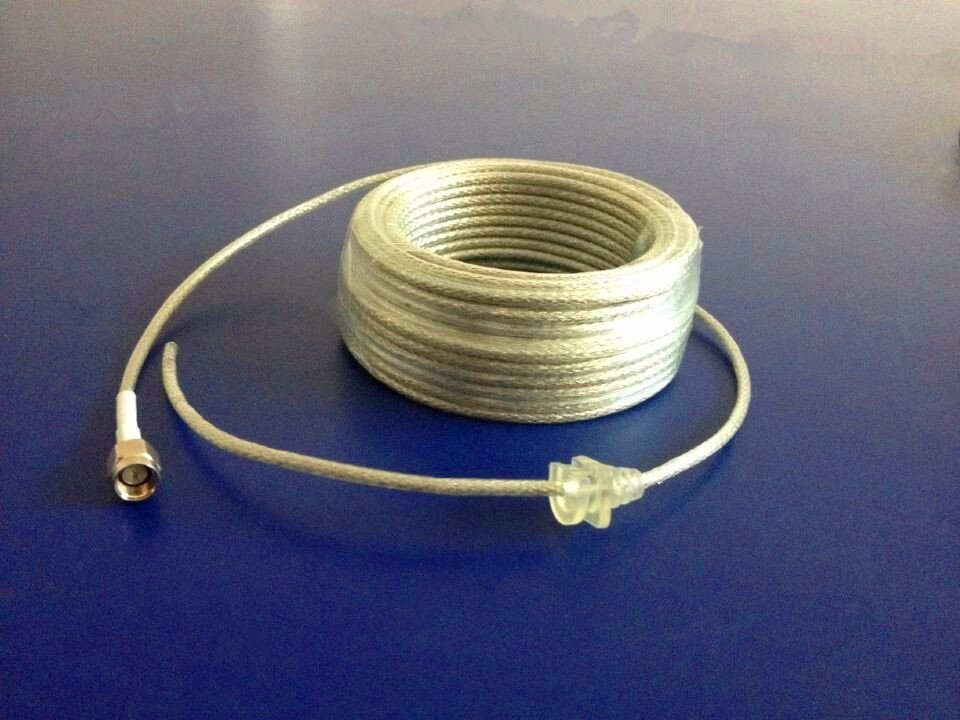

LMR100-XLPE OverviewThis 50 Ohm LMR100-XLPE coaxial cable can work for a long time in a 105 degree temperature environment. As a substitute for RG316 coaxial cable,its versatile cable assemblies with various lengths have been widely used for tight fit applications. Features· 50 Ohm data signal transmission;· The inner conductor is solid core;· Special insulation and jacket materials,providing good performance of temperature;· As a substitute for RG316 coaxial cable;· Small diameter is ideal for tight fit applications;· Customized cable color , winding and connector, meet your different requirements;· RoHS compliant;Assemblies & ApplicationThis 50 Ohm LMR100-XLPE coaxial cable can be fixed with kinds of connectors,such as SMA,FRAKA,BNC,MCX connectors.These versatile cable assemblies with various lengths have been widely applied to CDMA,TD,GSM antenna systems and other communication systems. Communications RF Coax Cable
LMR100
Construction| Item | Material | Diameter(mm) | Remarks |
Inner Conductor
Insulation
First Shield
Second Shield
Jacket | Bare Copper/CCS
Solid PE
Aluminum Foil
TC Wire Braid
PVC/PE/LSZH | 0.46
1.52
1.65
2.11
2.79 | Per customer's requirements:
Out conductor could be 48,64,80 or 96 TC wires braiding;
Jacket could be PVC,PE or LSZH; |
Electrical CharacteristicsImpedance (Ω)
Capacitance (pF/m)
Velocity of Propagation (%)
Return Loss
Screening Effectiveness(db)
Voltage With Stand
Installation Temp(ºC)
Operating Temp(ºC) | 50±3
101.1
66.0
≥20
≥80
500.0
-30 to +80
-30 to +80 |
Attenuation (@200C)| Frequency(MHz) | Max Attenuation(dB/100m) |
150
220
450
900
1500
1800
2000
2500 | 29.4
35.8
51.9
74.9
98.7
109.0
115.5
130.6 |
More Ideas1) If require conventional construction and materials, please click LMR100-XLPE;2) If require better electrical performance,please click LMR100-XLPE-CU FOIL;3) If require to used in higher temperature environment,please click RG316;4) If require low price and using at normal temperature,please click FLMR100;5) For more LMR100-XLPE assemblies,please click LMR100-XLPE ASSEMBLIES; 6) Any other requirements or queries, please click CONTACT US. Mainly be used in 4G, 3G, GSM, and CDMA telecommunication system, digital microwave communication system, aeronautics and space industry, precise instrument.
Company Link: www.ottocable.com

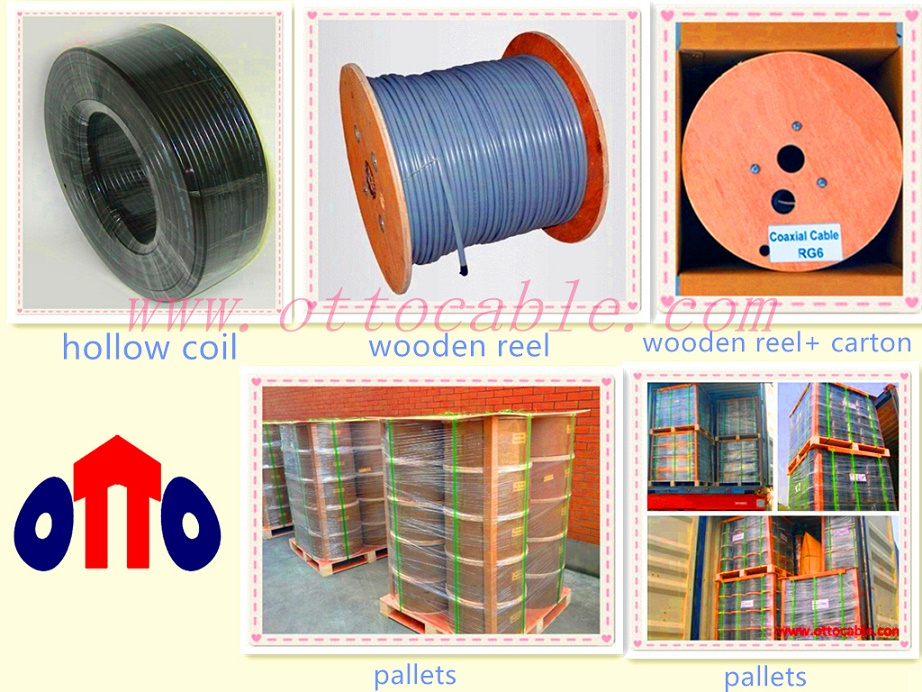

Packaging & Shipping
Our Services

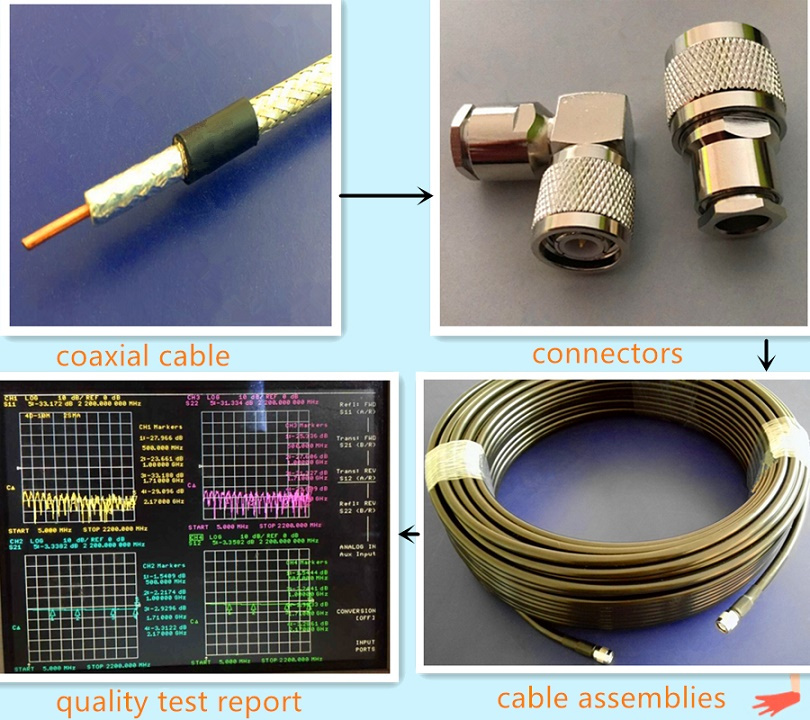

Our company can fabricate coaxial cable assemblies for customer according to the customer's requirement ,like different length,different type connector and so on. We also can provide the detailed quality test report so that the performance is fine.
