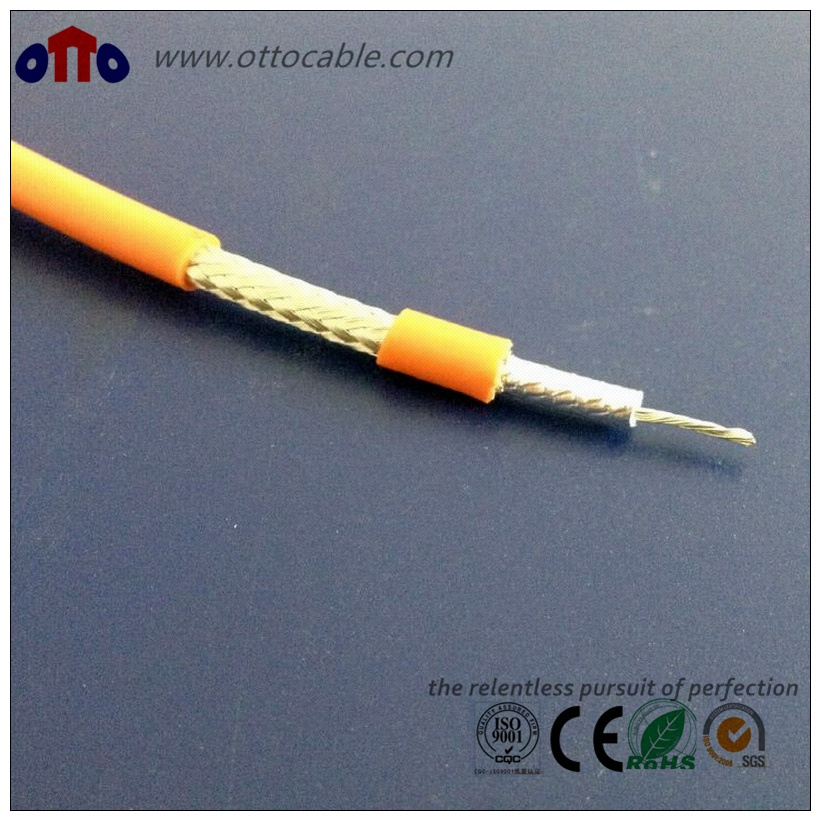

High Quality RF Coaxial Cable (LMR600-UF)

Name: High Quality RF Coaxial Cable (LMR600-UF)
Brand: all-electronics-online.com
SKU: 766001325
Availability: InStock
Rating: 4.9 (138 reviews)

Price:	Negotiable/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	5000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LMR600-UF
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Ottocable:	LMR600-UF
Inner Conductor:	7*1.55bc
Dielectric:	11.56foam PE
First Shield:	11.71bonded Aluminum Foil
Second Shield:	12.45tc Wire Braid
Jacket:	14.99PVC/TPE/TPU
Application:	RF Cable
Certification:	RoHS
Conductor Material:	Tc Wire Braid
Cover Material:	PVC/TPE/TPU
Type:	Coaxial
Model:	LMR600-UF
Brand:	Ottocable

Product Description

Communications RF Coax Cable

LMR600-UF

Construction

Item	Material	Diameter(mm)	Remarks
Inner Conductor Dielectric First Shield Second Shield Jacket	Bare Copper Foam PE Bonded Aluminum Foil TC Wire Braid PVC/TPE/TPU	7*1.55 11.56 11.71 12.45 14.99	Per customer's requirements: Out conductor could be 144,168,192 or 216 TC wires braiding; Jacket could be PVC,TPE or TPU;

Electrical Characteristics

Impedance (Ω)
Capacitance (pF/m)
Velocity of Propagation (%)
Return Loss
Screening Effectiveness(db)
Voltage With Stand
Spark Tdsk(VRMS)
Installation Temp(ºC)
Operating Temp(ºC)

50±3
76.6
87.0
≥20
≥90
4000.0
8000.0
-30 to +70
-30 to +70

Attenuation (@200C)

Frequency(MHz)	Max Attenuation(dB/100m)
150 220 450 900 1500 1800 2000	5.0 5.9 8.1 11.3 14.6 16.5 18.2

More Ideas
1)  If require conventional construction and materials, please click FLMR600;
2)  If require good flexibility,please click LMR600-UF;
3)  If require lightweight and weldable shield,please click LMR600-CCA-TCCA or LMR600-CCA-TC ;
4)  If require lightweight and lower price,please click LMR600-CCA-AL ;
5)  For more FLMR600 assemblies,please click FLMR600 ASSEMBLIES;
6)  Any other requirements or queries, please click CONTACT US.

Company Link:     http://ottoding.en.made-in-china.com/

Otto Cable Technology Co., Ltd. is a Hi-Tech enterprise specializes in researching, manufacturing and selling 50 Ohm & 75 Ohm coaxial cables, cable assemblies and other related products.

After decades of practical experience and technical skills, we have been very professional on these products, which covers:

1). Wireless RF Transmission coaxial cable, 50 Ohms RG MIL-C-17 and JIS Spec coaxial cables, mainly applying to 4G, 3G, GSM, and CDMA telecommunication system, digital microwave communication system, DAS, GPS and other car antenna system.

50 Ohm coaxial cable assemblies/pigtails/jumper cables/pre-made coax cables usually fixed with various connectors, such as N, SMA, SMB, MCX, MMCX, TNC, BNC, UHF...

2). 75 Ohms RG MIL-C-17 Spec coaxial cables, CCTV, CATV-MATV coaxial cable, satellite coaxial cable, video coaxial cable, which are serving for existing and next generation TV network and security monitoring and control systems.

Besides of the standard coaxial cables, customer required cables and value-added services are also available in our company.
