High Quality RF Coaxial Cable Rg195

Name: High Quality RF Coaxial Cable Rg195
Brand: all-electronics-online.com
SKU: 801735655
Availability: InStock
Rating: 4.4 (150 reviews)

Price:	US $ 1/Meter
Min Order:	5000/Meter
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	RG195
Application:	RF Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Certification:	UL
Cover Material:	FEP
Type:	Coaxial Cable
Brand:	Otto

Product Description

50 Ohm Super Flexbile RG Cable Teflon Cable RG195

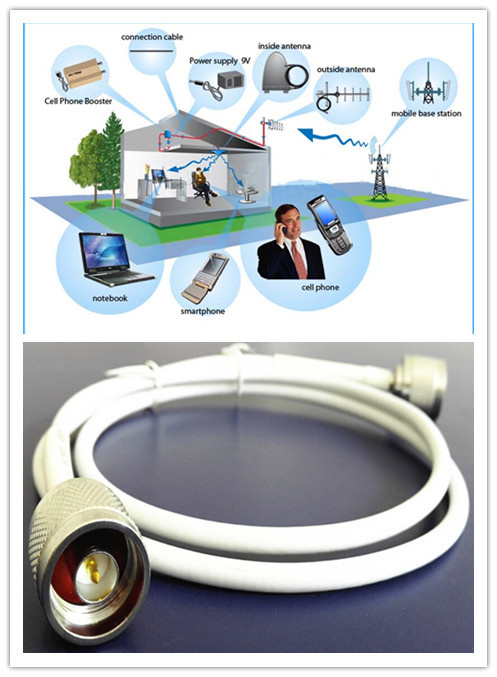

This 50 Ohm RG195 coaxial cable can be equipped with varied connectors,such as SMA,SMB,MXC,N,BNC,TNC connectors.These versatile cable assemblies with various lengths have been widely applied to GPS,BEIDOU,GSM and other communication systems.

Features

1).50 Ohm data signal transmission;
2).The inner conductor could be stranded or solid;
3).Special insulation materials,providing good electrical property and welding performance;
4).Small diameter is ideal for tight fit applications;
5).Customized cable color , winding and connector, meet your different requirements;
6).RoHS compliant;

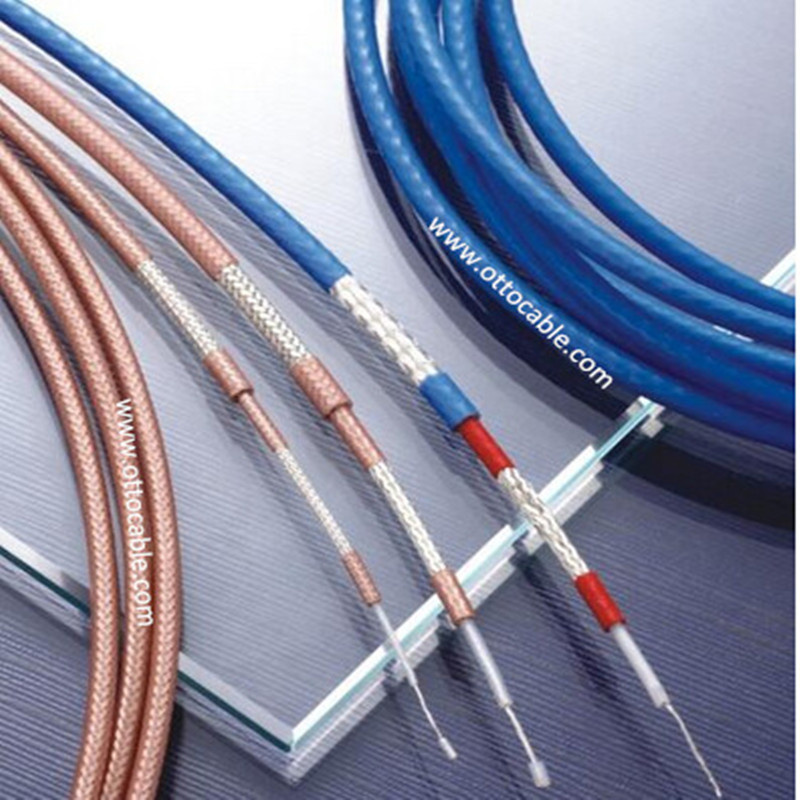

RG195 Coaxial Cable
Construction
Item	Material		Diameter(mm)
Inner Conductor	Sliver Plated Copper Clad Steel		7*0.1
Dielectric	PTFE		2.59
First Shield	Silver Plated Copper Braid		3.0
Jacket	FEP		3.58

Electrical Characteristics		Attenuation @20ºC (dB/100M)
Impedance(Ω)	50	@100MHz	18.7
Velocity of Propagation(%)	70	@200MHz	31.5
Max Operating Frequency (MHz)	3000	@400MHz	41.0
Max Operating Voltage(VRMS)	1000	@700MHz	55.4
Operating Temperature(ºC)	-55 to +200	@900MHz	58.7
-----	-----	@1000MHz	65.6

Otto Cable Technology Co., Ltd. is a Hi-Tech enterprise specializes in researching, manufacturing and selling 50 Ohm & 75 Ohm coaxial cables, cable assemblies and other related products.

After decades of practical experience and technical skills, we have been very professional on these products, which covers:

1). Wireless RF Transmission coaxial cable, 50 Ohms RG MIL-C-17 and JIS Spec coaxial cables, mainly applying to 4G, 3G, GSM, and CDMA telecommunication system, digital microwave communication system, DAS, GPS and other car antenna system.

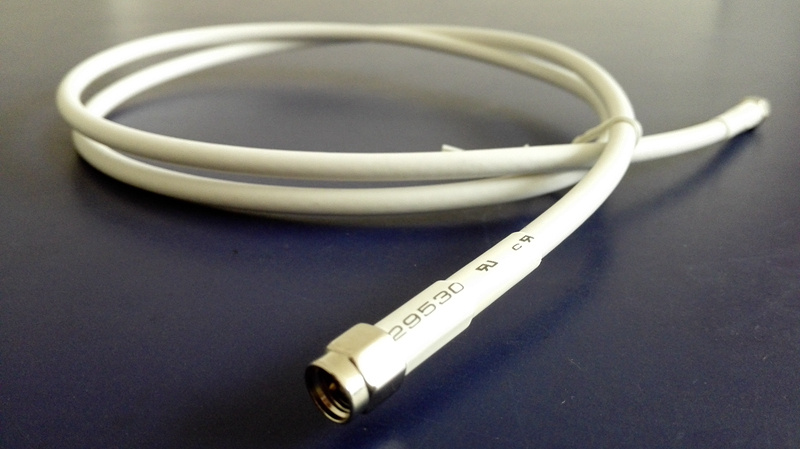

50 Ohm coaxial cable assemblies/pigtails/jumper cables/pre-made coax cables usually fixed with various connectors, such as N, SMA, SMB, MCX, MMCX, TNC, BNC, UHF...

2). 75 Ohms RG MIL-C-17 Spec coaxial cables, CCTV, CATV-MATV coaxial cable, satellite coaxial cable, video coaxial cable, which are serving for existing and next generation TV network and security monitoring and control systems.

Besides of the standard coaxial cables, customer required cables and value-added services are also available in our company.
