High Quality RF Coaxial Cable Rg223

Name: High Quality RF Coaxial Cable Rg223
Brand: all-electronics-online.com
SKU: 766147375
Availability: InStock
Rating: 4.9 (124 reviews)

Price:	Negotiable/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	5000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	RG223
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Ottocable:	Rg223 Coaxial Cable
Inner Conductor:	0.90 Sliver Plated Copper/Tinned Copper
Dielectric:	2.95 Solid PE
First Shield:	3.45 Tinned Copper/Sliver Plated Copper
Second Shield:	3.95 Tinned Copper/Sliver Plated Copper
Jacket:	5.30 PVC/TPE
Application:	RF Cable
Certification:	RoHS
Conductor Material:	Tinned Copper/Sliver Plated Copper
Cover Material:	PVC/TPE
Type:	Coaxial
Wire Core Material:	Sliver Plated Copper
Model:	Rg223
Brand:	Ottocable

Product Description

RG223

Overview
This 50 Ohm RG223 cable with double braids is a multipurpose MIL-C-17 coaxial cable. These versatile cable assemblies with various lengths have been widely applied to communication systems.

Features
·         50 Ohm data signal transmission;
·         The shield is double braids;
·         The insulation is solid PE;
·         Common size cable can be easily terminated;
·         RoHS compliant;
Assemblies & Application

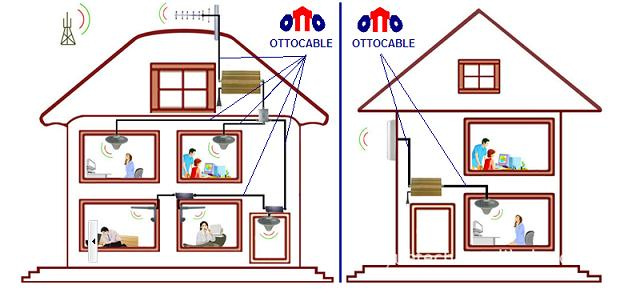

This 50 Ohm RG223 coaxial cable can be fixed with kinds of connectors,such as SMA,N,BNC,TNC connectors.These versatile cable assemblies with various lengths have been widely applied to CDMA,GSM and other communication systems.

RG MIL-C-17 Coax Cable

RG223

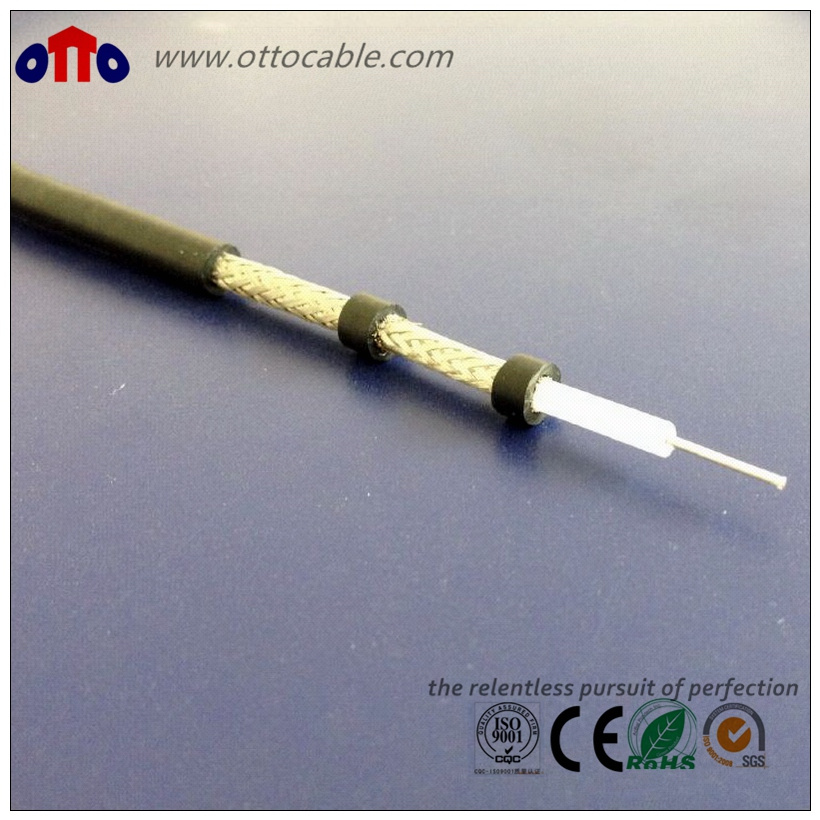

Construction

	Material	Diameter(mm)	Remarks
Inner Conductor Insulation Shield 1 Shield 2 Jacket	Sliver Plated Copper/Tinned copper Solid PE Sliver Plated Copper wire Braid/tinned copper Sliver Plated Copper wire Braid/tinned copper PVC/TPE	0.90 2.95 3.45 3.95 5.30	Per customer's requirements: Out conductor could be 112 or 128 PC wires braiding; Jacket could be PVC or TPE;

Electrical Characteristics

Capacitance (pF/m)
Impedance (Ω)
Velocity of Propagation (%)
Max Operating Frequency (MHz)
Max Operating Voltage(VRMS)
Return Loss (dB)
Operating Temperature(0C)

101
50
66.0
2000
1500
25dB (5 to 1000 MHz)
-30 to +70

Attenuation [@68oF (20oC)]

Frequency(MHz)	Max Attenuation (dB/100m)
100 400 1000 3000	13.50 28.10 48.00 83.50

More Ideas
1)  If require conventional construction and materials, please click RG223;
2)  If require lightweight and lower price,you can choose RG223-PC-TC or RG223-TC-TC or RG58;
3)  For more RG223 assemblies,you can choose RG223 ASSEMBLIES;
4)  Any other requirements or queries, please click CONTACT US

Company Link: http://ottoding.en.made-in-china.com/

Otto Cable Technology Co., Ltd. is a Hi-Tech enterprise specializes in researching, manufacturing and selling 50 Ohm & 75 Ohm coaxial cables, cable assemblies and other related products.

After decades of practical experience and technical skills, we have been very professional on these products, which covers:

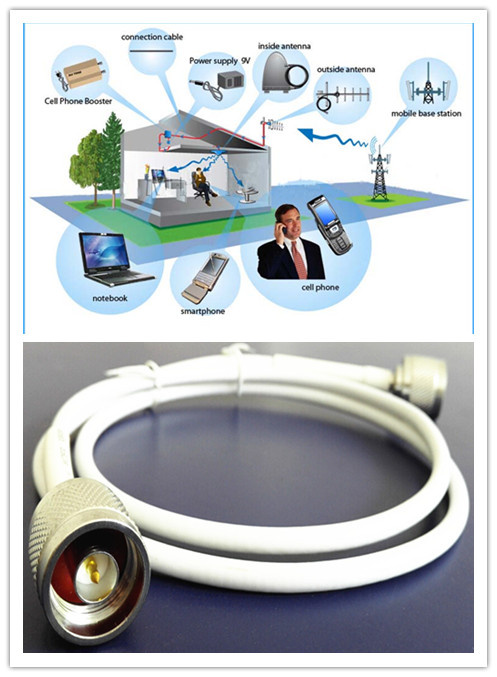

1). Wireless RF Transmission coaxial cable, 50 Ohms RG MIL-C-17 and JIS Spec coaxial cables, mainly applying to 4G, 3G, GSM, and CDMA telecommunication system, digital microwave communication system, DAS, GPS and other car antenna system.

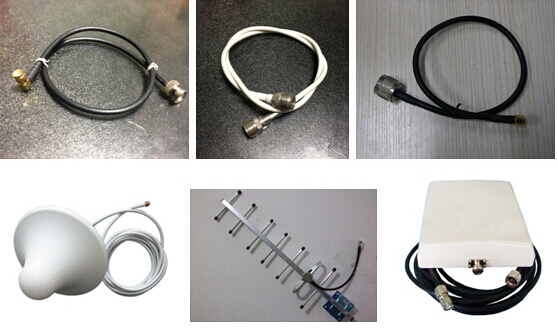

50 Ohm coaxial cable assemblies/pigtails/jumper cables/pre-made coax cables usually fixed with various connectors, such as N, SMA, SMB, MCX, MMCX, TNC, BNC, UHF...

2). 75 Ohms RG MIL-C-17 Spec coaxial cables, CCTV, CATV-MATV coaxial cable, satellite coaxial cable, video coaxial cable, which are serving for existing and next generation TV network and security monitoring and control systems.

Besides of the standard coaxial cables, customer required cables and value-added services are also available in our company.
