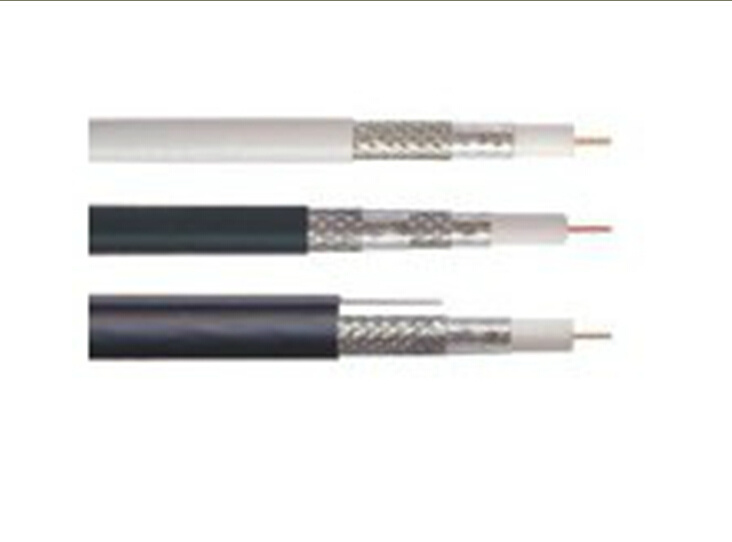

High Quality RG6 Coaxial Cable/Cable for CATV

Prod Model:	RG6
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Black, White
Length:	10m-300m
Packing:	Coil
Connector:	with/Without F Connector
Cooling System:	Radiator
Function:	Signal Transmitting
Materials:	CCA/Copper
Type:	Coxial

Product Description

RG6: 1.02+-0.01mm Cu/ 5*16*0.1MM CU/ 6.8+-0.2mm PVC
RG6: 1.12+0.01mm Cu/5*16*0.1MM CU/ 6.8+-0.2mm PVC
RG11: 1.67+-0.01 mm CCA/6*16*0.12/ 10.3+-0.2mm PE
RG11: 1.68+-0.01 mm CCA/7*16*0.16/ 10.3+-0.2mm PE
RG12: 2.17+-0.01 mm CU/ 12.3+-0.2mm PE
QR500: 2.78+0.01 mm Cu/15.10+-0.2mm PE
QR540: 3.38+0.01 mm CCA/15.78+-0.2mm PE

Note:
1) Center conductor: Tinned Copper, Bare Copper, and Copper Clad Steel available;
2) Al-foil: Non-bonded Al-foil, bonded Al-foil, double bonded Al-foil,
And double non-bonded Al-foil are available;
3) Braiding wire: AL, Bare Copper and Tinned Copper available;
4) Braiding wire diameter: 0.10, 0.12, 0.13, 0.14, 0.15, 0.16mm available;
5) Braiding net: 32, 48, 64, 72, 80, 96, 120, 128, 144 and more available;
6) Braiding coverage: Between 30- 97% available;


CONDUCTOR	BC/CCS	1.02MM
DIELECTRIC	FPE	5MM
1st Shield	Al Foil	100%,
2nd Shield	BC orAI Braiding	30%-97%
Out jacket	pvc	6.8mm

Packing:
100, 200, 305m/roll, 100, 200, 300 yards/roll
Other length is available according to clients' request
Inner: Wooden, plastic and paper reels are available
Outer: Carton box, pull out box, pallet are available
Other packing available according to clients' request
