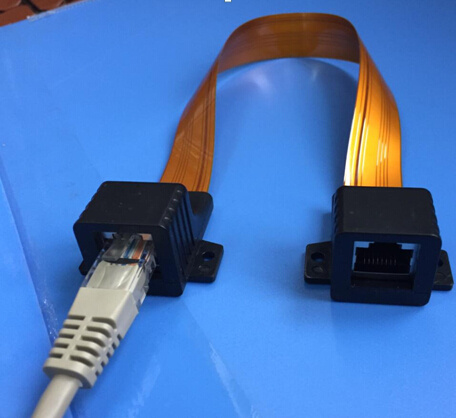

High Quality RJ45 Flat Window Cable for Network

Name: High Quality RJ45 Flat Window Cable for Network
Brand: all-electronics-online.com
SKU: 819264035
Availability: InStock
Rating: 4.7 (139 reviews)

Price:	US $ 1.5/Piece
Min Order:	500/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	rj45 flat cable (FS-RJ45 flat)

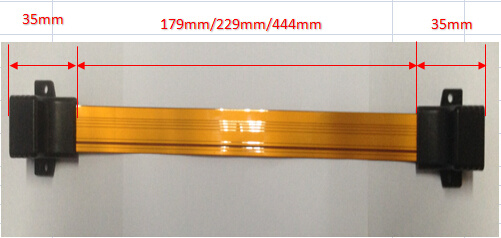

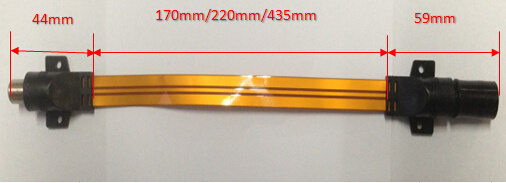

Length:	17.3cm, 44cm or Customized
Conductor:	Copper
Cable Type:	Flat Cable
Connector Type:	RJ45 Connector
Application:	HDTV
Conductor Material:	Copper
Cover Material:	PVC
Type:	Cat 5
Certification:	UL
Model:	UTP Cat5e Cable
Brand:	Fulsan

Product Description

High Quality RJ45 Flat Window Cable For Network

For feeding coax cables through windows and doors.

super slim copper conductor Window cable

- No Drilling Necessary
- Flat & Flexible Moldable
- High quality cable Not a imitated bad quality

Window cable Description:

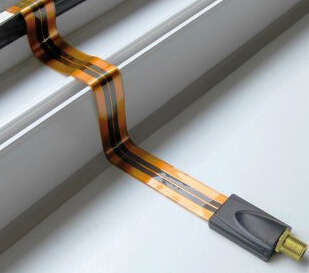

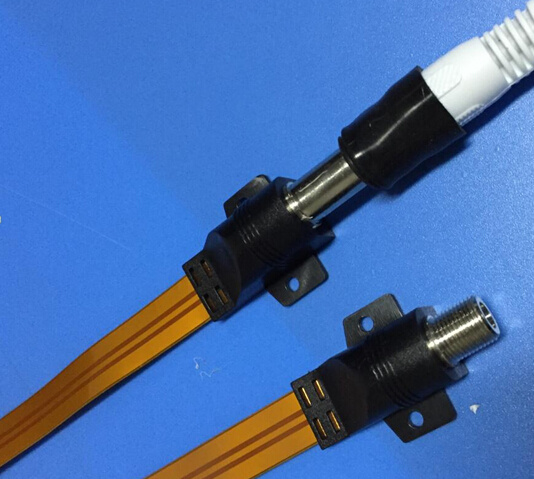

1. Flat coax cable,for feeding coax cables through windows and doors

2. For use with normal coax-cable. Saves drilling, for windows, doors,caravans and balconies.

3. Hiqh Quality Window Cable,with low loss and high screening(120dB)

RG6 Approved to work with all satellite/cable tv systems,High-quality, are completely flexible to fit into tight spaces:

1) bring cable through a closed window or door .

2) Perfect for temporary installed in an apartment or car where you could not drill holes to run coaxial cable.

3) could use this flat coaxial cable through your RV windows when I go camping

4) Works for all receivers on the market guaranteed

ITEM	Specified Value	Condition
Appearance	Outer conductor shall be have no sign of cracks or foreign obstacles.	Visual Magnifier
Dielectric	Min. 1000 MΩ/km	at 20°C
Velocity of Propagation	Nom. 69.5%	-
VSWR	Max. 1.5	at 1GHz ~ 3GHz
Capacitance	Nom. 95.2 pF/m	-
Characteristic Impedance	75 ± 5 Ω	-
Temperature Rating	- 30°C ~ 60°C	-
Bending Radius	Min. 4 mm	-
Approx. Weight	5.5 kg/km	-
Typical Attenuation [Basis] (Basis x Length = Type Attenuation)	0. 87 dB/m	at 500MHz
	1.28 dB/m	at 1000MHz
	1.52 dB/m	at 1575MHz
	1.75 dB/m	at 2000MHz
	1.92 dB/m	at 2345MHz

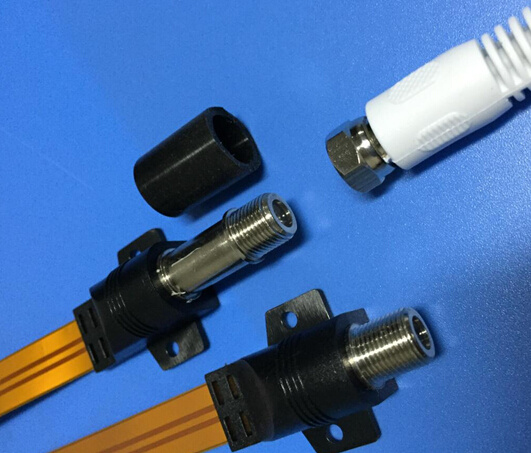

Connector Type	SMA (M) to (F)
Installation	3M tape, Screw
