| Prod Model: |
YGCR22 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| High Temperature Resistance: |
Available |
| Insulation: |
Silicon Rubber |
| Sheathed: |
Silicon Rubber |
| Steel Tape Armoured: |
Available, as Per Customer's Requirement |
| Cross Section For Control Cable: |
0.75-6mm2 |
| Cross Section For Power Cable: |
2.5-400mm2 |
| Rated Voltage: |
0.6/1kv, 450/750V |
| Core Number: |
1-5(Power Cable),2-61(Control Cable) |
| Braided Screen: |
Available |
| Flame Retardant: |
Available |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Conductor Material: |
Copper |
| Insulation Material: |
Silicone Rubber |
| Certification: |
IEC |
| Application: |
High Temperature |
| Range Of Application: |
High Temperature |
| Brand: |
Qiangling |
Product Description

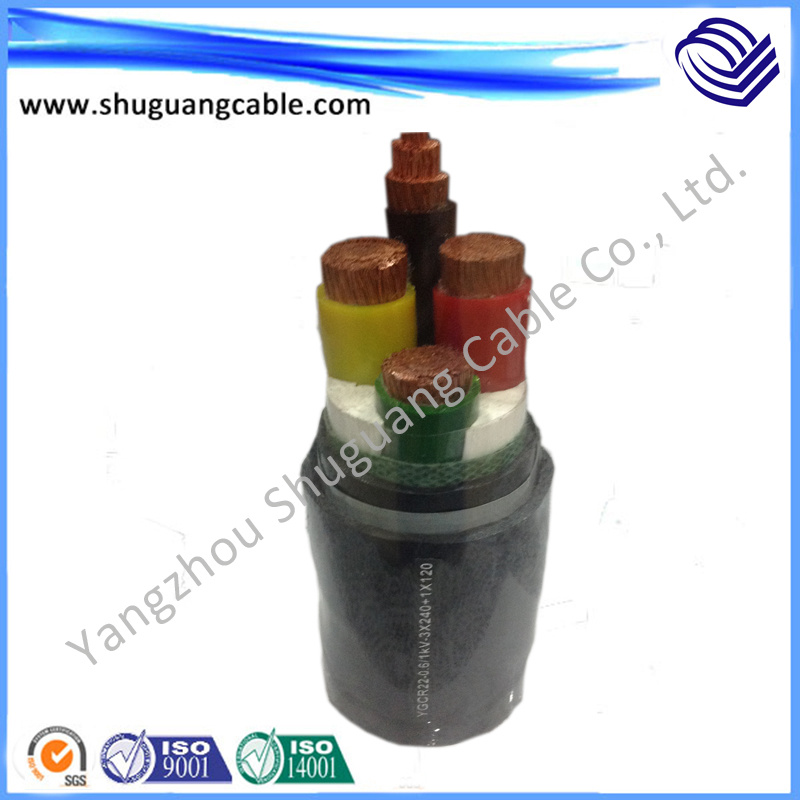

High Quality Silicone Rubber Armored Cable
1. Silicon Rubber(flame retardant)Control soft Cable
1.1 Working Condition
1)A.C rated voltage UO/U: 450/750V
2) Temperature for installing is no lower than -20ºC.
3) Working temperature allowed:
-60ºC~+180ºC. Recommended bending radius is no less than 6 times that of cable OD and 10 times that of cable OD for cable with copper tape shielding.
4)It has good features of ozone aging resistance, thermal aging resistance, ultraviolet resistance and atmo- sphere aging resistance.
5) Good performance of electric insulation, corona resistance and arc resistance.
1.2 Type & Description
| Type | Description | Main application occasion |
(ZR)-KGG |
Control cable with Cu core, silicon rubber insulation and sheath |
To be fixedly laid indoor, in cable furrow or pipe |
(ZR)-KGGP |
Control cable with Cu core, silicon rubber insulation and sheath, braided shielding |
To be fixedly laid indoor, in cable furrow or pipe with demand on shielding |
(ZR)-KGGP2 |
Control cable with Cu core, silicon rubber insulation and sheath, copper tape shielding |
To be fixed laid indoor, in cable furrow or pipe with demand on shielding |
(ZR)-KGGR |
Control soft cable with Cu core, silicon rubber insulation and sheath |
To be laid indoor or in the environment with demand on softness and mobility |
(ZR)-KGGRP |
Control soft cable with Cu core, silicon rubber insulation and sheath, braided shielding |
To be laid indoor or in the environment with demand on softness and shielding |
1.3 Type & Description
| Type | Description | Main application occasion |
(ZR)-KGG |
Control cable with Cu core, silicon rubber insulation and sheath |
To be fixedly laid indoor, in cable furrow or pipe |
(ZR)-KGGP |
Control cable with Cu core, silicon rubber insulation and sheath, braided shielding |
To be fixedly laid indoor, in cable furrow or pipe with demand on shielding |
(ZR)-KGGP2 |
Control cable with Cu core, silicon rubber insulation and sheath, copper tape shielding |
To be fixed laid indoor, in cable furrow or pipe with demand on shielding |
(ZR)-KGGR |
Control soft cable with Cu core, silicon rubber insulation and sheath |
To be laid indoor or in the environment with demand on softness and mobility |
(ZR)-KGGRP |
Control soft cable with Cu core, silicon rubber insulation and sheath, braided shielding |
To be laid indoor or in the environment with demand on softness and shielding |
1.4 Cable Structure
| Type | Rated voltage | Nominal cross section area of conductor |
| 0.5 | 0.75 | 1.0 | 1.5 | 2.5 | 4 | 6 | 10 |
| core number |
| KGG,KGGP,KGGP2 |
450/750 | 2~61 | 2~14 |
2~10 |
| KGGR,KGGRP | 4~61 | 4~48 | 2~14 |
| Note: recommended series of core number: core of 2,3,4,5,7,8,10,12,14,16,19,24,27,30,37,44,48,52,61. We also produce cable with 61 cores or lower. |
2 Fluorine Plastic Insulated Power Cable
2.1 Performance of Usage
1) Rated voltage UO/U: 0.6/1kV
2) Max.working temperature allowed: 200ºC for cable with fluoroplastic insulation and sheath, 105ºC for cable with fluoroplastic insulation,105ºC heat resistanc and PVC sheath, and 180ºC for cable with fluo- roplastic insulation and silicon rubber sheath.
3) Max temperature of cable conductor is no more than 250ºC during short circuit (The longest lasting time is no more than 5s).
4) Temperature for installation is no less than -15ºC. 5: Bending radius of cable as follows:
It is no less than 20 times that of cable outer diam- eter for cable with single core
It is no less than 15 times that of cable outer diameter for cable with 3 cores
6: Power cable with fluoroplastic insulation and sheath has good features of chemical corrosion resis- tance, high temperature resistance and flame retardance.
2.2 Type and Description
| Type | Description |
| FF | High temperature resistant power cable with F insulation and sheath |
| FF22 | High temperature resistant power cable with F insulation and sheath, steel tape armoring |
| (ZR)-FG | High temperature resistant power cable with F insulation ( flame retardant)and silicon rubber sheath |
(ZR)-FG22 | High temperature resistant power cable with F insulation ( flame retardant), silicon rubber sheath and steel tape armoring |
(ZR)-FV | High temperature resistant power cable with F insulation ( flame retardant), 105ºC heat resistance and PVC sheath |
(ZR)-FV22 | High temperature resistant power cable with F insulation ( flame retardant), 105ºC heat resistance , PVC sheath and steel tape armoring |
2.3 Specification
Type |
Core number | Nominal cross section area |
FF |
1,2,3,4,5,
3+2,3+1 |
1.5~95 |
FF22 |
2.5~70 |
(ZR)-FG, (ZR)-FV |
1.5~240 |
(ZR)-FG22,(ZR)-FV22 |
2.5~240 |
2.4 Technical Parameter
1) DC resistance of conductor at 20ºC shall meet the requirement of GB/T3956 standard.
2) Cable shall bear AC voltage test of 3500V for 5min without puncture of insulation.
3. Power Cable with Silicon Rubber Insulation(flame retardant)
3.1 Performance for Usage
1) Rated voltage UO/U:600/1000V
2) Working temperature allowed: -60ºC~+180ºC.
3) Max temperature of cable conductor is no more than 250ºC during short circuit(The longest lasting time is no more than 5s.)
4) Temperature for installing is no less than -20ºC. 5: Bending radius of cable as follows:
It is no less than 15 times that of cable outer diameter for cable with single core
It is no less than 12 times that of cable outer diameter for cable with three cores
3.2 Type & Description
| Type | Description |
(ZR)-HGG |
(flame retardant)power soft cable with silicon rubber insulation and sheath |
(ZR)-HGGP |
(flame retardant)power soft cable with silicon rubber insulation and sheath, copper wire braided shielding |
(ZR)-HGGP2 |
(flame retardant)power soft cable with silicon rubber insulation and sheath, copper tape shielding |
(ZR)-HGV |
(flame retardant)power soft cable with silicon rubber insulation and butadiene PVC sheath |
(ZR)-HGV P | (flame retardant)power soft cable with silicon rubber insulation, butadiene PVC sheath, copper wire braided shielding |
(ZR)-HGV 22 |
(flame retardant)power soft cable with silicon rubber insulation, butadiene PVC sheath, steel tape armor |
(ZR)-HGV P2 | (flame retardant)power soft cable with silicon rubber insulation, butadiene PVC sheath, copper tape wrapped shielding |
3.3 Specification
| Type | Core number | Nominal cross section area |
| (ZR)-HGG |
1,2,3,4,5,
3+2,3+1 |
1.5~500 for single core 1.5~240 for multi-core |
| (ZR)-HGGP |
| (ZR)-HGGP2 |
| (ZR)-HGV |
| (ZR)-HGV P |
| (ZR)-HGV 22 |
| (ZR)-HGV P2 |
3.4 Technical parameter
1) DC resistance of finished cable conductor at 20ºC shall meet the requirement of GB/T3956 standard. Con- ductive core DC resistance of finished cable is no more than 0.0184Ω for cable with cross section 1mm2 under the condition that cable length is 1m and temperature is 20ºC.
2) Insulated resistance of finished cable insulated conductor will be no less than 50MΩ for cable with con- ductive core cross section 50mm2 or lower and 35 MΩfor cable with conductive core cross section 70~185mm2 under the condition that cable length is 1km and tempera- ture is 20ºC.
3) Finished cable shall bear A.C voltage test of 3500V under power frequency for 5 minutes without puncture of insulation.
4. Silicon Rubber (flame retardant) Flat Power Cable
4.1 Performance for Usage
1) Rated voltage UO/U:0.6/1kV
2) Working temperature allowed:
-60ºC~+180ºC for cable with silicon rubber insulation;
-60ºC~+200ºC for cable with fluoroplastics insulation
3) Max temperature of cable conductor is no more than 250ºC during short circuit(the longest lasting time is no more than 5s).
4)Temperature for installing is no lower than -20ºC. 5: Min. bending radius of cable is 10 times that of
small border length of cable.
4.2 Type and Description
Type | Description |
| (ZR)-YGCB | (flame retardant)Flat power cable with silicon rubber insulation and sheath |
| (ZR)-YF46GRB | (flame retardant)Flat power cable with F insulation and silicon rubber sheath |
4.3 Main Performance Parameter
Cross section area |
0.75 |
1 |
1.5 |
2.5 |
4 |
6 |
10 |
16 |
25 |
35 |
50 |
70 |
95 |
120 |
150 |
185 |
Romax
(Ω/km) |
26.0 |
19.5 |
13.3 |
7.98 |
4.95 |
3.30 |
1.91 |
1.21 |
0.780 |
0.551 |
0.386 |
0.272 |
0.206 |
0.161 |
0.129 |
0.106 |
| Nominal cross section area | Conductor diameter | Insulation thickness | Sheath
thickness | Space | Cable O D | Weight(kg) |
| 4×1 | 1. 2 9 | 0 . 8 | 1. 6 | 1 | 17. 76×6.0 9 | 2 25 |
| 6×1 | 1. 2 9 | 0 . 8 | 1. 6 | 1 | 25 . 5 4×6.0 9 | 3.8 |
| 8×1 | 1. 2 9 | 0 . 8 | 1. 6 | 1 | 3 3 . 32×3.0 9 | 3 6 0 |
| 4×1. 5 | 1. 5 6 | 1 | 1. 6 | 1 | 2 0 . 4 4×6. 76 | 291 |
| 6×1.5 | 1.5 6 | 1 | 1. 6 | 1 | 29 .5 6×6. 76 | 3 6 0 |
| 8×1. 5 | 1. 5 6 | 1 | 1. 6 | 1 | 3 8 . 6 8×6. 76 | 4 6 9 |
| 4×2.5 | 2. 0 5 | 1. 4 | 1. 6 | 1.5 | 27.1×8 . 0 5 | 333 |
| 6×2.5 | 2. 0 5 | 1. 4 | 1. 6 | 1.5 | 39 .8×8. 0 5 | 5 3 6 |
| 8×2.5 | 2. 0 5 | 1. 4 | 1. 6 | 1.5 | 52.5×8. 0 5 | 6 0 8 |
| 4×4 | 2 . 6 0 | 1. 8 | 1. 7 | 1. 7 | 3 3 . 3×9. 6 | 4 57 |
| 6×4 | 2 . 6 0 | 1. 8 | 1. 7 | 1. 7 | 4 9 .1×9. 6 | 79 0 |
| 4×6 | 3 .15 | 2 | 1. 9 | 2 . 0 | 3 8 . 4×11. 5 | 615 |
| 6×6 | 3 .15 | 2 | 1. 9 | 2 . 0 | 5 6 . 7×11. 5 | 10 9 8 |
| 3×10 | 4 . 4 | 2 . 5 | 2 . 4 | 2 . 4 | 37. 8×14 . 2 | 70 2 |
| 6×10 | 4 . 4 | 2 . 5 | 2 . 4 | 2 . 4 | 73 . 2×14 . 2 | 1428 |
| 3×25 | 6 .81 | 2.8 | 2 . 7 | 2.8 | 4 8. 2 3×17. 81 | 16 4 5 |
| 6×25 | 6 . 81 | 2.8 | 2 . 7 | 2.8 | 9 3 . 8 6×17. 81 | 3 325 |
| 4×35 | 7. 9 | 3 | 3 | 3 | 70 . 6×19 . 9 | 2181 |
| 3×50 | 9 . 2 | 3 . 2 | 3 .1 | 3 . 4 | 5 9 . 8×21. 8 | 2 6 81 |
| 4×50 | 9 . 2 | 3 . 2 | 3 .1 | 3 . 4 | 78 . 8×21. 8 | 315 8 |
| 3×70 | 12 . 6 | 3 . 4 | 3 . 3 | 3 . 8 | 72 . 4×26 | 2878 |
| 3×12 0 | 15 . 4 | 3 . 8 | 3 . 07 | 4. 2 | 8 4. 8×30 . 4 | 5157 |
| 3×15 0 | 16 . 4 | 4 | 4 .1 | 4 . 4 | 9 0 . 2×32 .6 | 6171 |
