Prod Model: |
HC000005 |
Board Thickness: |
1.6mm |
Surface Finihsing: |
HASL Lead Free |
Lead Time: |
7 Working Days |
Certificate: |
UL, RoHS and ISO9001 |
PCB Testing: |
E-Testing; Flying Probe Testing |
Mask Ink Color: |
White |
Color: |
Green |
Number Of Layers: |
Sigle Side |
Copper Thickness: |
1oz |
Condition: |
Original Made |
Type: |
Rigid Circuit Board |
Dielectric: |
FR-4 |
Material: |
Fiberglass Epoxy |
Flame Retardant Properties: |
V0 |
Processing Technology: |
HASL |
Brand: |
Ucreate PCB |
Product Description

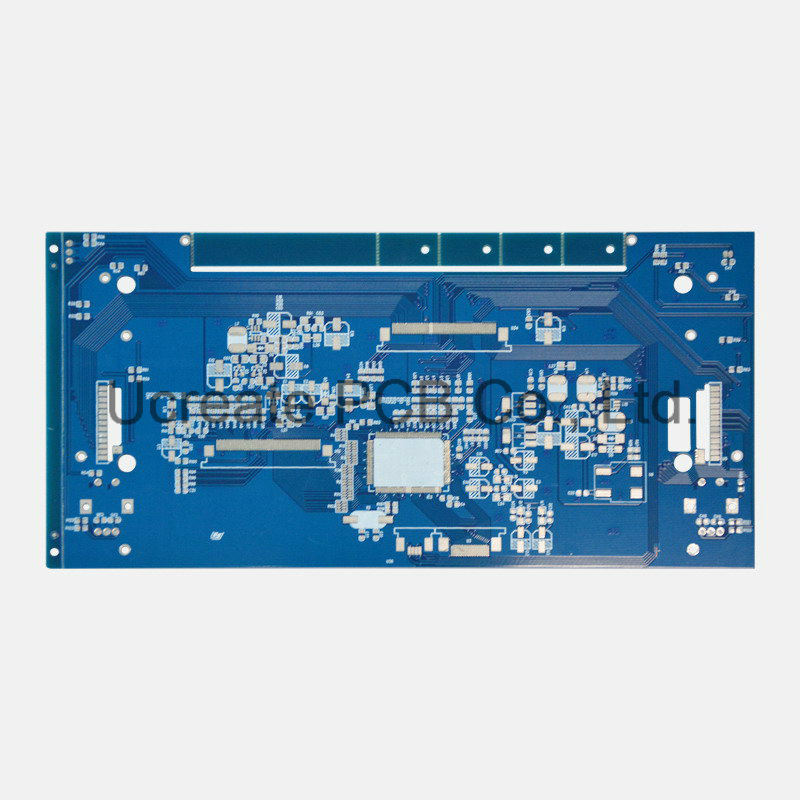

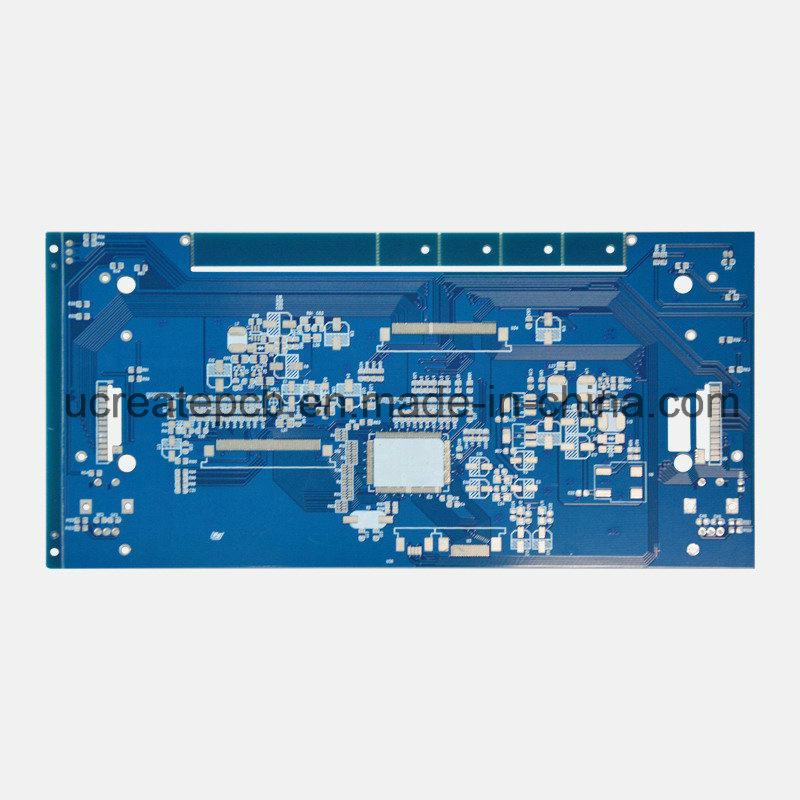

High Quality Single Side PCB HASL Rigid Printed Circuit Board Manufacturer ChinaProduct Description:
*Layers: Single Side
*Base material: FR-4
*Thickness: 1.6mm
*Solder mask: Green (Black, red, yellow, white)
*Min. Line width: 0.075mm
*Min. Line space: 0.075mm
*Min. Hole diameter: 0.1mm
*Surface treatment: Hasl Lead Free (OSP. Lead free HASL)
*Blind/buried via holes: OK
*lead time: Seven to ten days (HDI: About 30 days)
We can also make quick pcb. As customers plates coped from the PCB, PCB design, prototype production, production, processing, and other SMT one-stop service.
Single-double sides pcb delivery time: 12-24 hours. 4 layer- 8 layer pcb delivery time: 48-96 hours

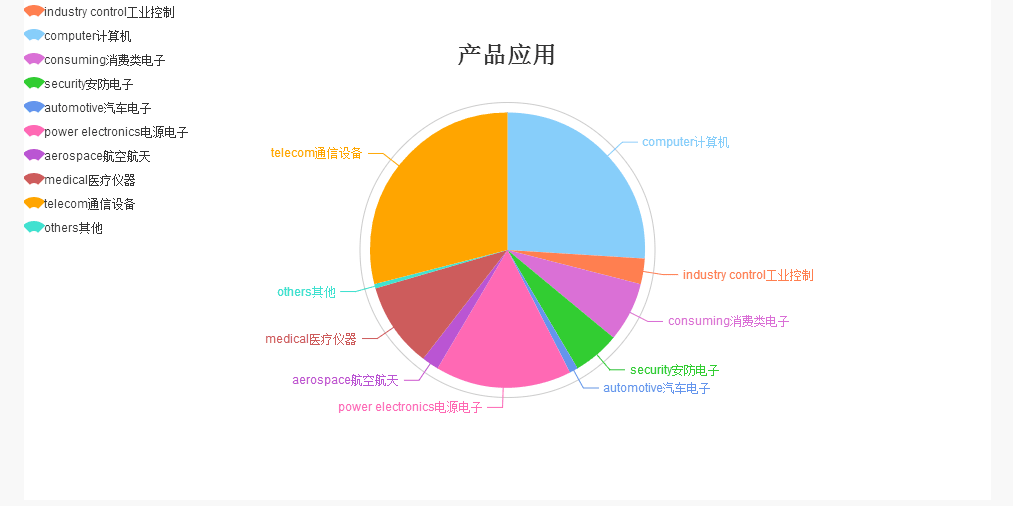

We focus on various pcb needs, such as LED light, customers electronics, Industrial control, Automative and other electronics, dedicated to make every customer satisfied.1.Products Application

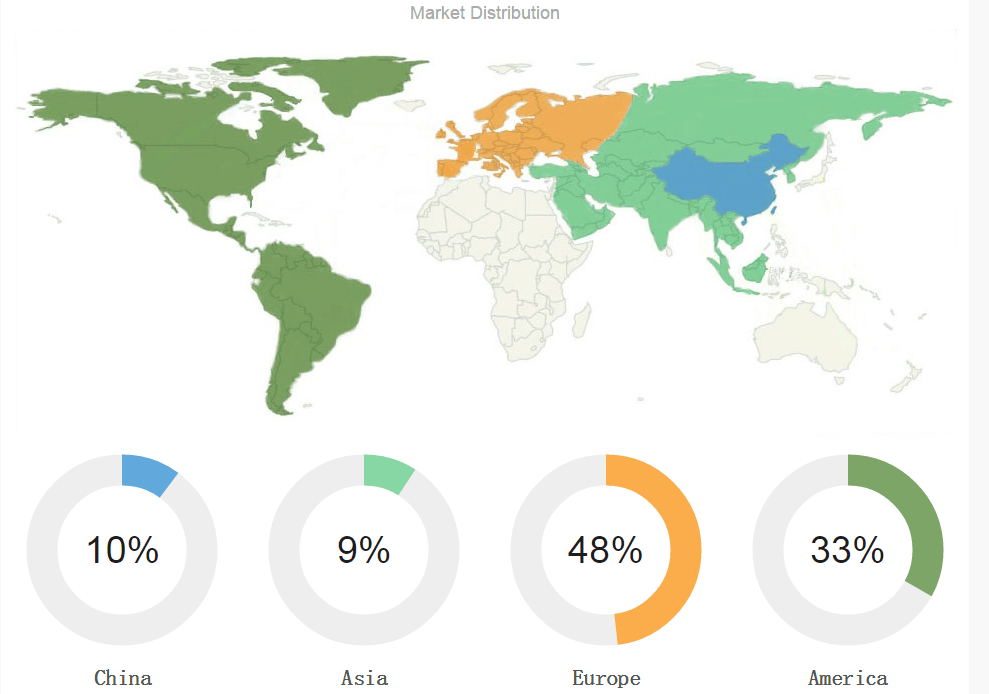

2. Market Distribution 3.Technical Capabilities Files | Gerber, Protel, Powerpcb, Autocad, Cam350, etc |
Material | FR-4, Hi-Tg FR-4, Lead free Materials (RoHS Compliant) , CEM-3, CEM-1, Aluminium, High frequency Material (Rogers, Teflon, Taconic) |
Layer No. | 1 - 30 Layers |
Board thickness | 0.0075"(0.2mm)-0.125"(3.2mm) |
Board Thickness Tolerance | ±10% |
Copper thickness | 0.5OZ - 4OZ |
Impedance Control | ±10% |
Warpage | 0.075%-1.5% |
Peelable | 0.012"(0.3mm)-0.02'(0.5mm) |
Min Trace Width (a) | 0.005"(0.125mm) |
Min Space Width (b) | 0.005"(0.125mm) |
Min Annular Ring | 0.005"(0.125mm) |
SMD Pitch (a) | 0.012"(0.3mm) |
pcb with green solder mask and LF-FREE surface finishing BGA Pitch (b) | 0.027"(0.675mm) |
Regesiter torlerance | 0.05mm |
Min Solder Mask Dam (a) | 0.005"(0.125mm) |
Soldermask Clearance (b) | 0.005"(0.125mm) |
Min SMT Pad spacing (c) | 0.004"(0.1mm) |
Solder Mask Thickness | 0.0007"(0.018mm) |
Hole size | 0.01"(0.25mm)-- 0.257"(6.5mm) |
Hole Size Tol (+/-) | ±0.003"(±0.0762mm) |
Aspect Ratio | 6:01 |
Hole Registration | 0.004"(0.1mm) |
HASL | 2.5um |
Lead free HASL | 2.5um |
Immersion Gold | Nickel 3-7um Au:1-3u'' |
OSP | 0.2-0.5um |
Panel Outline Tol (+/-) | ±0.004''(±0.1mm) |
Beveling | 30°45° |
V-cut | 15° 30° 45° 60° |
Surface finish | HAL, HASL Lead Free, Immersion gold, Gold plating, Gold finger, immersion silver, immersion Tin, OSP, Carbon ink, |
Certificate | ROHS ISO9001:2000 TS16949 SGS UL |
Special requirements | Buried and blind vias, Impedance control, via plug, BGA soldering and gold finger |

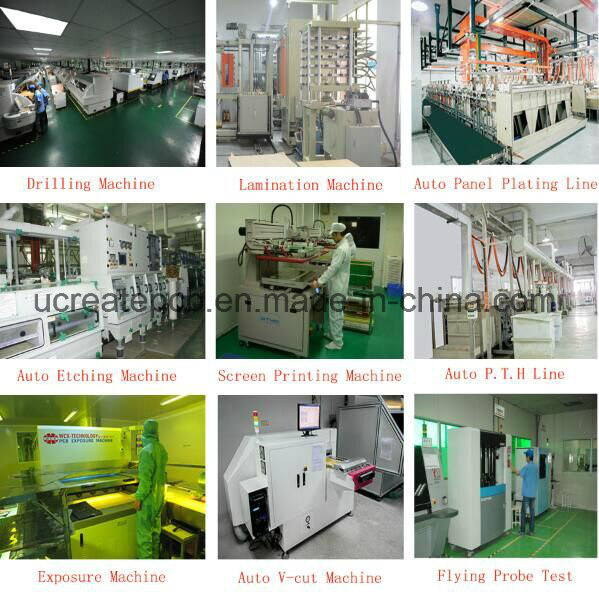

4.Products Equipment
Established in 2004, Ucreate PCB Co., Ltd is a professional manufacturing enterprise majoring in high end and multi-layer Printed Circuit Board.
Along with more than 10 years' development, Ucreate has settled its factories both in Shenzhen and Huizhou city, covering facility area 12000 Square meters, with more than 800 employees, among them, 150 with highly professional who are no less than 10 years expert in PCB field. Now we are reaching a monthly capability of 30000 Square meters.
Our main products range from Multilayer PCB, High frequency PCB, Metal base PCB, Hi-Tg heavy copper foil PCB and Mixed Dielectric base PCB, HDI, rigid-flex PCB, and many other customized PCB with special performance which are widely used in Communication, power supply, computer, consumer electronics, industrial control, medical device, Aeronautics and Astronautics high technology field and spread over America, Europe and some Asia Districts, achieving their satisfication.
Ucreate has been certificated with ISO9001, ISO14001, UL from US and Canada, all of our products are with RoHS certification.
Under the mission " high quality, exact delivery, customers' satisfactions, continuous development, Common innovation ", We believe Ucreate will develop better and better with your participation.
