High quality Slide-Style Spst DIP Switch for Electronic Equipment

Name: High quality Slide-Style Spst DIP Switch for Electronic Equipment
Brand: all-electronics-online.com
SKU: 742063805
Availability: InStock
Rating: 4.5 (70 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

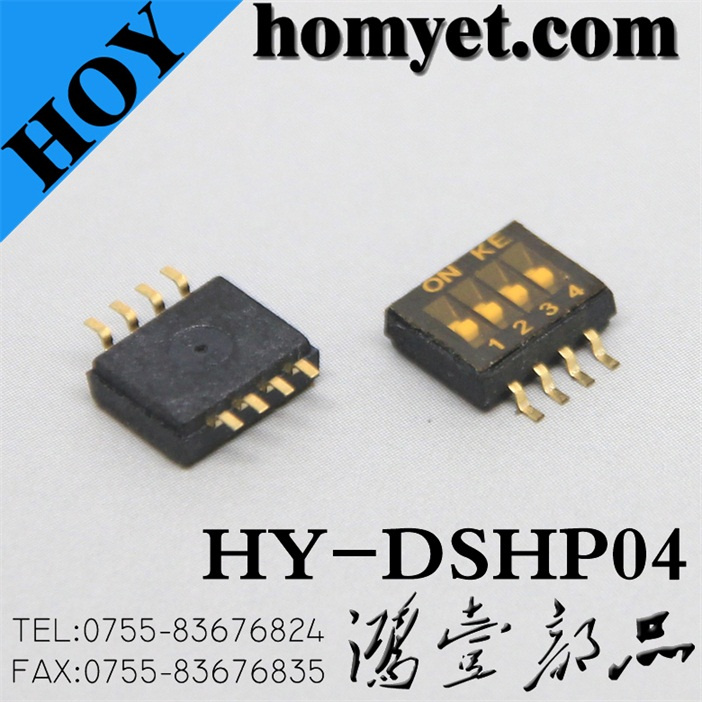

Prod Model:	HY-DSHP04
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

High Qulity slide-style SPST DIP Switch for Electronic Equipment
-----Good Performance&Long life&Install easily
Customizing the height&operating force&Button shape

Specification:

Material:
1. Cover: UL94V0 Black
2. Base: UL94V0 Black
3. Actuator: UL94V0 White
4. Movable: Copper Alloy, Gold/Tin
5. Terminal: Brass, Gold/Tin

Electrical Performance:
They can operate all types of electronic equipment such as the computer, telephone, PDA, DVD digital camera, audio equipment, instrument and meter equipment, autoimmunization equipments control etc.

Contact Rating
Switching	25mA at 24VDC
Non-Switching	100mA at 50VDC
Contact Resistance
Initial	50mΩ Max
After Life	100mΩ Max
*Insulation Resistance*	100mΩ Min, 60 set at 500VDC
Dielectric Strength	500VAC for 60 seconds
Switch Capacitance	5pF Max at 1MHZ
Operation Temperature	-30ºC~+85ºC

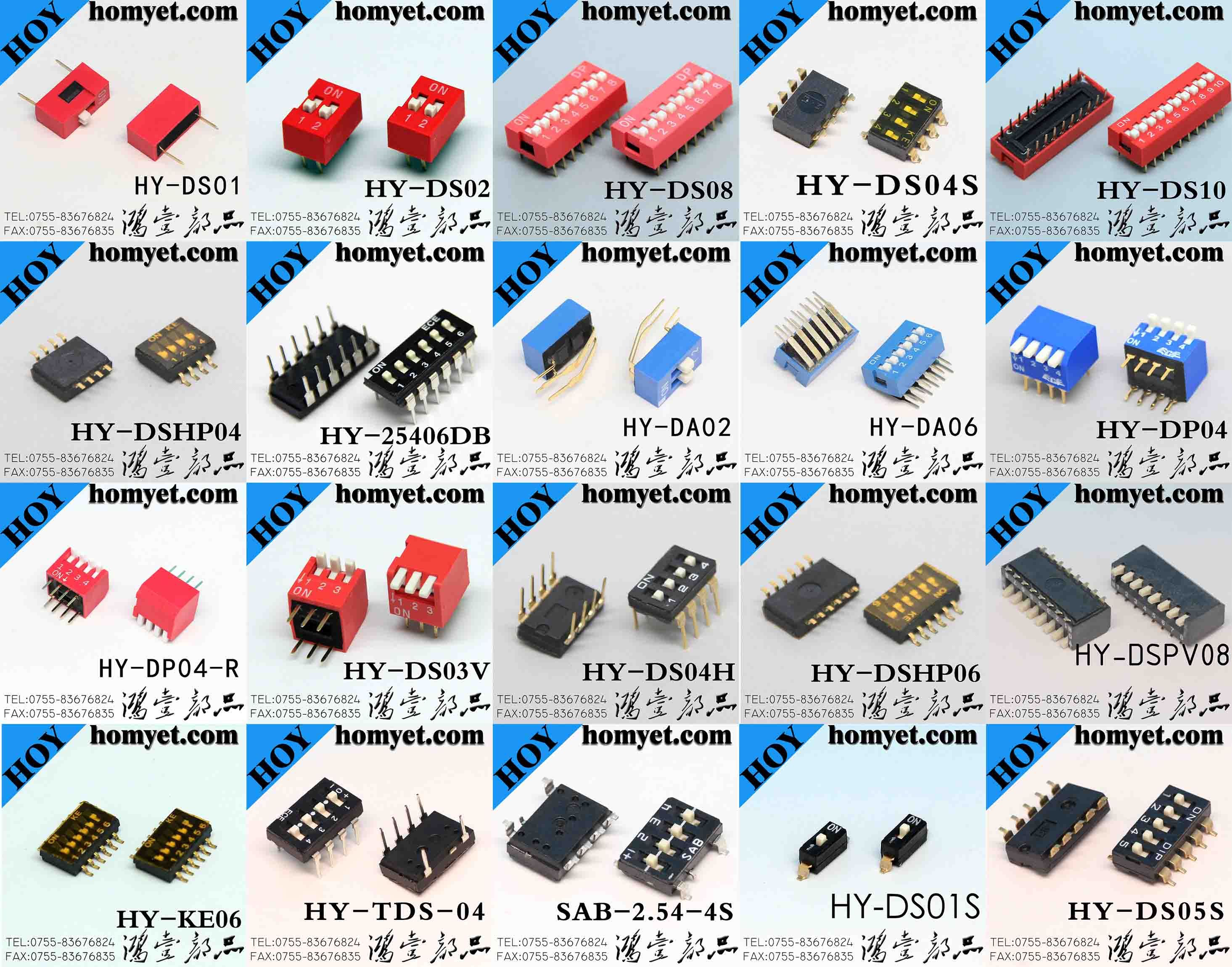

Product Detail Show:

Application Range:
1. Audio / Video product: MP3, MP4, DVD, stereo system
2. Digital devices: digital camera, digital video
3. Remote control: Vehicle, rolling door, Home security products
4. Communication products: mobiles, car telephone, telephone, building equipment, PDA etc.
5.Household Appliances: TV, microwave oven, electric cooker, electric hair drier, electronic scale, Body Fat &Water Scale, Kitchen Scale.
6. Security Products: Videophone, Monitor etc.
7. Toy: electronic toy etc.
8. Computer products: Camera, recording pen etc.
9. Fitness equipment: running machine, massage chair, timer etc.
10. Medical Equipment: sphygmomanometer, thermometer, the hospital call system and other similar products.

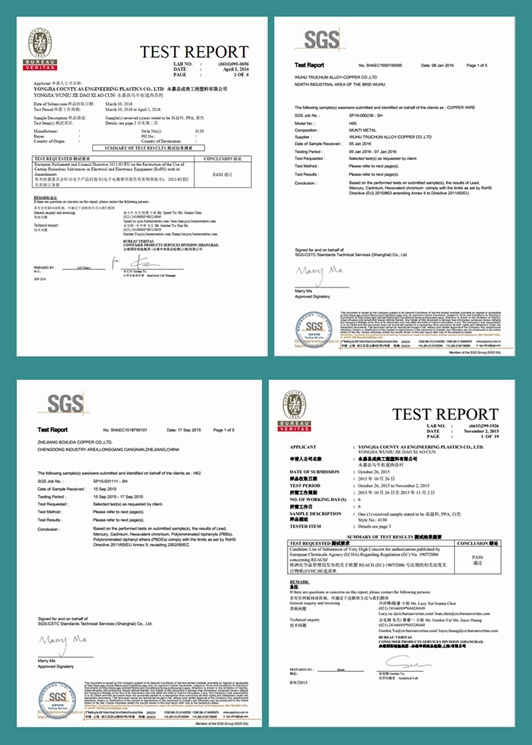

Products Certification:

Payment&Shippment:

Packing&Contact:

Related Products:

Shenzhen Homyet Parts Electronics Co.,Ltd is committed to electronic components parts development,design,production and sales of professional firms. We stick to innovation and quality.ln order to adaptation the requirements of market,we open up constantly,innovation,so we development a series of new product successful and push in market.Our main products ane Tact switch,Phone jack,Toggle switch,power jack, card and connector etc.Our products are widely used in digital fashion,communications,
Multimedia, digital home and other related fields. The company has perfect quality management ,system,Experienced professional andtechnical personnel.

The company keep in line with purpose of"quality,efficiency,integrity
Service",we Conscientiously sum up experiences,Listen carefully to customer feedback and suggestions,Constantly improving and upgrading servies to users.ln the days,the company will go on cooperation with new and old customers to create brilliant together.
