| Prod Model: |
PV |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Heating |
| Conductor Material: |
Copper |
| Insulation Material: |
XLPE |
| Certification: |
RoHS |
| Range Of Application: |
Photovoltaic Power Station |
| Brand: |
Sansen |
Product Description

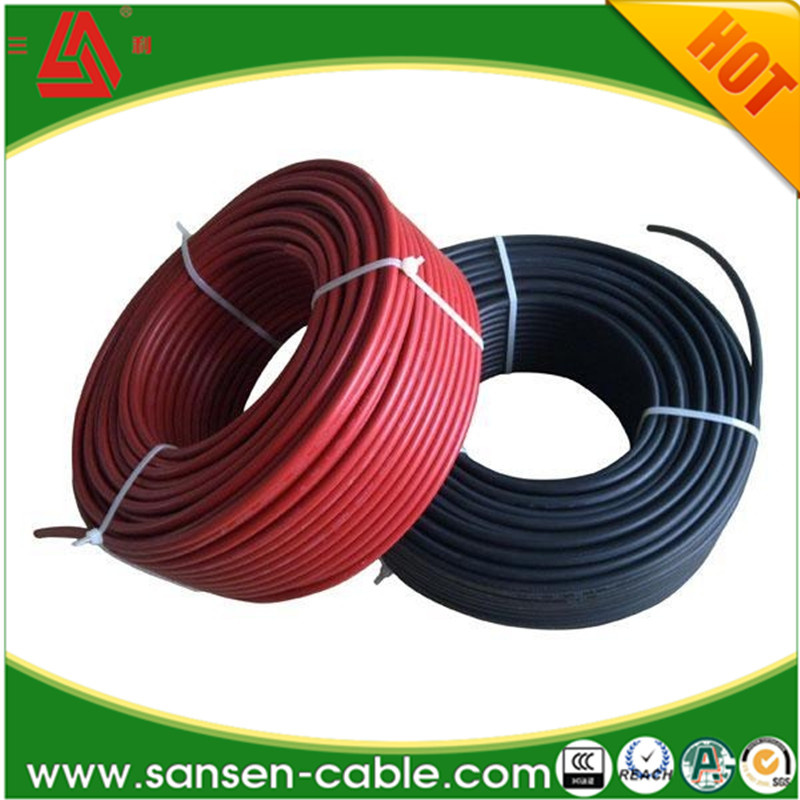

Application:Double insulation,electron-beam cross linked cables for photovotaic power station.
Construction
1.Conductor:Tinned Copper, according to the VDE 0295/IEC 60228, Class 5.
2.Insulation: Polyolefin copolymer electron-beam cross-linked.
3.Outer Sheath: Polyolefin copolymer electron-beam cross-linked.
4.Sheath Color: Black/Red/Blue or as per customer's request.
Technical Specification:
1.Nominal Voltage:U0/U=600/1000V AC, 1000/1800V DC ;
2.Test Voltage:6500V,50Hz,5Min.
3.Temperature Rating:-45ºC upto+125ºC, -40ºF upto+257ºF, Ambient temperature:25years(TUV) -40ºC upto +90ºC, -40ºF upto +194ºF.
4. Max.Short circuit temperature:280ºC, +536ºF.
5.Bending Radius:Fixed installation>4X Occasionally moved>5X
Material Properties/Standards:
1.Fire-resistant performance:IEC60332-1.
2.Smoke emission:IEC61034;EN50268-2
3.Low fire load:DIN51900
4.Approvals:TUV2PfG 1169/08.2007 PV1-F.
5. Application Standards:UNE211 23;UNE20.460-5-52, UTE C 32-502.
Dimensions&Parameters for XLPE Insulated PV Solar Electric Power Cable
| Construction | Conductor construction. | Conductor | Outer | Resistance Max. | Current Carring Capacity |
| nxmm2 | n/m | mm | mm | Ω/Km | A |
| 1X1.5 | 30/0.25 | 1.58 | 4.90 | 13.30 | 30 |
| 1x2.5 | 50/0.25 | 2.02 | 5.45 | 7.98 | 41 |
| 1x4 | 56/0.3 | 2.30 | 6.10 | 4.75 | 55 |
| 1x6 | 84/0.3 | 3.42 | 7.20 | 3.39 | 70 |
| 1x10.0 | 142/0.3 | 4.56 | 9.00 | 1.95 | 98 |
| 1x16.0 | 228/0.3 | 5.60 | 10.20 | 1.24 | 132 |
| 1x25.0 | 361/0.3 | 6.95 | 12.00 | 0.795 | 176 |
| 1x35.0 | 525/0.3 | 8.74 | 13.80 | 0.565 | 218 |
| 1x50.0 | 720/0.3 | 9.20 | 14.80 | 0.393 | 280 |
| 1x70.0 | 988/0.3 | 11.00 | 16.90 | 0.277 | 350 |
| 1x95.0 | 1349/0.3 | 12.50 | 18.70 | 0.21 | 410 |
| 1x120.0 | 1691/0.3 | 14.20 | 20.70 | 0.164 | 480 |
Remarks:
1.The Current-carring capacity is under the situation of laying the single cable in the air.
2.The Product's detailed description please refer to the specification for approval.
Advantages of XLPE Insulated PV Solar Electric Power Cable
1.Electron-beam cross-linked compounds.
2.UV,ozone and hydrolysis resistant.
3.High temperature resistant,the materials does not melt or flow.
4.Good cold Flexibility.
5.Very long service life>25years at 90oC.
6.Compatible to all popular connectors.
FAQ:
Q1. What kind of products can your company supply?
A: We specialize in supplying network cable, coaxial cable, power cable ,control cable , telephone cable, speaker cable and ect.
Q2. What's your MOQ?
A: The MOQ of long meter cable is 50 km, or we can negociate.
Q3. What's your delivery time?
A: Our delivery time is about 15-20 days after comfriming the deposite, it is based on the quantity of the order.
Q4. What are your payment terms?
A: Normally, we accept T/T in advance, as for other payment term, we can negociate with you.
Q5. What's your trade term ?
A: We can accept FOB, CIF, EXW term.
Q6. What's your conventional packing ?
A: 100m/plastic or wooden drum, 305m/wooden drum or color box. However, we can produce according your demand.
Q7. Can your factory customize cables based on clients' samples or data sheet ?
A: Yes, we can.
Q8. Can you offer me a free sample?
A: Yes, we do, that is a start of business I think, and you will only pay the cost of delivery, which we will return it to you when you put the order.
Jason Zhang | Sales Manager
Huzhou Sansen Cable Co.,Ltd.
Tel: + 86-572-8352155
Fax: +86-572-8182173
Mob: +86-15088322304
Gaolin Road, Xinshi Town, Deqing County, Zhejiang Province, China
http://www.sansen-cable.com
We are specialized in manufacturing of cables for more than 20 years. Can product Building cable, Electrical equipment cable, Automobile cable, Control cable, Coaxial cable, Network communication cable, Audio cable, Monitor cable and the like. We also offer OEM and ODM services.

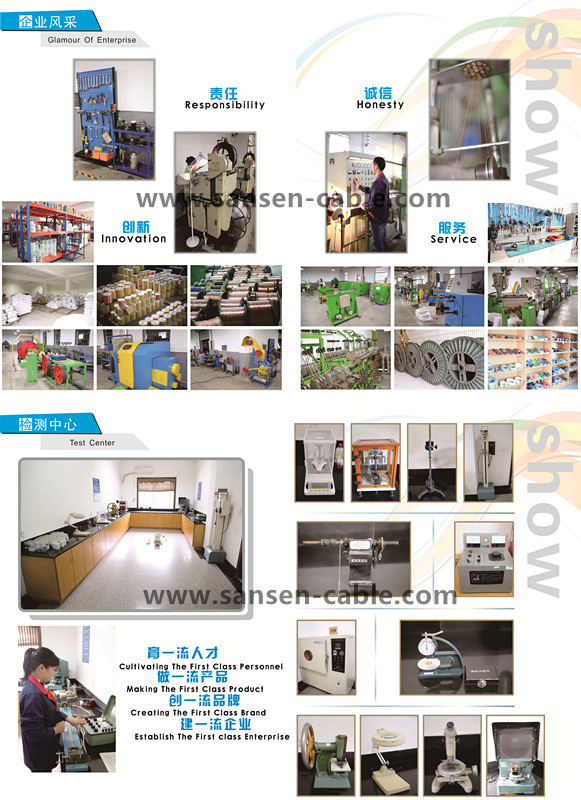

Located in Huzhou, Zhejiang Province, where is between Shanghai and Hangzhou, we enjoy convenient transportation, thus we can ship goods in Shanghai Port as well as Ningbo Port. Our factory totally covers an area of 3, 000 square meters. High skilled staffs and technical engineers have been dedicated to cable techniques since our company was founded.
