High Quality Solar Usage and 12V Voltage 24V 100ah Lithium Battery
Price: |
Negotiable/Piece |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,Western Union |
Prod Model: |
MK-N01-0104-03 |
Certificate: |
Un38.3/MSDS/UL/Ce/RoHS |
Voltage: |
3.2V-400V(Increase Voltage in Series) |
Case: |
Blue Film or Metal Case |
Company Type: |
Reputed Factory |
Lifespan: |
Over 2000cycles |
Capacity: |
12.5ah-600ah |
Warranty: |
1 Years |
Battery Type: |
Lithium Ion Battery Pack Ncm |
Protection: |
PCB/PCM/BMS |
Type: |
Lithium-Ion Battery Pack |
Connection Mode: |
Series and Parallel |
Standard Voltage: |
3.2V 3.6V 3.7V |
Usage: |
Solar System, Golf Cart, Wheelchair |
Product Description
High quality solar Usage and 12v Voltage 24V 100Ah Lithium BatteryWelcome to MelsenHello. This is Bela from Melsen. Melsen is a pioneer in the lithium battery market and a unique lithium battery solution company. LiFePo4 and NMC(Li(NiCoMn)O2) are the major material Lithium polymer battery modules in parallel or in series, can be used in electric vehicle, E-bike, UPS, energy storage system, telecommunication base station, E-scooter, E-tools, unmanned airplane, golf cart, fork lift, cleaning car, electric wheelchair, etc. Now there are many different battery type in the market, some have 500cyles, some 1000, some 2000cycles or more.Battery detailsScooter battery
♦ Long-run Cost: could work at 60°c, with long life 5-10 years.
♦ Smaller Space: 1/3 of the lead acid battery.
♦ Light weight: lifepo4 energy density >140wh/kg, NMC energy density > 180wh/kg

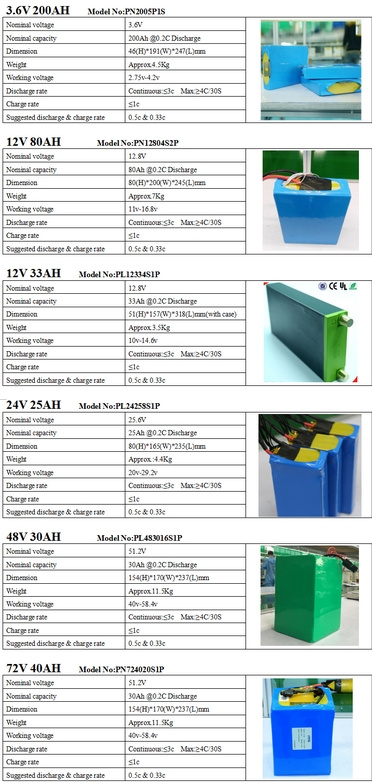

Battery Cell ShowLi-ion battery ---Big cell capacity, good performance
Two type: Tab from one side or two sideTell us your requirements,we will find the suitable li-ion battery for you.Model NO. | Capacity | Voltage | Dimension(mm) | Weight | Discharge & Charge |
F9088178 | 12.5Ah | 3.2V | 9.0*88.5*179.5 | 9.0*88.5*179.5 | 37.5&12.5 A |
T8088178 | 12.5Ah | 3.6V | 8.0*88.5*179.5 | 260±5.0g | 37.5&12.5 A |
T43188286 | T43188286 | 3.6V | 4.3*188.5*236.5 | 400±5.0g | 60&20 A |
F90137232 | 25Ah | 3.2V | 9.0*137.5*232.5 | 550±5.0g | 75&25 A |
F90160227 | 30Ah | 3.2V | 9.0*160.5*228.5 | 640±5.0g | 90&30 A |
T65188286 | 30Ah | 3.6V | 6.5*188.5*236.5 | 600±5.0g | 90&30 A |
F95145265 | 33Ah | 3.2V | 9.5*145.5*266.5 | 700±5.0g | 99&33 A |
T85188286 | 40Ah | 3.6V | 8.5*188.5*236.5 | 790±5.0g | 120&40 A |
T85190286 | 50Ah | 3.6V | 8.5*190*236.5 | 900±5.0g | 150&50 A |

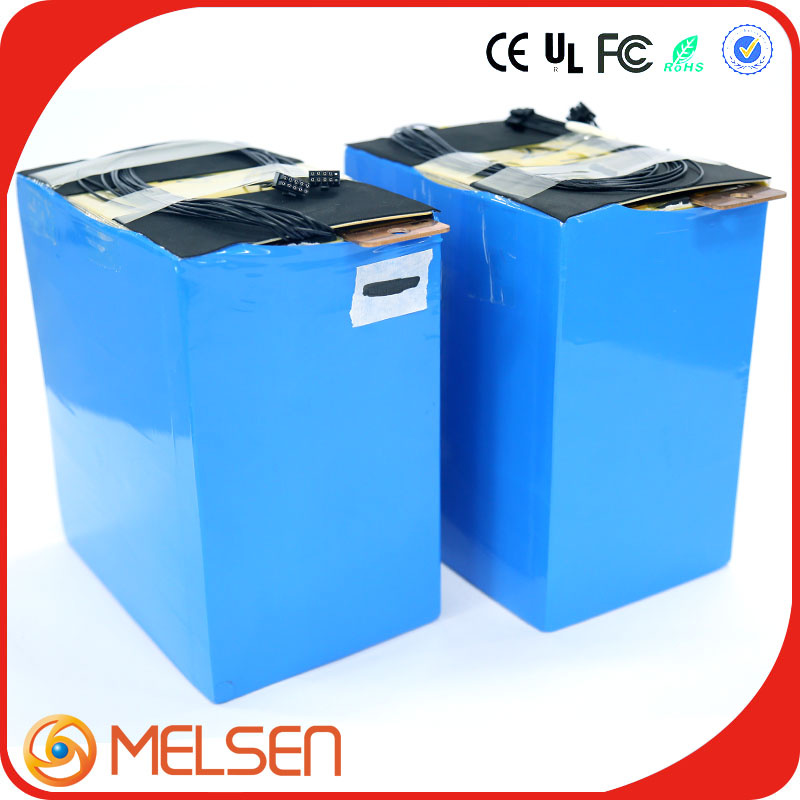

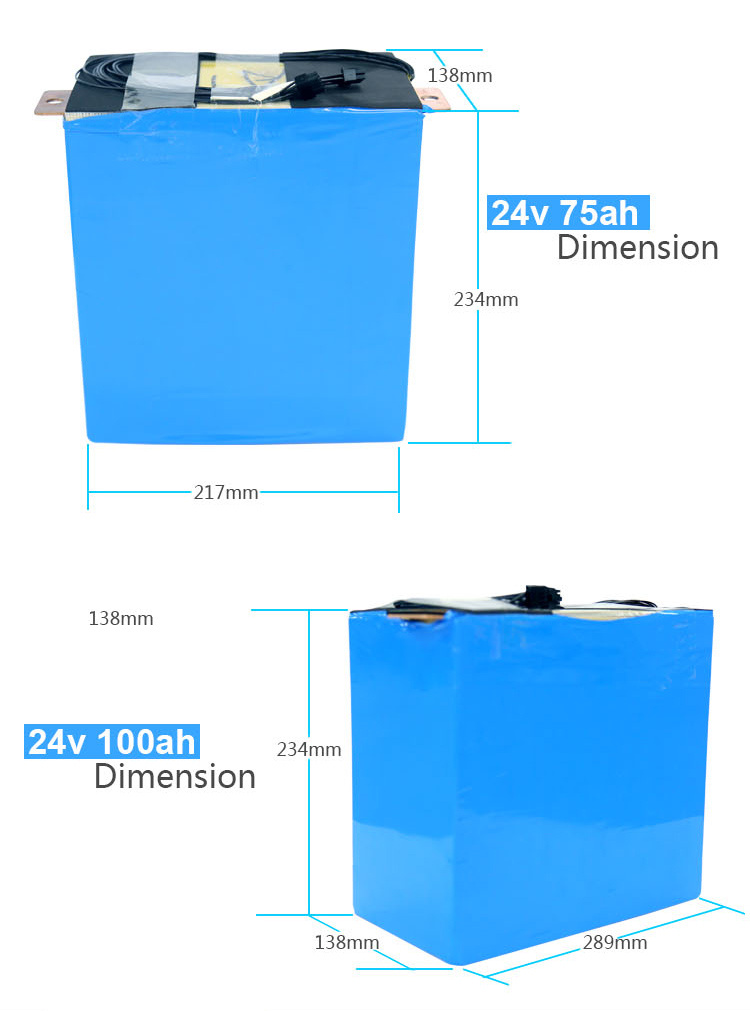

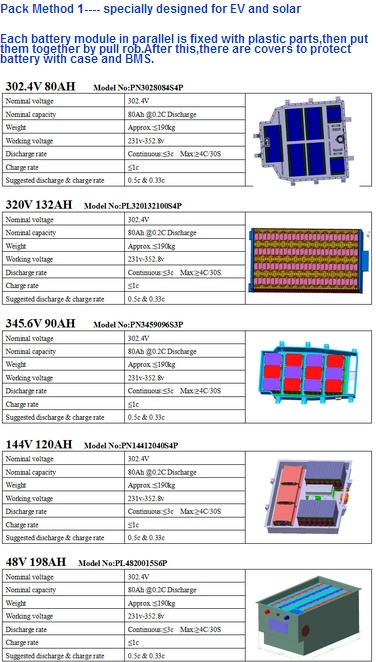

Finished Packs
Pack Method 2 -- light weight
Those battery cells are wielding with laser. Then they are fixed by yellow epoxy board insulating adhesive in all six surfaces.And then wrapped with blue film.
Product Application♦ Engine Starting Battery
♦ Commercial Bus and Transit: E-car, E-bus, Golf troller/car, E-bike, Scooter, RV, AGV, Marine, Tourist car, Caravan, Wheel chair,E-truck, E-sweeper, Floor cleaner, E-walker etc.
♦ Intellectual Robots

Melsen power, the world motive power.
Melsen Power Technology Co, Ltd. Is a professional manufacturer engaging in research, development, production, marketing and service of lithium ion pouch battery cell, battery pack and battery management system. Those products are widely used in EV, HEV, UPS, solar and wind system and remote control products.
Located in Hunan National Economic Development Zone in 2012, Melsen power has registered capital of RMB 50 million and been proved by government to be a national high tech enterprise.
Melsen Power has more than 800 staffs, including 20 advanced managing people, more than 40 development and research engineers. It has building area of 120, 000 square meters and 3 factory bases, those are, Ningxiang base, Changsha base and Shengyang base.
We has been pursuing quality policy of continuous innovation and improvement to meet customer's requirements. To realized full automation, we has introduced advanced foreign equipment and technology from Korea and Germany. To ensure the best quality, we has passed I S O 9 0 0 1, I S O 1 4 0 0 1 and O H S A S 1 8 0 0 1 certifications.
Not only in local market, our products are also exported to abroad market like Euro, USA, India, Australia, Korea. Our sales volume reached 100 millions in 2015.
We stick to the company concept of human orientation and efficient innovation and we welcome customization. So, lets join together to promote the development of renewable energy and friendly environment.
