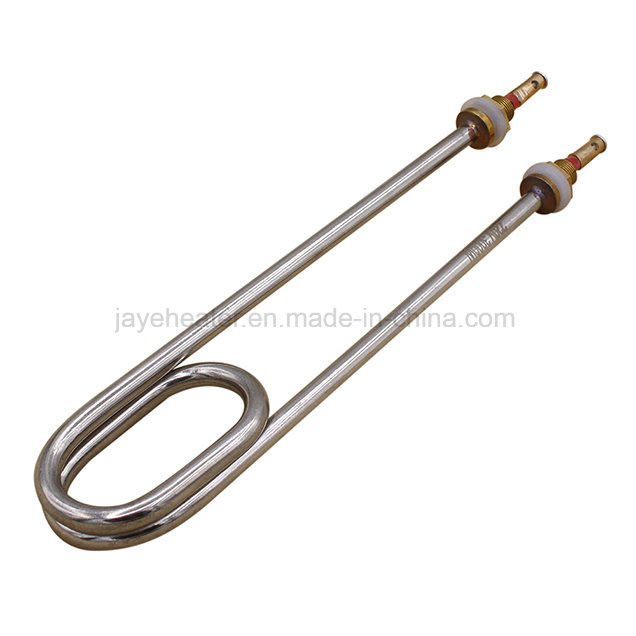

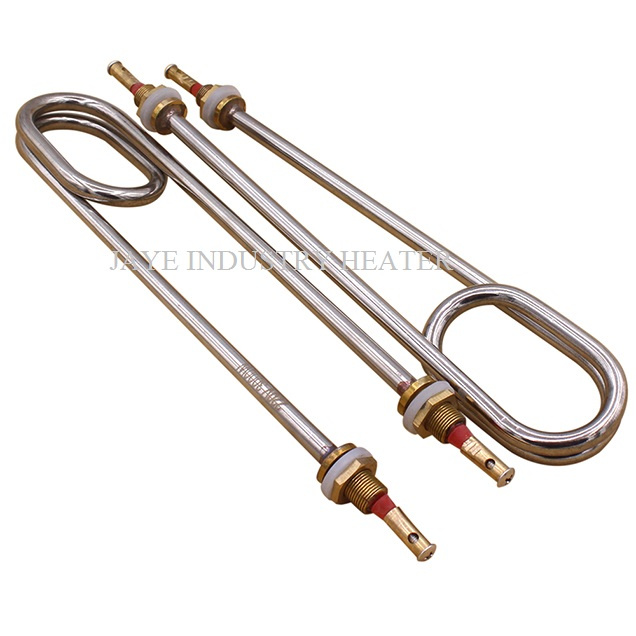

High Quality Spiral Autoclave Heating Element 3000W

Product Description

JAYE autoclave heating elements are constructed by brazing or welding elements into stainless steel or brass thread. These are intended for direct immersion into fluids and gases. The heater is to be installed via a threaded port in the tank or vessel. Autoclave heating elements  are available in a variety of pipe thread sizes and materials. The heating elements are offered in a number of materials suited to a variety of fluid heating applications. Terminal housings are available for indoor, outdoor and hazardous environments. Many options are available. Since we are a made to order company, we can offer a large selection of sizes and configurations. Please contact us for assistance with your application.

Flanged heaters are commonly used in many chemical, petroleum and water based applications.JAYE flanged heaters allow the flexibility of using many different alloys to help resist corrosion and maintain life longevity of the flanged heating element Steel flanges are typically used for lubricant oils, heavy and light oils, waxes as well as mildly corrosive liquids and low flow gas heating.Flange immersion heaters are constructed of hairpin bent tubular heater elements brazed or welded into ANSI standard flanges or plate flanges of various shapes and sizes. ANSI flange heaters are typically used for large volume, high power and/or higher pressure applications. Plate flange heaters are typically custom designed for use in smaller pieces of equipment such as boilers and chillers.
There are two connections, one thread connection, commonly used specifications size G1 / 2--2 inch, the second is the flange connection. Also known as the flat flange connection . Common specifications size DN50mm - DN300mm, flange electric tube flange commonly used materials are brass, stainless steel, 10 steel, pipe material commonly used 10 steel, stainless steel, copper. Common specifications, 1.5KW, 3KW, 6KW, 9KW , 12KW, 15KW, 30KW to 500kw, etc. Used for electric water boilers, electric boilers, solar energy systems, solar water tanks, chemical pools, baths, swimming pools and other places to be heated.
