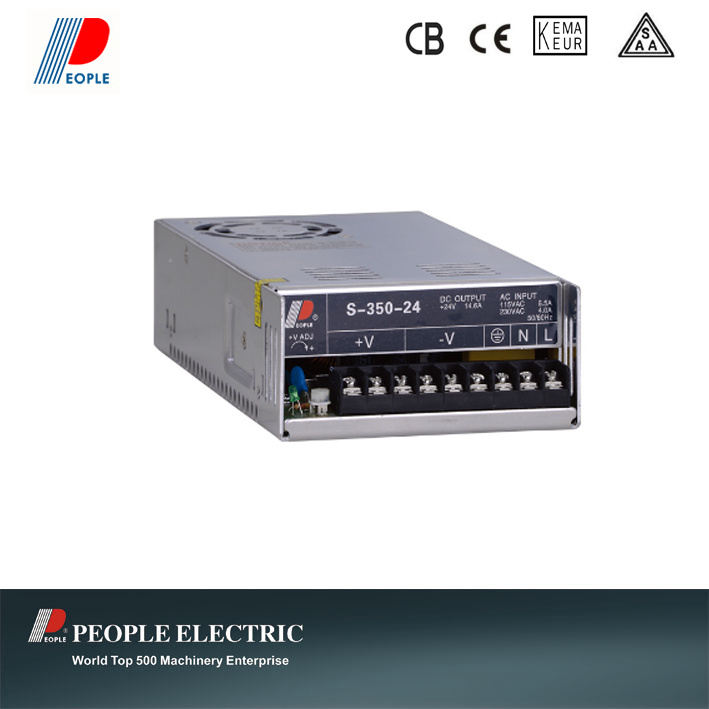

| Prod Model: |
S-350-24 |
| Customized Design: |
Yes |
| Output Voltage: |
24V |
| Working Temperature: |
-10ºC~+60ºC |
| Working Humidity: |
20%~90%Rh |
| Wiring: |
9 Bit 9.5mm Terminals |
| Weight: |
1.1kg |
| Output Type: |
Single |
| Warranty: |
1 Year |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Self-excited Switching Power Supply |
| Voltage Regulating Mode: |
Frequency Modulation Type |
| Power Supplying System: |
Level 1 Power Distribution Equipment |
| Certification: |
CCC |
| Output Power: |
350W |
| Input Voltage: |
90~132VAC/176~264VAC |
| Brand: |
People |
Product Description
Feature1.High reliability, EMI fitter inside, nice distribution-proof performance
2.Small DCwave, high working efficiency
3.Soft starting circuit, AC surge current restrain.
4.Nice heat radiation, low working temperature, long service life.
5.Wide input voltage range. good isolation, high anti-electric strength
6.Shortcircuit, overload, overvoltage protection.
Normal working & installment condition1.Temperature: -10ºC~+60ºC
2. Humidity: 20%~90%RH
3. Altitude: ≤1000m
4. Mounting place: indoor place without metal dust or obvious shock
5. Storage temp:-25ºC~55ºC

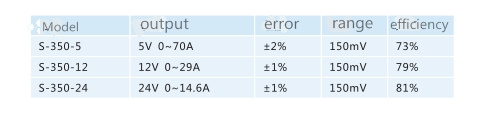

Specification| Outline dimension | 215x115x50 mm |
| Input voltage range | 90~132V AC/176~264V AC |
| Impact current | cold start current: 15A/110V, 30A/230V |
| DC voltage regulation range | 10% rated output voltage |
| Start, Raise, holding time | 200ms, 50ms, 20ms |
| Withstand voltage performance | input with enclosure 1.5kVAC; output with enclosure 0.5kVAC 1min |
| Weight | 1.1kg |
Packing and shipping-- Ordinary paper carton for products.
-- Shipping mark according to customer's request.
-- Bulk production will be deliveried by sea and air.
Our Service-- We have our own factory, professional manufacturer
-- We can send you samples within one week.
-- We do OEM & ODM services .
-- We control quality strictly, quality problem: 100% compensation or change
