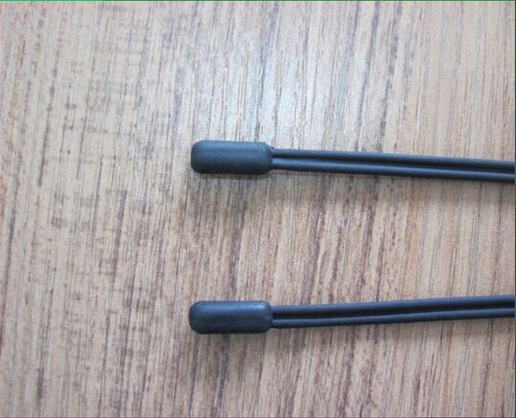

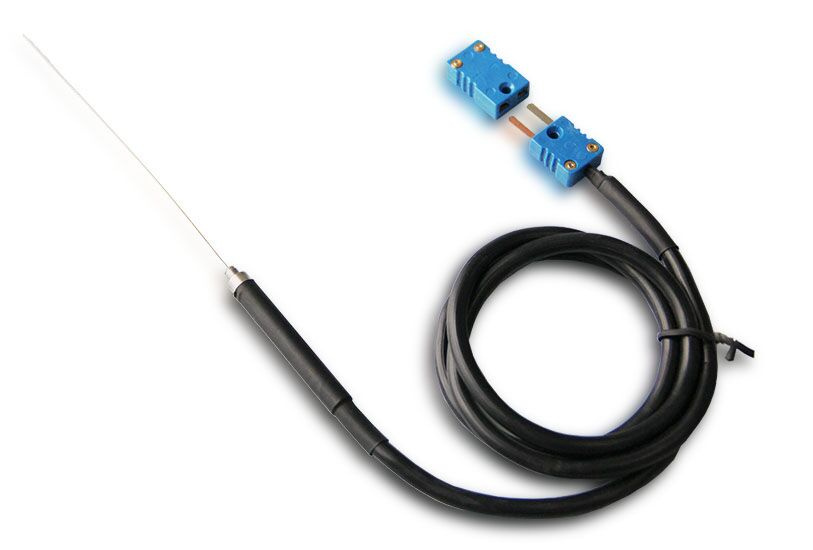

High Quality T Type Thermocouple for Medical

Prod Model:	T Type
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cable Length:	750mm or Customzied
Protect Tube Material:	SUS316
Production Process:	Metal Alloy
Material:	SUS304+PVC

Product Description

Specifications:
Simply assembled and easily changed
High temperature resistance
High precision temperature

T type thermocouple is usually used together with indicating instrument, recording instrument, computer, and so on. It directly measures liquid, steam, gas medium and surface of solids that all kinds of productive process temperature from 0~1800°C.

Characteristics of T type thermocouple-----
a) Simply assembled and easily changed
b) High precision to measure temperature
c) Large measuring range (-200°C to 1300°C, special case, -270°C to 2800°C)
d) Sensitive thermal response
e) High mechanical strength, good pressure resistance
f) High temperature resistance up to 2800°C
g) Long life time


The structure requirements of the thermalcouple of T type thermocouple.
In order to ensure the thermocouple stable and reliable work, its structure should follow the items below: 1) The welding of the two electrodes to compose the thermocouple should be firm;
2) The two hot electrodes should be well insulated to prevent short circuits;
3) The connection between the thermocouple compensation wire and the free end should be convenient  and reliable;
4) Protection tube should protect the heat electrodes from the harmful media adequately.

The electrodes material of IEC standard T type thermocouple:

Thermocouple indexing	The materials of the heat electrodes
	Positive pole	negative pole
S	Pt-Rh 10	Pure platinum
R	Platinum rhodium 13	Pure platinum
B	Platinum rhodium 30	Platinum rhodium 6
K	nickel-chromium	nisiloy
T	Pure copper	Copper Nickel
J	Ferrum (Fe)	Copper Nickel
N	Ni-Cr-Si	nisiloy
E	nickel-chromium	Copper Nickel


Non-standardized Ttype thermocouple can be customized. Please contact me.

Packaging & Delivery

Packaging Details:	waterproof packing or neutral ( wooden box or wooden box )
Delivery Detail:	Within one week after received the payment
