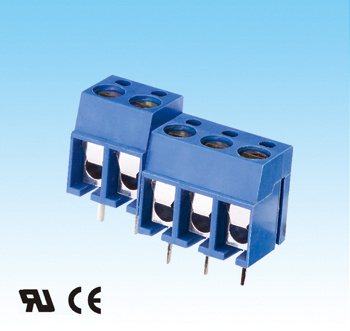

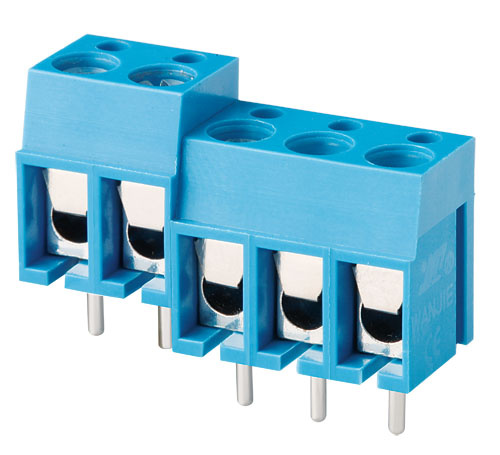

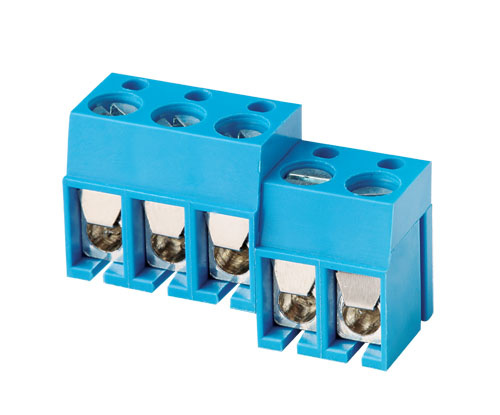

High Quality Terminal Block Connector (Pitch 5.0mm) (WJ300)

Name: High Quality Terminal Block Connector (Pitch 5.0mm) (WJ300)
Brand: all-electronics-online.com
SKU: 667982485
Availability: InStock
Rating: 5 (34 reviews)

Price:	US $ 0.01/Piece
Trade Terms:	FOB
Min Order:	1000/Piece
Pay Type:	T/T,Paypal,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	WJ300
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	PCB
Environmental Protection:	Resistance to Environmental
Connection Mode:	In-Line Connector
Shape:	Rectangle
Contact Termination Form:	Screws Fixed

Product Description

Terminal Block Connector
1. Good reputation
2. The quality of the products
3. Competitive price
4. Quality of Service
5. Free samples
6. Quick feedback

CIXI WANJIE ELECTRONIC CO., LTD was founded in 1992 and specializes in the production of terminal blocks. We have own R&D center, and our products have passed UL, VDE, TUV, RoHS, CQC, CB, CE certification.

For better service to the customers, we can also design, develop and produce according to customer's requirement for OEM/ODM products . Hope to cooperate with you.

Material
Screws: M3.0 steel Zinc plated
Wire guard: Phosphor bronze, Ni plated
Pin header: Brass, Tin plated
Housing: PBT, UL94V-0

Electrical
Standard: UL IEC
Rated voltage: 250V 250V
Rated current: 16A 24A
Contact resistance: 20mΩ
Insulation resistance: 5000MΩ /DC1000V
Withstanding voltage: AC 2000V/1 Min
Wire range: 22-14AWG 2.5mm²

Mechanical
Temp. Range: -30~+120
MAX Soldering: +250, for 5 Sec.
Torque: 0.5Nm(4.5Lb. In)
Strip length: 4.5-5mm

Cixi Wanjie Electronic Co., Ltd., is founded in 1992 and specializes in making terminal block and solderless breadboard. We have passed the ISO9001: 2000 quality management system and the products have been approved by VDE, UL, CE, SGS, CQC, RoHS and TUV.

With many years development, we have built an excellent management team and have our own R & D center, mould production, plastic injection, hardware stamping and assembling workshop. So we will give you the best offer also we can design, develop and produce the products according to customers' Request.

We have adopted advanced production and test equipment, so that we could offer good quality and more competitive products. For better service to the customers, we can also design, develop and produce according to customer`s requirement for OEM/ODM products.

With the advanced equipment and production line, good quality, competitive price and good service, our products are sold far to America, Europe, Middle East, Africa etc and receive good comments from the customers. So the company shows warm welcome to consult the business with all the customers both at home and abroad.

All the staff of company will strive together for a better tomorrow and show warm welcome to the customers of allover the world.
