| Prod Model: |
SCB10 |
| Type: |
Scb10 |
| Rated Capacity: |
30kVA to 2500kVA |
| Rated Voltage: |
10kv |
| Low Voltage: |
0.44kv, 0.43kv, 0.4kv, 0.38kv |
| Connection Group Symbol: |
Dyn11 or Yyn0 |
| No-Load Loss: |
380-4300W |
| Load Loss: |
1300-22400W |
| No Load Current: |
0.8-2.4% |
| Short Circuit Impedance: |
6% |
| Name: |
High Quality Three Phase Distribution Transformer |
| Application: |
Instrument |
| Phase: |
Three |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Dry-type Transformer |
| Winding Type: |
Auto-transformer |
| Brand: |
Zhongyi |
Product Description

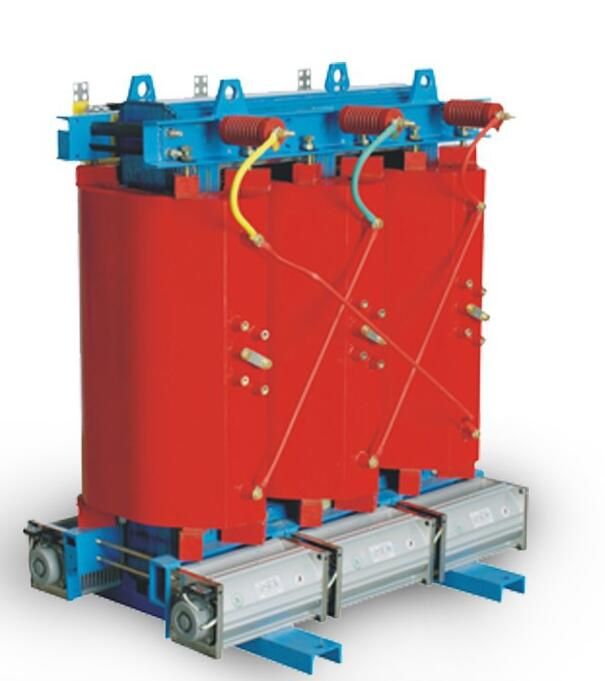

High Quality Three Phase Distribution Transformer
Product Description1.
Safe, fireproof, no pollution, it can be installed directly in the load center.
2.
Free maintenance, easy to install, low total operating costs
3.
With good moisture resistance, it can work normally under the100% humidity. After it stopped operating, the outage without pre-drying can be put into operation again.
4.
Low loss, low partial discharge, low noise, good heat dissipation capacity. Under the forced air cooling conditions, it can run at 150% rated load.
5. The equipped perfect humidity protection & control system can provide reliable guarantee for the safe operation of the transformer.
6.
High reliability, after conducting the research to the products that has been put into operation, the reliability index for the products has reached the international advanced level.
Product Specifications| Product Model No. | Connection Group Symbol | Loss W | Impedance Voltage(%) | No-load Current(%) | Overall Dimensions(without enclosure)mm | Weight(Kg) |
| No-load | Load | L | W | H | L1 | L2 | d | f |
| SC10-30/10 |
Y,yn0
D,yn11 | 195 | 705 |
4 | 2.6 | 770 | 550 | 800 | 210 | 210 | 350 | 350 | 330 |
| SC10-50/10 | 270 | 995 | 2.2 | 820 | 600 | 830 | 220 | 220 | 450 | 450 | 380 |
| SC10-63/10 | 330 | 1210 | 2.2 | 850 | 610 | 850 | 220 | 220 | 450 | 450 | 440 |
| SC10-80/10 | 370 | 1380 | 2.2 | 890 | 610 | 860 | 230 | 230 | 550 | 550 | 510 |
| SC10-100/10 | 400 | 1570 | 2.0 | 900 | 610 | 930 | 240 | 240 | 550 | 550 | 590 |
| SC10-125/10 | 470 | 1850 | 1.8 | 900 | 720 | 980 | 300 | 210 | 550 | 660 | 650 |
| SC10-160/10 | 545 | 2130 | 1.8 | 980 | 720 | 980 | 310 | 220 | 550 | 660 | 780 |
| SC10-200/10 | 625 | 2530 | 1.6 | 980 | 720 | 1050 | 315 | 225 | 550 | 660 | 930 |
| SC10-250/10 | 720 | 2760 | 1.6 | 1110 | 900 | 1120 | 320 | 230 | 660 | 840 | 1040 |
| SC10-315/10 | 880 | 3470 | 1.4 | 1110 | 900 | 1275 | 325 | 235 | 660 | 840 | 1180 |
| SC10-400/10 | 975 | 3990 | 1.4 | 1110 | 960 | 1315 | 360 | 320 | 660 | 900 | 1450 |
| SC10-500/10 | 1160 | 4880 | 1.4 | 1155 | 960 | 1330 | 370 | 330 | 660 | 900 | 1630 |
| SC10-630/10 | 1345 | 5870 | 1.2 | 1240 | 960 | 1310 | 360 | 320 | 660 | 900 | 1900 |
| SC10-630/10 | 1300 | 5960 |
6 | 1.2 | 1290 | 960 | 1330 | 350 | 310 | 660 | 960 | 1900 |
| SC10-800/10 | 1520 | 6955 | 1.2 | 1320 | 1020 | 1350 | 360 | 320 | 820 | 960 | 2290 |
| SC10-1000/10 | 1770 | 8130 | 1.1 | 1360 | 1020 | 1455 | 370 | 325 | 820 | 960 | 2700 |
| SC10-1250/10 | 2090 | 9690 | 1.1 | 1430 | 1020 | 1505 | 385 | 340 | 820 | 960 | 3130 |
| SC10-1600/10 | 2450 | 11730 |
8 | 1.1 | 1470 | 1020 | 1695 | 410 | 370 | 820 | 960 | 3740 |
| SC10-2000/10 | 3320 | 14450 | 1.0 | 1580 | 1080 | 1830 | 430 | 405 | 820 | 1020 | 4150 |
| SC10-2500/10 | 4000 | 17170 | 1.0 | 1620 | 1080 | 1900 | 440 | 420 | 820 | 1020 | 4810 |
Why Choose us1.Specilized in manufacturing of oil-immersed power transformers,dry-type transformers, box-type substation,high and low voltage switchgear assembly and special-type transformers since 2008.
2.With the production capacity of value of 1000000kva,our transformers have been widely used in power plants, chemicals, construction, mining, metallurgy, rail transportation and so on.
3.All our products are ISO9001-2015 and CE certified,we also have a strong R&D team to meet any requirements of yours.

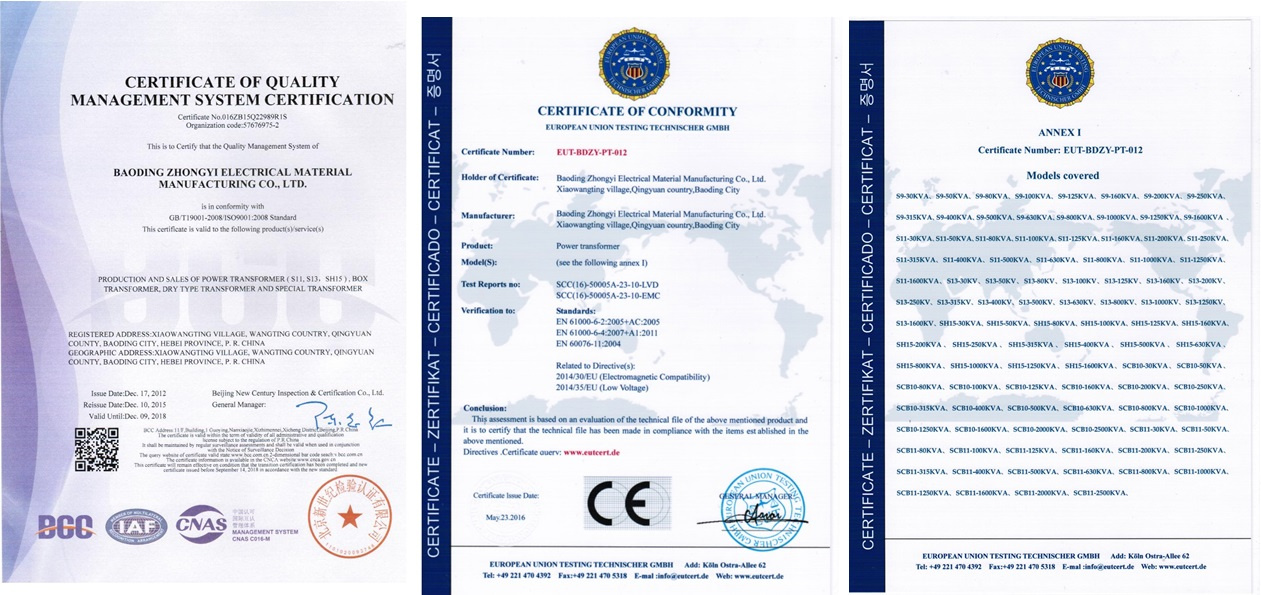

4.With great experience of the international transformer projects.Certifications
Our CompanyBuilt in 2008,Baoding Zhongyi Electrical material Manufacturing Co., Ltd. is located in Baoding City, with an advantageous geographical location and convenient transportation.
With an area of 30,000 square meters, and building area of 16,000 square meters. The registered capital of the company is RMB 81,000,000.
Mainly produces: oil-immersed power transformers, dry-type transformers, box-type substation, high and low voltage switchgear assembly and a variety of special-type transformers.
With the whole set of the hoisting, tooling and testing equipments. Our company has passed the ISO9001-2015 international standard quality management system certification. All performance indicators of the products have reached the relevant national standards and international standard.

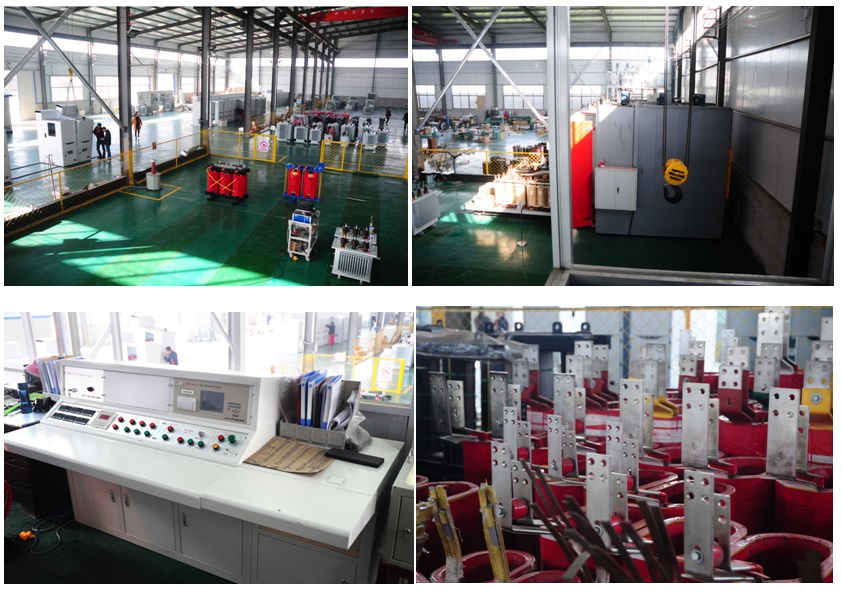

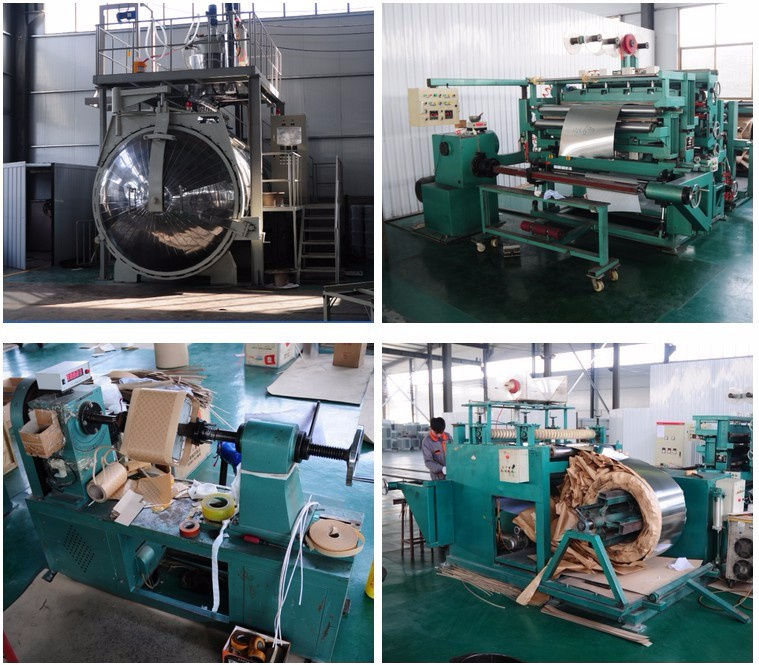

Our Facilities

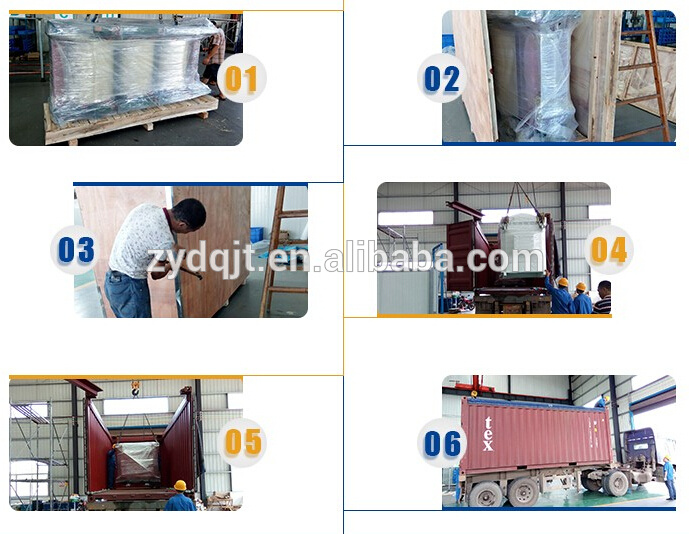

Packing&DeliveryPacking details
