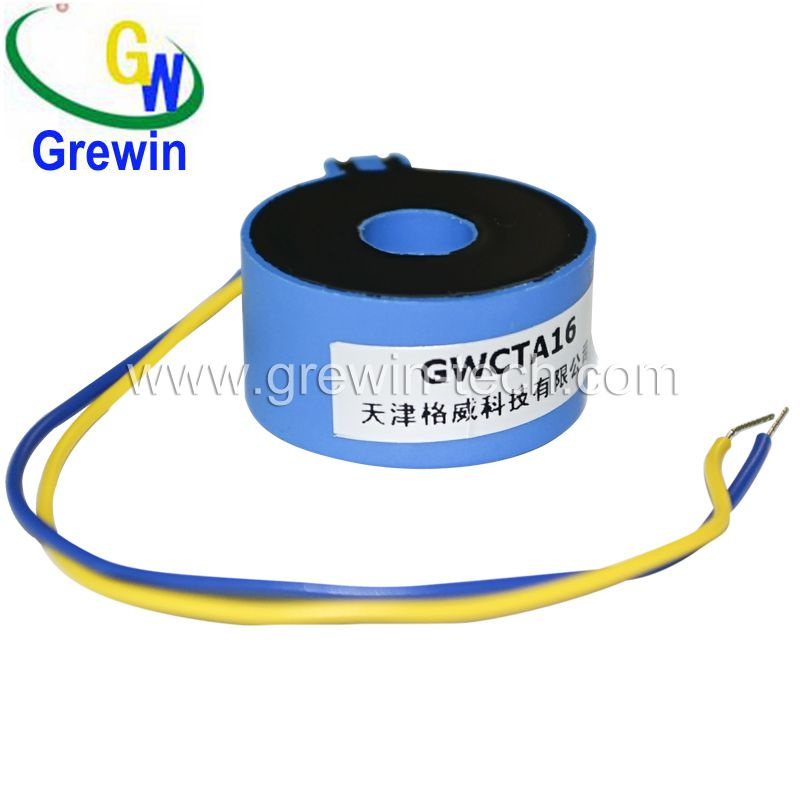

High Quality Toroidal Minature Current Transformer

Name: High Quality Toroidal Minature Current Transformer
Brand: all-electronics-online.com
SKU: 615548454
Availability: InStock
Rating: 4.8 (120 reviews)

Price:	US $ 6-6.8/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GWAD014
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Colour:	Blue,Black
Shell Material:	PBT or ABS
Working Frequency Bound:	50Hz~400Hz
Core Design:	Toroidal
Coil Number Ratio:	1000:1
Accuracy Class:	Class 0.1,0.2
Application:	Lighting
Type:	Current Transformer
Phase:	Single
Installation:	PCB or Wire Leads

Product Description

The GREWIN ADXX series of toroidal core current transformers
Are designed for fast and easy installation. The split
Core design permits non-contact current measurements
Through magnetic field induction without requiring that the
Primary wire be taken offline and disconnected for CT
Installation. This method permits a safer, easy and portable
Current measurement.

Description:
Low cost
More than 50 standard sizes
Non-symmetrical mounting pattern
Toroidal Silicon steel and Nickel Alloy cores
Available
Applications:
For applications that require exceptional
Accuracy with minimal phase angle error
Applications would include Current, Power
And Energy monitoring devices.

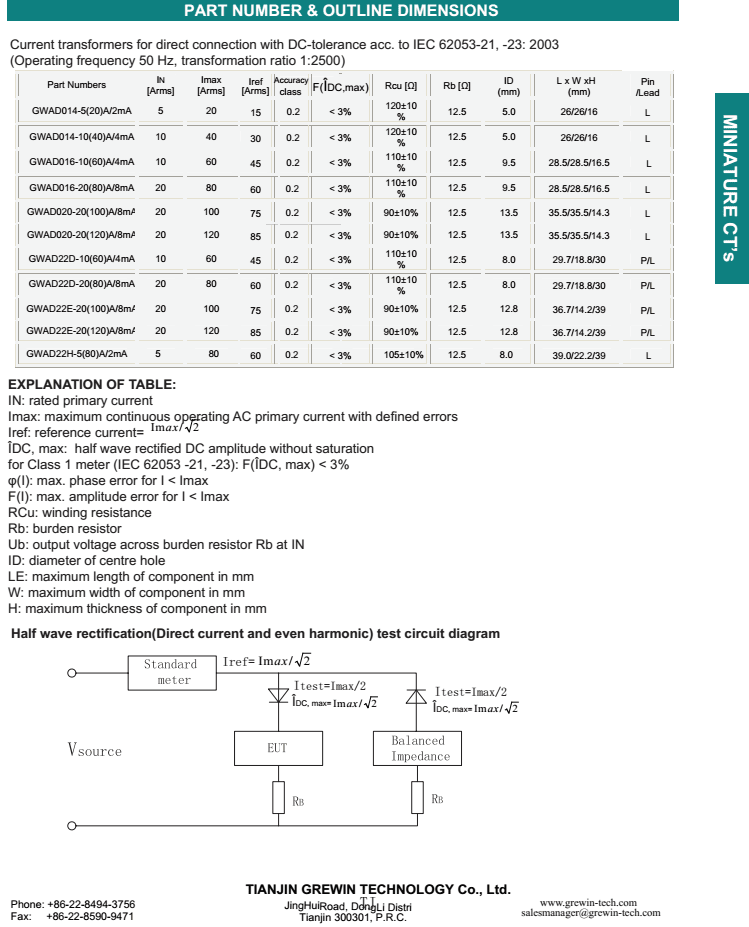

Specifications:
Exterior Material: PBT Resin UL flame
Retardant rating 94-V0
Interior Insulation: Epoxy Encapsulated
Isolation Current: 2500 Vrms for 1 minute
Dielectric Resistance: 1000 M Ohms at 500 Vdc
Surge Withstand: 5000V(1.2/50μ S standard
Shock wave)optional
Operating Temperature: -25 to +55 degree, -40 to
+85 degree optional
Frequency: 50 to 400 Hz
Accuracy Class: As defined in IEC 60044-1
Part 1 Current Transformers Class 0.1, 0.2
RoHS Compliant

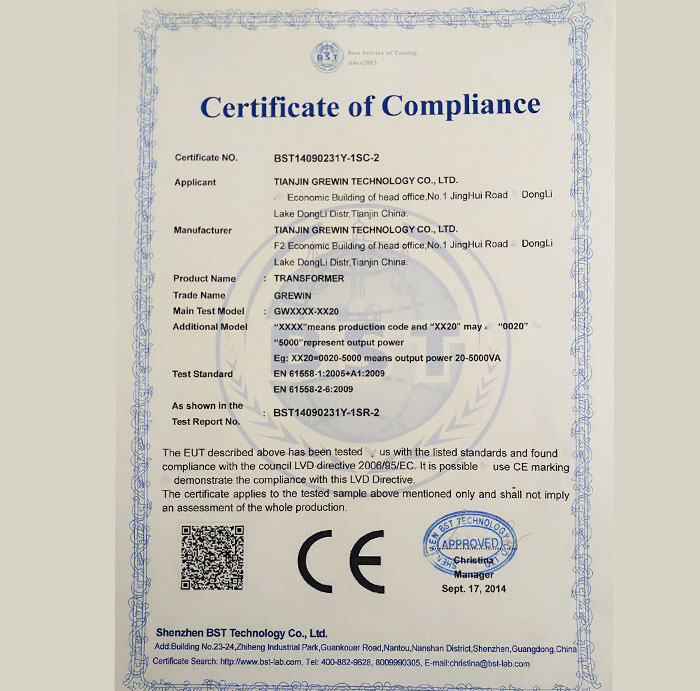

CE-approved

CONTACT INFO;

Victor Dong

Tianjin Grewin Technology Co.,Ltd.
Web: http://grewin-tech.en.made-in-china.com or www.grewin-tech.com
TEL:86-22-84943756
FAX:86-22-85909471
MT: 86-13820617229

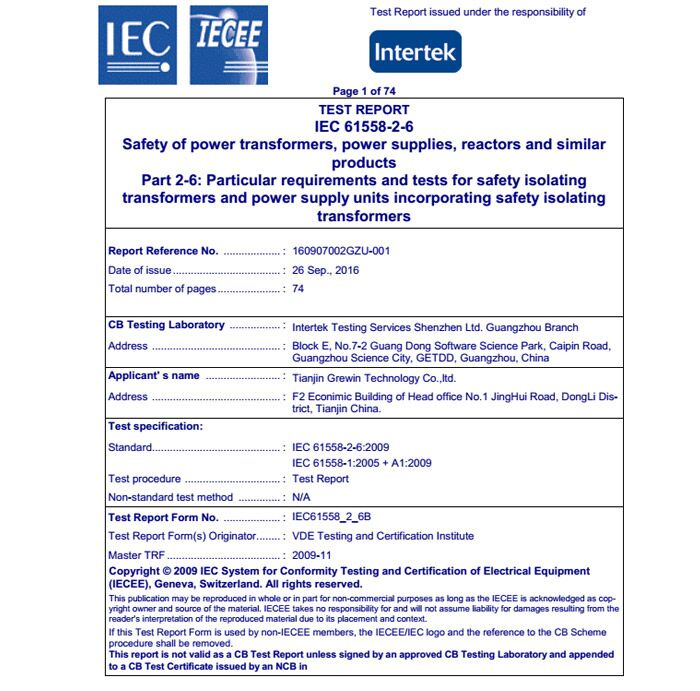

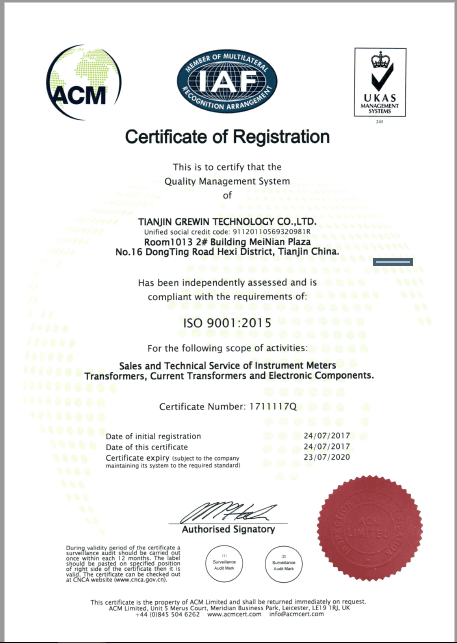

GREWIN as manufacture for Toroidal Transformer, current transformer, high frequency magnetics transformer, split core current sensor, clamp on CT, EI power Transformer etc. We have abtained ISO9001: 2015, IEC, CE, VDE, approval.

Our company have many advantages which can be your honesty and reliable supplier:

WHY CHOOSE US?

A. Business philosophy "Quality and Honesty First“

B. Over 40 years experience of transformer designing and producing.

C. Transformer 100% test before the shipment;

D. UL, CE, ISO9001: 2008

E. We offer custom-made transformers, OEM and ODM are welcome

F. We expect at consistently competitive prices

G. Transformer quality lifetime: 10 Years.

H. Professional experiences of the sales and engineers: 5 -10 Years

Grewin Mission: Growing together side by side, Mutual success hand in hand.

We sincerely invite you to join us to create a bright future.
