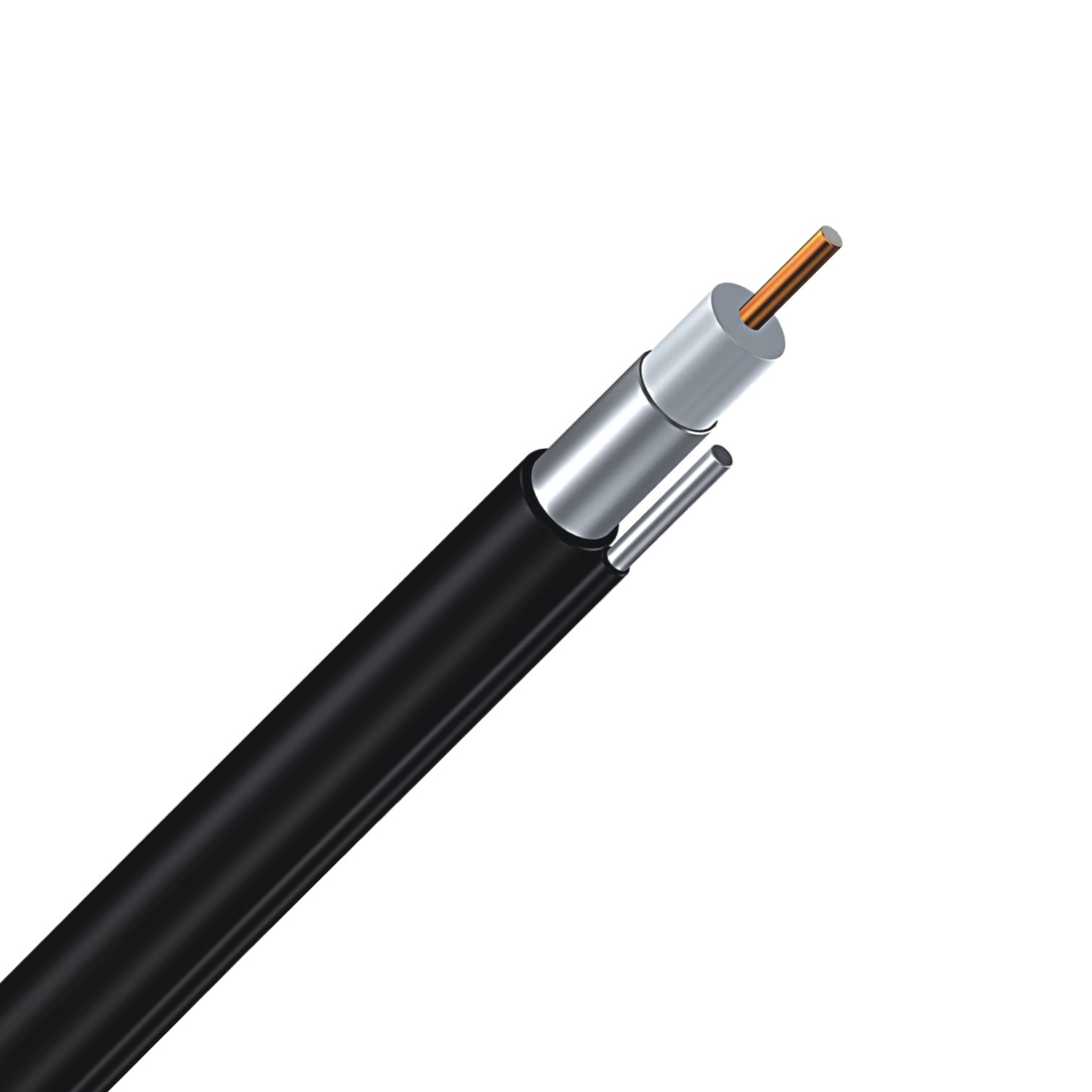

High Quality Trunk Cable Qr500 (500JCA / JCAM)

Name: High Quality Trunk Cable Qr500 (500JCA / JCAM)
Brand: all-electronics-online.com
SKU: 739181345
Availability: InStock
Rating: 4.9 (21 reviews)

Price:	US $ 0.6-1/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Meter
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	500JCA / JCAM
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cable Type:	Qr500
Center Conductor:	Copper Clad Aluminum
Dielectric:	Foam PE
Outer Conductor:	Aluminum Tube
Jacket:	PE
Color:	Per Customers' Special Requirement
Application:	RF Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PVC
Certification:	CE, ISO, RoHS, CCC, UL, SGS,BV, ETL
Type:	Qr500
Wire Core Material:	CCA
Model:	Qr500
Brand:	Xingfa

Product Description

High Quality Trunk Cable QR500(500JCA / JCAM)

1. cable qr500 specifications:

ITEM		DESCRIPTION
Conductor	Material	Copper Clad Aluminum
Conductor	Nominal Diameter	2.77mm
Insulation	Material	Foam PE
Insulation	Nominal Diameter	11.43mm
Outer Conductor	Material	Aluminum Tube
Outer Conductor	Nominal Diameter	12.70mm
Jacket	Material	PE
Jacket	Nominal Diameter	14.22mm

2. electrical characteristics:

Frequency (MHz)	Attenuation Maximum dB (100m)
5	0.52
55	1.77
211	3.58
300	4.30
350	4.69
400	5.02
450	5.35
500	5.97
750	7.09
865	7.68
1000	8.27

3. cable qr500 packing:

1) Packing Lengths:500m/roll 1000m/roll
2) Inner Packing: Wooden reel

More Cables & Products
Cables:

1) 75 ohm Coaxial Cable RG6, RG59, RG11;
2) 50 ohm Coaxial Cable RG174, RG58, RG8, RG213, RG214;
3) Siamese CCTV Cable RG59+2C, KX6+2C, RG6+2C;
4) Combo Coaxial Cable RG6+Cat5e, RG6+CAT5E+Messenger etc;
5) LAN Cable/Network Cable UTP/FTP Cat5e, Cat6, Jumper Cable;
6) 1 pair/2 pairs Telephone Cable;
7) Security Alarm Cable, Fire Alarm Cable, Speaker Cable;
8) Optical Fiber Cable (GYXTY, GYXTW, ADSS, FTHH etc.);
9) 50 ohm RF Feeder Cable 1/4"S, 3/8"S, 1/2"S, 1/2", 7/8", 1-1/4", 1-5/8".

Cable Related Products:

1) Coaxial Cable Connector (F, BNC, RCA, Female, Male);
2) Cable Crimping Tool, Wire Stripper, Insertion Punch Tool;
3) Optical Transmission Equipments, CATV amplifier, Taps, Splitters.

We Hangzhou Xingfa Technology Co., Ltd is a Pioneer manufacturer with more than 15 years experience in the communications cable industry in China. We can professionally manufacture and supply coaxial cables(RG59, RG6, RG11, RG213, KX6 etc. ), LAN cables(CAT5, CAT6, UTP, FTP, SFTP), alarm cables, telephone cables and the cable assembly etc, and many are approved by CE, ETL, RoHS and REACH. The current production capacity is about 300, 000, 000meters per year.

Our company is located in Lin an city, enjoying great convenience to China's Biggest Port - Shanghai Port and Ningbo Seaport. It takes 2 hours from Shanghai airport to our factory, and It just take 1 hour from Hangzhou airport to our factory.

Our company has high-tech and advanced imported equipment: Automatic number series of tandem wire drawing-insulation line, dozens of high speed braiding machines, numbers of high-quality physical foaming insulation line, also dozens of Twisting machines, Laying-up machine, and wire coil wrapping machines. With good quality and best after-sales service, our annual turnover can reach 33 million Dollars, production capacity is 300, 000Kilometers.

We have over 200 employees and 15 professional international sales team. About 5 person for Research and Development. More than 15 people for Quality Control. We carefully test cables under ISO9001-2000 quality management before shipping to the customers. And our quality is always reliable.

Most of our products are exported to Europe, America, and South-east Asia. etc. What is more, our company always devotes to developing custom cables according to clients needs. We look forward to working with you and getting mutual benefit in future.

"Quality First, Customer First" is the policy we stick to forever. Customer's most satisfaction is our biggest honor, too. All customers abroad are welcome to visit our company and make business discussion. Long-term cooperation is highly appreciated.
