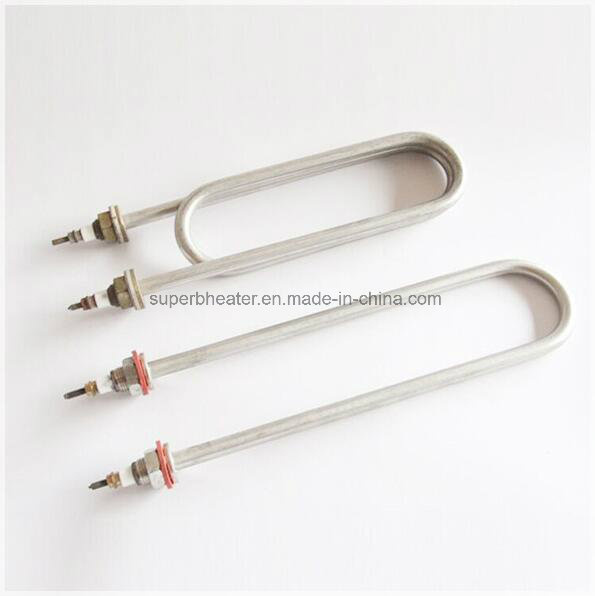

High Quality U Type Immersion Tubular Heater
| Price: |
US $ 5-10/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal,Money Gram |
Product Description
Product DescriptionComposed of steel fins press-fitted to a tubular element, the finned tubular heater is designed to improve heat transfer to the air and permits putting more power in tighter spaces-like forced air ducts, dryers, ovens and load bank resistors.
Heat transfer, lower sheath temperature and element life are all maximized by the electrc heating element's finned construction. For electric immersed tubular heater, installation is simplified by terminations exiting at one end and mounting accommodations on both ends.
Characteristics and Properties - Tube Diameter: Φ7mm-Φ30mm
- Tube Material: SS201, SS304, SS316, SS321 and INCOLOY800 etc
- Insulation Material: MgO
- Conductor Material: Nichrome Resistance Wire
- Wattage Density: High/Middle/Low (5-25w/cm2)
- Lead Connection Option: Threaded Stud Terminal or Lead Wire
- Lead Wire Type: 300mm Standard (Teflon/Silicone High Temperature Fiberglass are available forimmersed tubular heater)
| Heat intensity | Not exceeding 30w/cm2 (advisable) |
| Power | Depends on the dimension |
| Exhaust extreme (when cold) | <=0.1mA to 242 v. |
| Insulation (when cold) | 5 Min Ohms 500 Watts minimum |
| Dielectric strength | 1500v. 1/sec |
| Working temperature | 650 Deg C max. |
| Length tolerance | +/-1.5% |
| Diameter tolerance | -0.02 to -0.06 mm |
| Cut off connection tolerance | +/-15 mm |
| Power tolerance (w) | +5 % - 10 % |
| Cold areas | Depends on length and diameter 5-25mm |
Suggested Applications- Forced air heating for dryers, ovens, ducts
- Still air heating for ovens, comfort heating
- Incubators
- Ink drying
- Load bank resistors
Our work shop
Packing and shipment
OUR ADVANTAGES1.Minimum order: 3pcs
2.Delivery time : in stock 1-2days ,out stock 3-7days
3.More than 50 different sizes stock
4.Products are divided into two grades
A grades:use the The world's top material Best quality,Meet or exceed the same quality in Europe and America,Only 40% of the price of similar products in Europe and America To meet customer demand for high quality.
B grades:use the The china top material,Best quality in china ,Meet the standard for quality and price requirements of customers
5.Provide OEM service.
6.Quality Assurance:Under normal conditions consistent with the design range ,
A grades 365days
B grades 180daysSuperb Heater Technology has been focused on the production of industrial screw plug bendable immersion tubular heaters heating elements since 1985, which is well-known as one of the leading manufacturers and suppliers of industrial screw plug bendable immersion tubular heaters heating elements. In the past years, we owned strong reputation for the high quality, reliable performance and strong durability of our products. Should you are interested, please feel free to contact our factory.
Shenzhen superb heater technology Co., Ltd, Founded in 1985, Start is a state run Magnesium Oxide factory, After privatization reform To become a professional to provide all kinds of electric heating products of the comprehensive private joint-stock companies, After years of development company now grown to have include: ChaoHu heating material fitting, JiuDing machinery and spare parts, LiLin cartridge heaters, chaohu band coiling heaters, JXC Industrial heaters five plants, more than 200 employees, assets of more than $ 5 million, Products include various types of industrial heater, cartridge heater, hot runner, thermocouples, band heater and a variety of heater materials and heater equipment to meet customers one-stop shopping for all kinds of heating element, heating materials and heating equipment needs.
Over the years we are committed to technology and product quality improvement, many products similar products meet international quality, in China in the lead, swaged-in leads cartridge heater and diameter less 4mm cartridge heater as China's first single, cost-effective products to give our customers highly recognized, it has been to establish and maintain long-term cooperative relations with more than 700 customers in over 40 countries.
We will insist on our stable style to establish good image in both customers and our partners. We have been insisting on the "REDUCING THE COST AND GIVING ADVANGTAGE TO CUSTOMERS " To provide customers with better products and services, and grow with customers
After long-term accumulation, we have set up agents and partners in India, Dubai, USA, Russia, Brazil, Argentina, Thailand, Korea and other countries to provide convenient and quick service
