High Quality Universal Wireless Crane Radio Remote Controller

Name: High Quality Universal Wireless Crane Radio Remote Controller
Brand: all-electronics-online.com
SKU: 649365475
Availability: InStock
Rating: 4.9 (47 reviews)

Price:	US $ 60-70/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	ZC22
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Operation Distance:	100m
Frequency:	FM433MHz (20Hz) FM868MHz(20Hz)
Output Power:	<=10MW
Antenna:	Internal Type
Temperature:	0-75degree (Without Battery Inside)
Power Supply:	1.5V AA 4PCS
IP Degree:	IP65
Consumption:	<17mA (Stand by <20mA)
Source Voltage:	AC48V , 110V, 220V
Type:	Button
Transmission Distance:	>100m
Certification:	SGS
Signal Transmission:	RF Remote Control
Application:	Special Equipment
Material:	Plastic
Battery Type:	AA Battery
Universal:	Universal
Voltage:	220V

Product Description

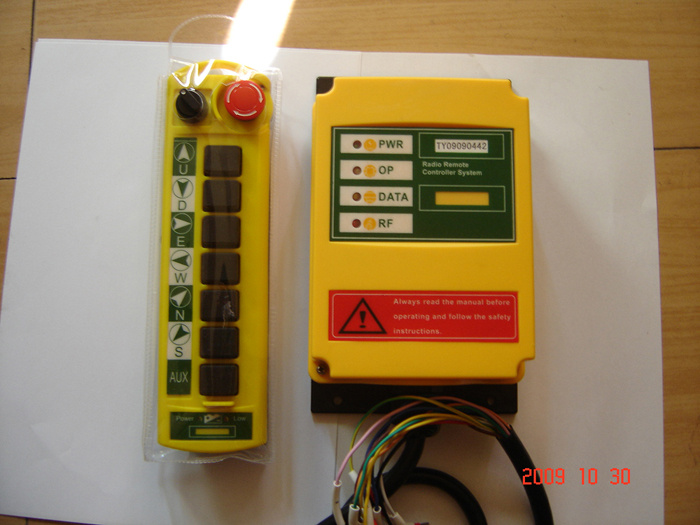

Wirelss Radio Remote Controller

Same function as crane pushubtton, instead of crane pushbutton work with cable, this is wirelss which is more convenient and easily control and install. Controlled by frequency and the distance can reach to 200m wide.

Features:
1. Advance program design, quick and good performance movements.
2. PA transmitter housing. Water, Shock, dust proof
3...Single -Raw button transmitter, compact and lighter design, ensure safe&convenient operation.
4. Random security code up to 4.2 biljions sets, each transmitter has own unique ID code.
5. Receiver with 4 -LED, quick, simple judgement for operation sialus & after service.

2. Models
EUROTRON Q100 1 step(6) buttons+(1)AUX button (momentary)
EUROTRON Q100S 1 step(6) buttons+(1)light button (toggle/latch)
EUROTRON Q100AB 1 step(6) buttons+(1) button for A. B. A+B hoist
EUROTRON Q211 (2)2 step- buttons+(4)1 step-button +(1)AUX button (momentary)

EUROTRON Q112 (4) 1step- buttons+(4)2 step-button +(1)AUX button (momentary)

EUROTRON Q200 2 steps (6) 2 step -button +(1)AUX button (monmentary)

EUROTRON Q200S 2 steps (6) 2 step -button +(1)light button (toggle/lacth)

EUROTRON Q200AB 2 steps (6) 2 step -button +(1)button for A. B. A+B hoist

3. Transmitter

Operation Distance	100M
Frequency	FM433MHZ(20HC) FM868MHZ(20HC)
Output power	<=10mW
Antenna	Internal Type
Temperature	0-75degree (without battery inside)
Power Supply	1.5V AA 4pcs
Enclosure	IP65
Consumption	<17mA (stand by <20mA)
Address Code	4.2 billions set
Weight	235 (excluding battery)

4. Receiver:

Sensitivity of RF	-110dBm
Frequency:	FM433MHZ (20HZ) FM868MHZ(20HZ)
Antenna	Internal Type
Temperature	0-75degree
Source Voltage	AC48V , 110V, 220V
Enclosure	IP65
Consumption:	<12w
Security Code	4.2 billion sets
Weight	700g (excludng battery)
Certificate	CE , SGS , ISO9001

5. Installation Notes:
1. Ensure the orginal wired control of crane works.
2. Shut down crane main power source before installation.
3. Mount in a fimned side where the receiver can be seen easily by operator.
4. Keep away the mounted side from motors relays, cables, high voltage wiring and devices, or the protrusion of building where crane moves, slecta firmed side without metal shield.
5. Do not install the other same channel remote controller within 50M.
6. Ensure the wiring layout correctly and safely \
7. Test each function to be sure each out put has the same function as wired control
8. Put the wired pendant in safe positon.
