| Prod Model: |
LK-USBCB015 |
| Lead Time: |
2~6 Working Days |
| Cable Length: |
as Customer′s Request |
| Application: |
Mobile Phone |
| Interface Type: |
USB |
| Material: |
Copper |
| Feature: |
Waterproof |
| Shape: |
Round |
| Computer Cable Type: |
Data Line |
| Printer Cable Type: |
USB |
| Pin: |
5 Pin |
| Color: |
Blue |
Product Description
LK-USBCB015
Specifications :

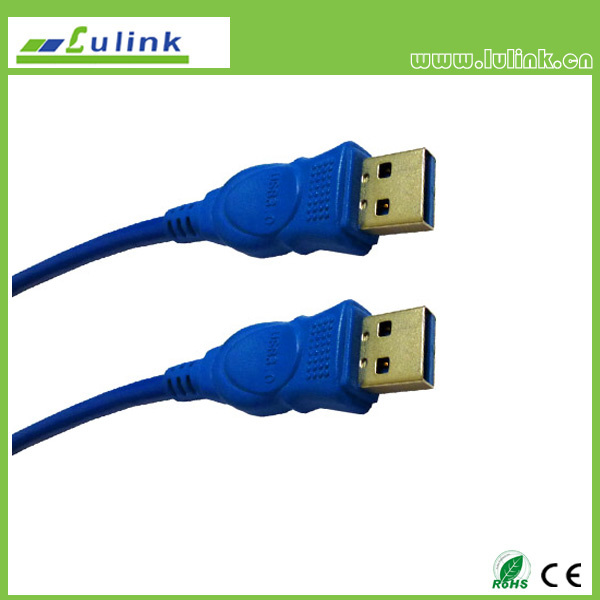

USB3.0 Cable
USB 3.0 AM TO AF
Connector : Nickel or Gold plated
Conductor: Copper
Cable Color: Blue
Blue PVC molding
Cable Specification:
CABLE: UL2725(28#*1P+D+AL+MYLAR)*2+28#*1P+24#*2C+AB
OD: 5.5mm
Package:
Polybag , PE bag ,blister
Electrical:
100% open & short test
HI-pot: DC 300v 10ms
Insulation Resistance:10MΩ /300V MIN
Contactivity: Resistance: 0.01Ω MAX
Working temperature: -25oC to +85oC
USB3.0 vs USB2.0 Feature
| Features | USB3.0 | USB2.0 | | Data Rate | SuperSpeed (5.0Gbps) additional | low-Speed (1.5Mbps)
full-Speed (12Mbps)
high-Speed (480Mbps) | | Data Signal | SS OUT Differential Signal: 1 Pair
SS IN Differential Signal: 1 Pair additional | Differential Signal: 1 Pair | | Connector Signals | 4 wires: SuperSpeed
2 wires: DP/DM for USB 2.0
3 wires: Vbus/GNDx2 | 2 wires: DP/DM for USB 2.0
2 wires: Vbus/GND | | Bus Protocol | No polling | Uses polling | | Power Control | Configuration at multiple link levels | Suspend/Resume by Port | | Power Supply to Bus | Max. 900 mA | Max. 500 mA |
USB 3.0 vs USB 2.0 Speed
|
