High Quality Waterproof 12 Pin Metal IP67 Signal Connector

Prod Model:	DH-20-C12PE-01-001, DH-20-J12SX-01-001
Protection Level:	IP67
Connecting Mode:	1/4 Bayonet Connecting Type
Insulation Resistance:	>500 MΩ
Housing&Insulation Parts:	High-Performance Engineering Plastics
Diameter Range:	5.5mm~7mm
Withstanding Voltage (AC.V) 1 Minute:	1500V
Hardware:	Zinc Alloy (Pearl Hard Chrome)
Working Temperature:	-40°c~80°c
Durability:	More Than 500 Times
Cooper Pins:	Copper Alloy (Gold-Plated 4u)
Application:	LED Display and Industrial Equipment
Gender:	Male and Female

Product Description

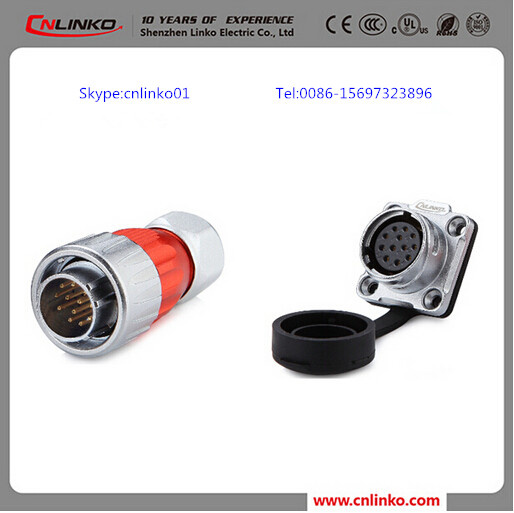

High quality waterproof 12 pin metal IP67 signal connector

Products picture website:
http://www.cnlinko.com/admin/kindeditor/attached/image/20160727/20160727071103_21380.jpg

DH20 serials waterproof connector, with unique wave spring design, standard card slot, rotary locking type and fashionable design to meet customer's demands, widely be used in LED display screen, industrial equipment, stage lighting equipment and other field.

1.Three positioning, designing with wave spring knob, the outer ring card point locking snap engaged with the socket, easy to operate with uniform intensity engaging, and keeping the current and signal transmission more stable.
2.Using wave spring structure,making elastic wave spring stranded automatically while connection.
3.Using outer alloy ring, keeping the plug and socket more stable while closed , making the power supply or signal transmission more stable and comparable while connection.
4.Using tail jaws designing, to tighten and twisted the wire more effective, improving the waterproof rating ,tensile strength , and making the nuts anti-back effectively.
5. Waterproof clip coil designing, making the products have better waterproof rating while closed.
6. Waterproof IP65/IP67 while connection.

Cable specification: 0.15mm²~0.2mm²/26-24 AWG
Diameter range: Φ5.5mm~Φ7mm
Contact diameter × number: Φ1.0×12
Rated Current: 5A
Operating voltage (AC.V.rms): 400V
Contact resistance: <5mΩ
Temperature rise: /


Withstanding Voltage(AC.V)1 minute:	2500V	Insulation resistance:	>500MΩ
Protection level:	IP65/IP67	Durability:	≥500 times
Working temperature:	-40ºC~80ºC	Connecting mode:	1/4 Bayonet connector
Assembly wire:	solder	Housing:	Zinc alloy
Hardware:	Zinc alloy(pearl hard chromium)	Copper needles:	Copper alloy (gold-plated 4U)
Waterproof circle:	Silica gel	Flammability rating:	UL94-V0
