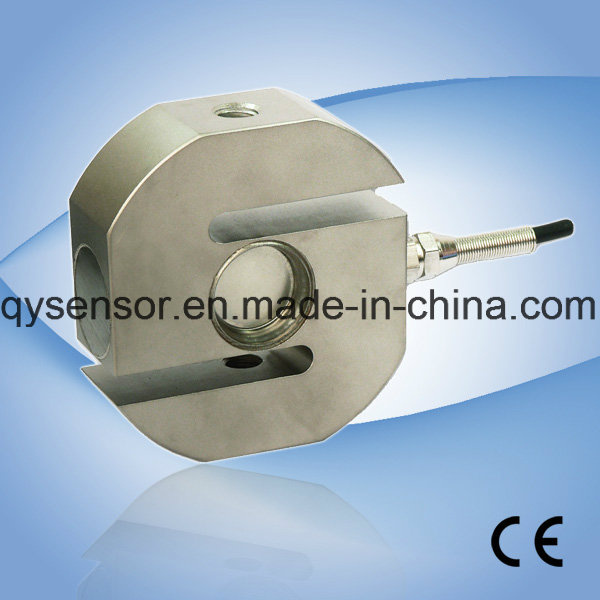

High Quality Weighing Sensor for Crane Scales

Name: High Quality Weighing Sensor for Crane Scales
Brand: all-electronics-online.com
SKU: 773899995
Availability: InStock
Rating: 4.4 (52 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	QH-32B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Capacity:	5t
Accuracy:	C3
Overload:	300%Fs
Product Name:	High Quality Weighing Sensor for Crane Scales

Product Description

QH-32 High Quality Weighing Sensor for Crane Scales are available in the capacities from 0.5t to 5t.
Alloy construction with spoke type.
S beam style. Tension and/or compression loading.
Alloy steel or stainless steel,sealed welding , waterproof, anti-corrosion and suitable for all kinds of environment.
Integral structure and easy installation.
Suitable for crane scale, mechanical conversion scale, hopper scale and other electronic weighing devices.
Features:
Capacity :0.5t ~ 5t
Defend grade: IP67 & 68
High accuracy.
Alloy steel or stainless steel.
Integral installation, Low profile. reliable performance

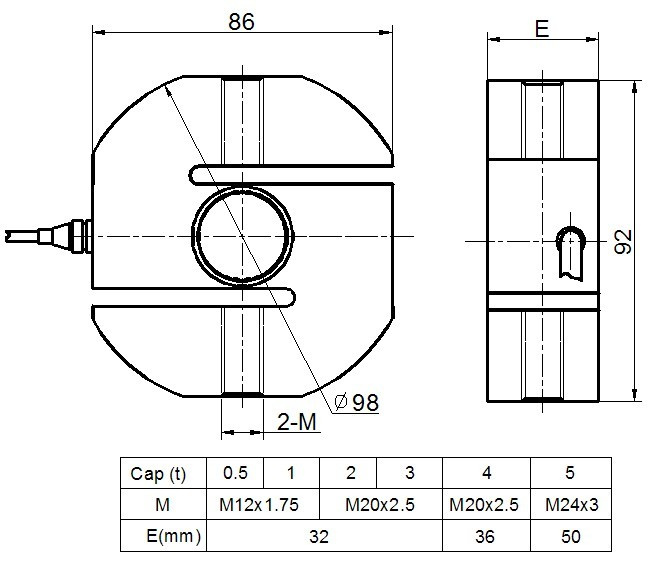

Electrical connection and Dimensions:

Technical Specifications

Specifications:
capacity	t	0.5~ 5
safe overload	%FS	150
ultimate overload	%FS	200
rated output	mV/V	2.0 ± 0.04
excitation voltage	Vdc	9 ~ 12
combined error	%FS	± 0.03
zero balance	%FS	± 1.0
non-linearity	%FS	± 0.03
hysteresis	%FS	± 0.03
repeatability	%FS	± 0.02
creep	%FS/30min	± 0.03
input resistance	Ω	350 ± 5
output resistance	Ω	350 ± 3
insulation resistance	M Ω	≥ 5000 @ 100 Vdc
operating temperature range	ºC	-20 ~ +55
compensated temperature range	ºC	-10 ~ +40
temperature coefficient of SPAN	%FS/10ºC	± 0.02
temperature coefficient of ZERO	%FS/10ºC	± 0.03

Electrical connection:
Excitation+ red Excitation- black Signal+ green Signal- white
Four-core shielded cable with polyethylene. Cable is not connected with elastomer.
Cable length:3 m
Cable diameter :¢5 mm
The cable length could be chose by customer's application.
