| Prod Model: |
300/500V |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Red&Black,White etc |
| Voltage: |
300/300V 50/60Hz |
| Certificate: |
SGS |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Insulation Material: |
PVC |
| Application: |
Speaker,Doorbell,etc |
| Conductor Material: |
Copper/CCA |
| Range Of Application: |
Household |
| Certification: |
SGS |
| Brand: |
Huahao |
Product Description
SPECIFICATION:
1)copper conductor
| model( size) | Specification Description | Insulation Out Dia. | Jacket/sheath
Material Colour |
| (mm) |
| 0.35mm2 | 2CX20/0.15mm | O. D: 2.0X4.0 | PVC/Transparent or any |
| 0.5mm2 | 2CX28/0.15mm | O. D: 2.2X. 4.4 | PVC/Transparent or any |
| 0.75mm2 | 2CX42/0.15mm | O. D: 2.4X4.8 | PVC/Transparent or any |
| 1.0mm2 | 2CX57/0.15mm | O. D: 3.0X6.0 | PVC/Transparent or any |
| 1.5 mm2 | 2CX85/0.15mm | O. D: 3.6X7.2 | PVC/Transparent or any |
| 2.5mm2 | 2CX7X20/0.15mm | O. D: 4.2X8.4 | PVC/Transparent or any |
| 4.0 mm2 | 2CX7X32/0.15mm | O. D: 5.0X10.0 | PVC/Transparent or any |
| 6.0mm2 | 2CX7X48/0.15mm | O. D: 5.5X11.0 | PVC/Transparent or any |
2)CCA conductor hot in middle east market:
| model( size) | Specification Description | Insulation Out Dia. | Jacket/sheath
Material Colour |
| (mm) |
| 0.5mm2 | 2x20/0.18mm | O. D:2.5x5.0 | PVC/Transparent or any |
| 0.75mm2 | 2x30/0.18mm | O. D:2.8x5.6 | PVC/Transparent or any |
| 1.0mm2 | 2x32/0.20mm | O. D:3.2x6.4 | PVC/Transparent or any |
| 1.5 mm2 | 2x48/0.20mm | O. D:3.8x7.6 | PVC/Transparent or any |
| 2.0mm2 | 2x64/0.20mm | O. D:4.0x8.0 | PVC/Transparent or any |
| 2.5mm2 | 2x50/0.25mm | O. D:4.4x8.8 | PVC/Transparent or any |
1) Different series of zips and twist wires
2) Product range: 10GA, 12GA, 14GA, 16GA, 18GA, 20GA and ultra classic strands
3) Conducot available:100% (Tinned)Bare copper wire,copper coated al,
4) PVC material available:simplex color pvc(Red,Black,Blue,White and so on),transparence and so on
5)Color: Transparent, Clear, Red, Black, Yellow, Green, Brown and so on
Packing:

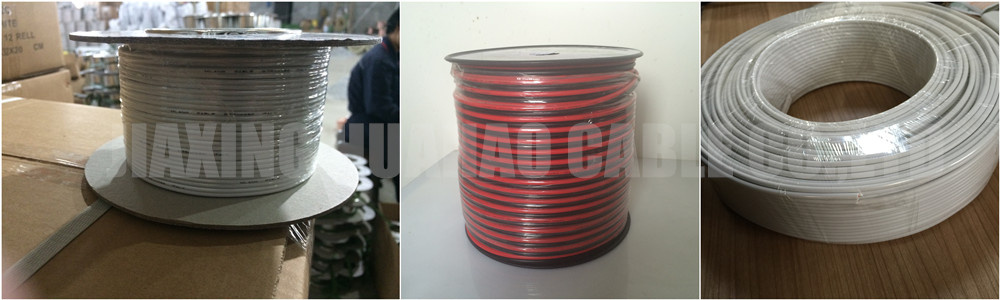

a) Packing lengths: 80yd/toll 100m/roll, 200m/roll, 305m/roll
b) Inner packing: wooden drum, plastic drum, paper drum
c) Outer packing: carton box, pull out box
d) Other packing available according to customer
Special cables can be made according to your requirement.Welcome to negotiate OEM with us!

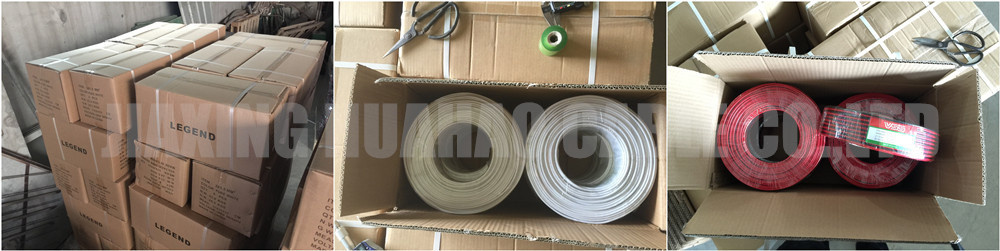

PACKING:PE AND CARTON PACKING
Application:
These cables are used in connecting for audio appliances, home appliances, small electric tolls and instruments.
Construction: Stranded copper conductor, PVC insulated, twin parallel or twisted.
Voltage: 300/500V
