| Prod Model: |
BV-450/750×4 |
| Product Name: |
BV Wire |
| Standard: |
IEC 60227 |
| Product Use: |
Building |
| Cable Voltage: |
450/750V |
| Type: |
Insulated |
| Conductor Type: |
Solid |
| Application: |
Underground |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
RoHS |
| Brand: |
Upward |

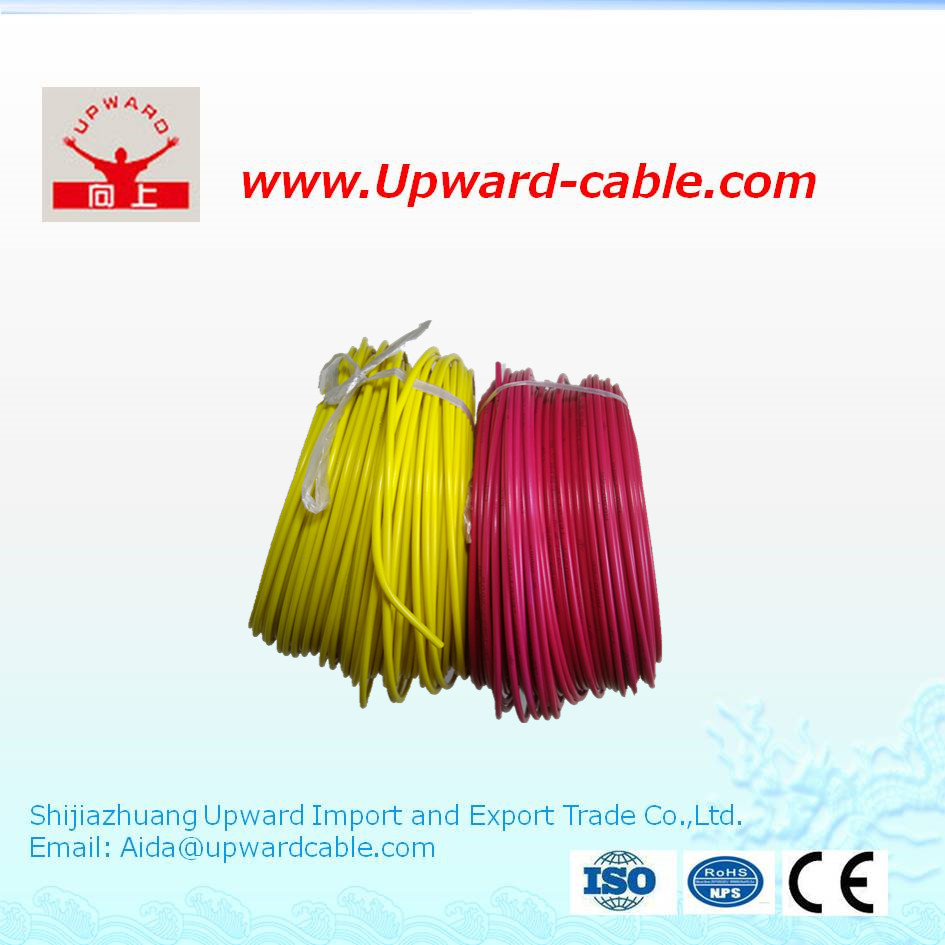

Product Description
upwardcable
colorful industrial electrical cable fire resistant cable electric wires upwardcable
Feature of colorful electrical cables
1.Cable Wire Price Per Meter
2.XLPE Insulated and NON sheath
Parameter of colorful electrical cables
1.Voltage Uo/U 450/750V
2.Long-time working temperature should be lower than 70°C (Can be 90°C or 105°C),
should not be lower than 0°C.
3.Minimum bending radius: minimum bending diameter is two times of cable diameter while test binding
Specification of colorful electrical cables.
Type: Pure Copper Conductor , Single Core CU/XLPE Electric Wire
Strandard: IEC60332, GB/T5023-2008 JB8734-1998
Voltage: 300/500V 450/750V
Specification: Single Core 15AWG etc
Length: 100M 500M 1000M
Type Cross Section(mm2) Conductor Size(No. of Cores/Diameter) Rated Voltage Nominal Insulation Thickness(mm) Reference Weight(kg/km) Application
Solid Type 0.5 1/0.80
300/500V
450/750V
| | Cross Section(mm2) | Conductor Size(No. of Cores/Diameter) | Rated Voltage | Nominal Insulation Thickness(mm) | Reference Weight(kg/km) | Application |
| Solid Type | 0.5 | 1/0.80 | 300/500V
450/750V | 0.6 | 8.0 | Solid, Hard,Suitable for fixed installation |
| 0.75 | 1/0.97 | 0.6 | 11.4 |
| 1 | 1/1.13 | 0.6 | 15.2 |
| 1.5 | 1/1.38 | 0.7 | 21 |
| 2.5 | 1/1.78 | 0.7 | 32 |
| 4 | 1/2.25 | 0.8 | 47 |
| 6 | 1/2.76 | 0.8 | 67 |
| Stranded Type | 1.5 | 7/0.52 | 0.7 | 22 | Stranded, Flexible house wiring, Suitable for indoor applicant. |
| 2.5 | 7/0.68 | 0.7 | 35 |
| 2.5 | 19/0.40 | 0.8 | 34 |
| 4 | 7/0.85 | 0.8 | 50 |
| 4 | 19/0.52 | 0.8 | 51 |
| 6 | 7/1.04 | 0.8 | 71 |
| 6 | 19/0.64 | 0.8 | 72 |
| 10 | 7/1.35 | 1.0 | 118 |
| 10 | 49/0.52 | 1.0 | 127 |
| 16 | 7/1.70 | 1.0 | 177 |
| 16 | 49/0.64 | 1.0 | 184 |
| Flexible Type | 1.5 | 30/0.25 | 0.7 | 22 | Ultra Flexible, Soft Conductor, Suitable for small power equipment instrume |
The cable can be of flame retardance, flame resistance, environment friendly or other property. OEM Available.
Single Core 11AWG Cable Wires is suitable for use in power installations, fixed wiring or flexible connections for electrical appliances like lighting, electronic equipment, instrument and communication equipment with rated voltage 450/750V or less.
Upward Cable specializes in design and manufacture of various kinds of wires and cables. The main products are low voltage cable, high voltage cable, power cable, aluminum alloy cable, fire flame retardant cable, fire resistant cable and high temperature cable.

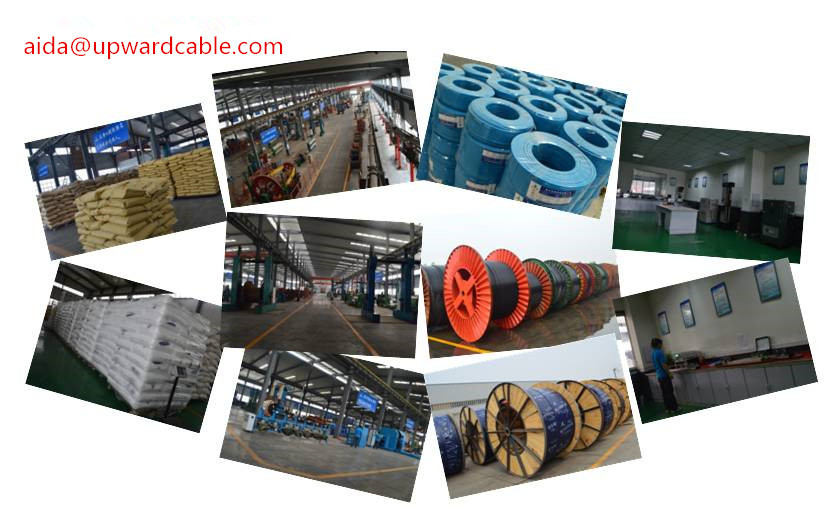

The workshop area is 260000 sq. M. There are 430 staff members in the factory, including 20 experienced engineers, 38 lab assistants and 372 workers. The capital asset reached USD30, 000, 000. We have various advance product lines and equipment, including 125 sets for producing use and 35 sets for testing and measurement use. Our product can perfectly meet requests of different standards, for example GB, IEC, BS and ASTM. We could offer OEM and ODM service for the special cutomer. The annual product capacity of cables and wires is more than 20, 000, 000 kilometers.
As one of the leading manufacturers of cable industry in Hebei Province, we obtained certificate of ISO9001 in 2003. All cables of colliery have gotten the certificate of safety for colliery. Our fire retardant cables are approved with the certification of proof products, and most of them met the standards of China Compulsory Certification (CCC). Moreover, we have been already licensed to enter the "Supplier of the China Government Procurement" by the government.
For years, we are keeping providing products with high quality and good service. Our cables and wires are widely used in the construction of buildings airports, power transportation, urban and rural power network reformation and other main projects. Both of products and the factory are greatly commended by customers. Also, we really highly value the overseas market. Our factory has the qualification to export independently which is awarded by Chinese government. The main products of our company have been exported to Africa, Australia, America, Italy, Singapore and other Asian countries.
