High Quanlity PVC Electrical Insulation Tape

Prod Model:	PVC Tape
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Backing:	PVC
Adhesive:	Rubber
Thickness:	0.18mm
Elongation:	200%
Temperature:	80 Degree
Tensile(N/Cm):	28
Common Size:	19mm*0.13mm*10 Yard
Adhension(N/Cm):	1.5
Voltage Breakdown:	More Than 40kv/Mm
Features And Application:	Wrapping Electric Wires and Cables
Application:	Electrical Base, Shell
Type:	Insulation Tape
Chemistry:	Hybrid Insulation
Material:	Plastic
Thermal Rating:	250 250
Maximum Voltage:	>100KV
Color:	Colorful
Brand:	Maxwel

Product Description

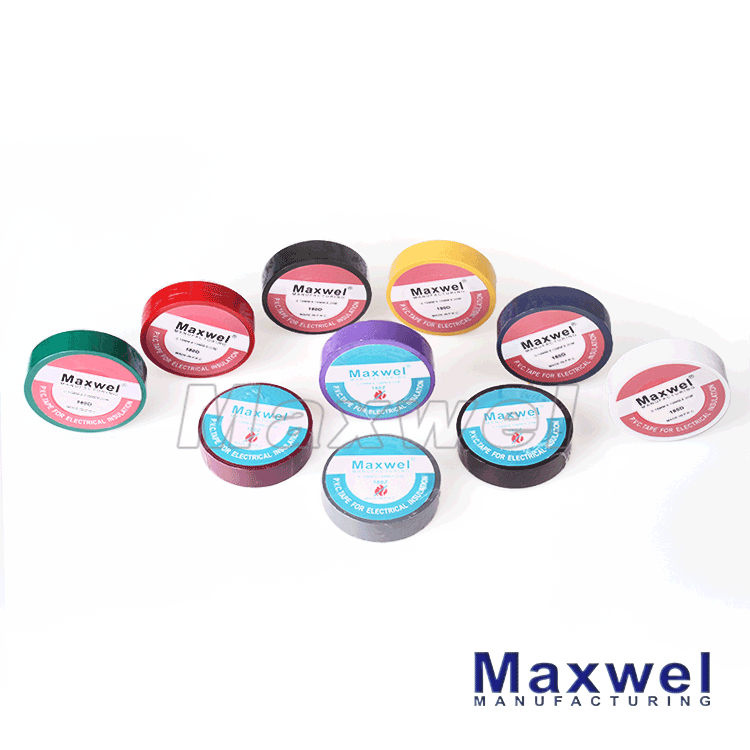

PVC Insulation Electrical tape

Vinyl tape. The common exporting size is 0.19mm*0.13mm*10 yard

Features:
1. Width: 18, 19, 20, 25, and 50mm
2. Total thickness: 0.15mm
3. Raw material: Vinyl film
4. Tensile: 15N/cm
5. Elongation: ≤ 260
6. Dielectric strength: ≥ 25kV/mm
7. Colors: Black, yellow, and red

Available in log rolls and finished cutting rolls
Excellent elongation and dielectric strength, no residue
Suitable for wrapping electrical wires, cables, and automobile harness
With RoHS certifications
Quality guarantee!
Competive price!
Promot delivery!
Perfect serice!

Standard exporting package

Free samples are provided, frieght collect

Application: Used for wrapping electrical wires and cables etc.



Code	Backing	Adhesive	Thickness (mm)	Adhesion (N/cm)	Tensile (N/cm)	Elongation (%)	Temperature	Voltage Breakdown (KV/mm)	Features  & Application
100D	PVC	rubber	0.10	1.5	14	160	80	≥ 40	Used  for  wrapping  electric  wires  and  cables  etc.
110D	PVC	rubber	0.11	1.5	15	160	80	≥ 40
130D	PVC	rubber	0.13	1.5	17	160	80	≥ 40
150D	PVC	rubber	0.15	1.5	22	200	80	≥ 40
165D	PVC	rubber	0.165	1.5	25	200	80	≥ 40	Be  up  to  the  UL  standard,   used  for  wrapping  electric  wires  and  cables  etc.
180D	PVC	rubber	0.18	1.5	28	200	80	≥ 40
190D	PVC	rubber	0.19	1.5	28	200	80	≥ 40
200D	PVC	rubber	0.20	1.5	30	220	80	≥ 40
100Z	PVC	rubber	0.10	1.5	14	160	80	≥ 40	Flame  retardant,   used  for  wrapping  electric  wires,   automotive  wire  harness  and  cables  ect.
110Z	PVC	rubber	0.11	1.5	15	160	80	≥ 40
130Z	PVC	rubber	0.13	1.5	17	160	80	≥ 40
150Z	PVC	rubber	0.15	1.5	22	200	80	≥ 40
165Z	PVC	rubber	0.165	1.5	25	200	80	≥ 40	Be  up  to  the  UL  standard,   flame  retardant,   used  for  wrapping  electric  wires,   automotive  wires  harness  and  cables  etc.
180Z	PVC	rubber	0.18	1.5	28	200	80	≥ 40
190Z	PVC	rubber	0.19	1.5	28	200	80	≥ 40
200Z	PVC	rubber	0.20	1.5	30	220	80	≥ 40
