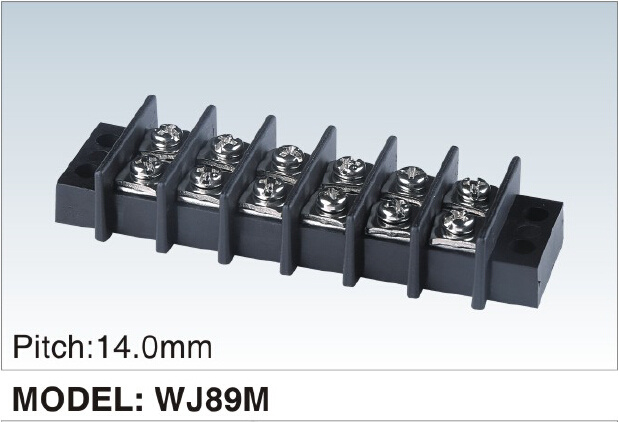

High Rated Current Double Row Barrier Terminal Block Connector (WJ89M-14.0)

Name: High Rated Current Double Row Barrier Terminal Block Connector (WJ89M-14.0)
Brand: all-electronics-online.com
SKU: 794814895
Availability: InStock
Rating: 4.7 (46 reviews)

Price:	US $ 0.1-0.5/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	WJ89M-14.0
Pitch:	14.0mm
Application:	PCB
Environmental Protection:	Resistance to Environmental
Connection Mode:	In-Line Connector
Shape:	Rectangle
Contact Termination Form:	Screws Fixed
Brand:	Wanjie

Product Description

Why choose us:
1. Good reputation
2. The quality of the products
3. Competitive price
4. Quality of Service
5. Free samples
6. Quick feedback

CIXI WANJIE ELECTRONIC CO., LTD was founded in 1992 and specializes in the production of terminal blocks. The company have passed the ISO9001:2008, ISO14001, OHSAS18001 quality management system and our products have passed UL, VDE, TUV, RoHS, CQC, CB, CE certification.

For better service to the customers, we can also design, develop and produce according to customer's requirement for OEM/ODM products.With the advanced administration system, good quality, competitive price and good service, our products are sold far to America, Europe, Middle East, Asia, Africa etc and get good comment from the customers.

Hope to cooperate with you!
www.china-wj.com

WJ89M-14.0

MATERIAL
Screws	M3.5 Steel Ni Plated
Pin Header	Copper alloy, Sn Plated
Housing	PA66, UL94V-0

ELECTRICAL
Standard	UL	IEC
Rated voltage	600V	450V
Rated current	30A	41A
Wire range	22-10AWG	6.0mm²
Contact Resistance	20mΩ
Insulation resistance	500mΩ /DC500V
Withstanding volatge	AC 2000V/1 min

MECHANICAL
Temp.range	-40º C ~ +105º C
Torque	8.16kgf-cm/0.8Nm/7.0Lbin
