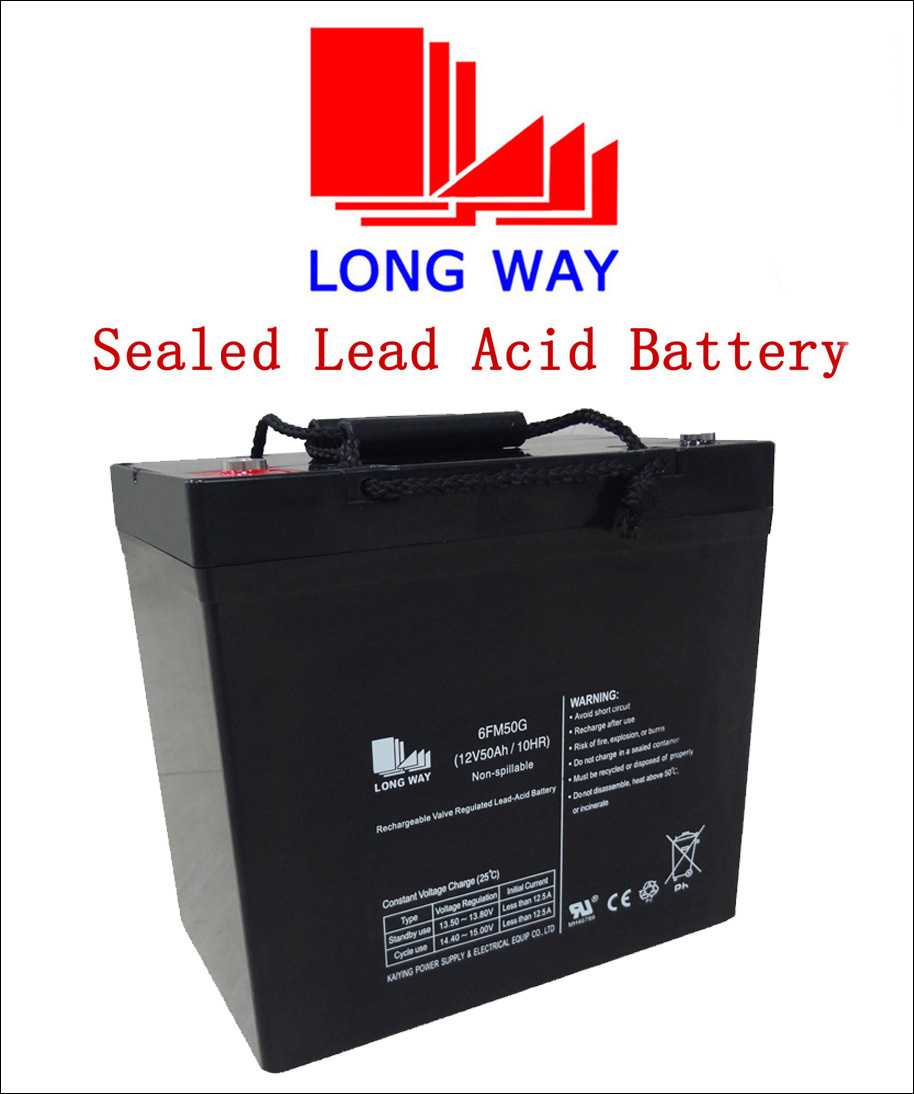

High Reliability AGM Lead Acid Chargeable Battery for UPS System

Prod Model:	6FM50amp
Color:	Grey or Black or Orange
Terminal:	Nb/B/F20/F9
Size:	L229*W138*H208(Th213)mm
Weight:	16.1kg/35.49lbs
Lead-Time:	20-25days
Applications:	UPS, Solar Light System, Medical Equipment, Invert
Type:	Lead-Acid Batteries
Usage:	Boat
Nominal Voltage:	12V
Discharge Rate:	Low Discharge Rate
Shape:	Square Battery
Rechargeable:	Chargeable

Product Description

LONGWAY 12V emergency light UPS sealed lead acid rechargeable battery 50ah

LONGWAY lead acid battery used for UPS / AGM / VRLA / SLA maintenance-free battery
I. Power storage Solar & Wind System (Deep Cycle Battery)
II. Standby use UPS battery, Emergence & Alarm, Lighting & Security, Sounding, etc...
III. Telecommunication and stationary lead acid battery.
12V - 0.8Ah to 250Ah used for power storage and backup for standby power & deep cycle use.

*Specifications:

Cells per Unit	6
Normal Voltage	12V
Capacity	50Ah@20Hr-rate to 1.75V per cell@25ºC
Weight	Approx.(16.1±3%kg) (35.49lbs)
Maximum Discharge Current	500A(5sec)
Internal Resistance	Approx. 8mΩ full charged @25ºC
Operating Temperature Range	Discharge: -20ºC~60ºC Charge: 0ºC~50ºC Storage: -20ºC~60ºC
Nominal Operating  Temperature Range	25ºC±3ºC(77ºF±5ºF)
Float Charging Voltage	13.7~13.9VDC/unit Average @25ºC
Maximum Charging Current	13.5A
Equalization and Cycle Service	14.4V~15.0VDC/unit Average @ 25ºC
Self Discharge	Self-discharge ratio less than 3%per month at 25ºC.
Terminal	Terminal F20/F9
Container Material	ABS(UL94-HB)  *Flammability resistance of (UL94-V0) can be available upon request

*General Features
Stable quality&high reliability;                 Sealed construction;
Environmentally friendly;                          Maintenance-free operation;
Low pressure venting system;               Heavy duty grid;
Low self discharge;                                  UL component recognition(MH46789).

*Applications
² Alarm systems, Cable television, communications equipment, control equipment,
² Computers, electronic cash registers, electric test equipment,
² Electric powered bicycle and wheel chair,
² Emergency lighting systems, fire&security, geophysical equipment,
² Marine equipment, medical equipment,
² Micro processor based office machines, portable cine&video lights,
² Power tools, solar powered systems,
² Telecommunications systems, television&video recorders, toys,
² Uninterruptible power supplies, vending machines.

For more information, please contact us and welcome you! !
