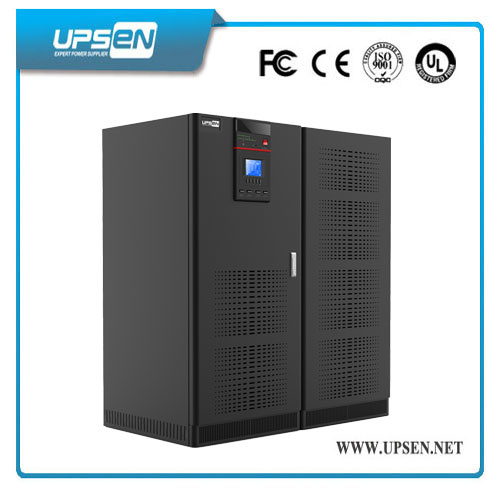

High Reliability High Efficiency pure sine wave Online UPS 100K-400KVA
Low Frequency Strar Series LF33 100K-400KVA(3Ph in/3Ph out)
Key Features
1:0.9 output power factor
2:Standard input/output filter improves the system EMC performance
3:3-stage extendable charging design for optimized battery performance
4:The efficiency of the machine is more than 94%, and reach 98% in ECO mode.
5:UPS can be compatible to the generator, highly improve the generator input efficiency, save the energy.
6:Extra wide input voltage and frequency range make it adapt to severe power grid environment
7:Intelligent battery management maintains battery automatically to prolong the battery life
8:Advanced distributed active parallel technology can realize parallel operation of 6 UPS units without the need of centralized bypass cabinet
9:Immediately convention output ,meet the requirements of high standard of precision equipment for power supply.
10:High level diagnostics: event log with 128 messages, states, measurements and alarms-available from the built-in LCD in several languages
Application
Mainly used in large IDC rooms, bank/securities settlement center, communication network management center, semiconductor product lines and large automation production and its control system etc.
Technical Specification
| Low Frequency Strar Series LF33 100K-400Kva |
| Model | LF33 Series |
| Rectifier Type | 6p | 12p | 6p | 12p | 6p | 12p | 6p | 12p | 6p | 12p |
| Rated Nominal | 120KVA/108KW | 160KVA/144KVA | 200KVA/180KW | 300KVA/270KW | 400KVA/360KW |
| Rated input voltage | 380/400/415VAC 3-phase 4-wire |
| Rated frequency | 50/60HZ |
| Input parameters |
| Input voltage range | ±25% |
| Input frequency range | 45Hz~65Hz |
| Input soft start function | 0-100% 5-300settable |
| Input power factor | more than 0.98(If harmonic filter is added) |
| Input harmonic current (THDi) | less than 4.5%(If harmonic filter is added) |
| Bypass |
| Bypass voltage range | -20%~+15% |
| Bypass frequency range | 50/60HZ±10% |
| Output parameters |
| Inverter output voltage | 380/400/415VAC 3-phase 4-wire |
| Voltage stability | ±1%(Steady status),±3%(Transient status) |
| Frequency | 50/60Hz |
| Mains power synchronization window | ±5% |
| Actually measured frequency accuracy (internal clock) | 50/60Hz±0.01Hz |
| Output power factor | 0.9(Output 90kW per 100kVA) |
| Transient response time | less than 5ms |
| Inverter overload capability | At 0.9 power factor, 110% for 1 hour, 125% for 10 minutes and 150% for 60s |
| Short circuit current from inverter | 3ph 1.5ln for 5seconds,1ph 2.9ln for 5seconds |
| Maximum Bypass capability | 1000% for 100ms |
| Phase shift | With 100% balanced load | less than1° |
|
| Characteristic | With 100% imbalance load | less than1° |
| Total harmonic | 100% linear load | less than1% |
|
| Distortion(THDv) | 100% non-linear load | less than3% |
| System efficiency (full load) | Up to 94% (inverter efficiency is up to 98%) |
| Rectifier output parameters |
| Charger output voltage stability | 1% |
| DC ripple voltage | ≤1% |
| Operating environment |
| Operating temperature range | 0~40°C |
| Storage temperature | -25~70°C(Without battery) |
| Relative humidity | 0~95% No condensation |
| Maximum operating height | ≤Elevation 1000m, for elevation above 1000m, derate by 1% for every increase of 100m |
| Noise (1m) | 58-68dB |
| Protection level | IP20 |
| Standard | Safety: IEC60950-1 IEC62040-1-1 UL1778 EMC IEC62040-2 CLASS C2 EN50091-2 CLASS A Design and Test IEC62040-3 |
| Physical parameters |
| Weight (kg) | 980 | 1420 | 1200 | 1750 | 1350 | 2000 | 1600 | 2200 | 2100 | 2750 |
| Width(mm) | 900 | 1250 | 1250 | 1640 | 1250 | 1640 | 1640 | 2280 | 2280 | 2280 |
| Depth (mm) | 855 | 855 | 855 | 855 | 855 | 855 | 855 | 855 | 855 | 855 |
| Height (mm) | 1900 | 1900 | 1900 | 1900 | 1900 | 1900 | 1900 | 1900 | 1900 | 1900 |
| *Specifications change without prior notice |
