Shenzhen Eyevisontech Electronics Co., Ltd. >> High Reliable 8kVA Computer UPS Battery Backup with Stable Voltage

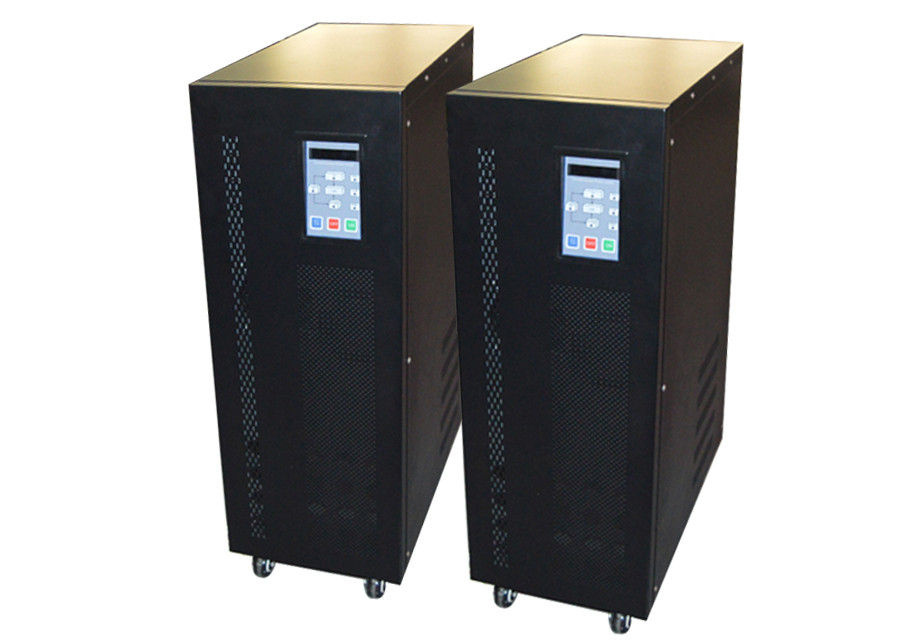

High Reliable 8kVA Computer UPS Battery Backup with Stable Voltage

High Reliable 8kVA Computer UPS Battery Backup with Stable Voltage
Price: Negotiable/Piece
Trade Terms: FOB,CFR,EXW
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Money Gram
Prod Model: GP1108KS
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type: Lead-Acid Batteries
Usage: Electric Bicycle
Discharge Rate: High Discharge Rate
Shape: Square Battery
Rechargeable: Chargeable
Nominal Voltage: 220V or 230V

Product Description



High Reliable 8KVA Computer UPS Battery Backup With Stable Voltage


Quick Detail:

1. Perfect protection function, standard configuration have lightning and surge protection
2. Wide input voltage design, the remarkable grid adaptability
3. Zero switching time, pure sine wave output
4. Durable and reliable industrial design, strong load compatibility
5. Double conversion on-line design, including output isolation transformer
6. Intelligent monitoring function, can optional SNMP card
7. Large-screen high-definition LCD Chinese and graphical display


Application:

1. monitor,security systems, information center
2. Industrial and mining equipment, chemical industry, petrochemical production equipment
3. Others (the valuable equipment that do not allow outage)
4. centralized power supply for Workstations, Medium and large data centers department
5. Industrial automatic equipment, SMT chip mounter equipment
6. Transmitter station, control room, medical instruments
7. Factory production equipment


Technical specifications and parameters:

Model

GP1108KS

Nominal capacity (VA)

8KVA

Nominal capacity (VA)

220 VAC or 230VAC

Input voltage range

(150-310)VAC

Out put voltage range

50 (60) Hz±25%

Frequency tracking rate

1Hz/s

The input power factor (PF)

>0.98

Maximum input current

45A

output voltage

220VAC±1%

Output frequency (battery mode)

50/60Hz±0.5%

power factor

0.8 Lag

Waveform distortion

≤2% linear load,≤3% nonlinear load

overload capacity

Output will exchange bypass the power supply after overload110-150% maintain 5min;Output will exchange bypass the power supply after overload 150% maintain 300ms

Protection function

overload,Battery low voltage,output voltage,output over voltage,system fault,over-temperature,Current limiting protection is 1.3 times of the nominal current

switching time

0ms

battery voltage

192VDC

charging time

8-10hour finished 90% capacity

LED display

Indicates a battery low voltage,AC,contravariant,bypass,UPS abnormal,Overload Indication

LCD

Input and output voltage,frequency,battery voltage,load percentage,inner temperature

operating temperature

0-40ºC

relative humidity

0-95% Non -condensate

Storage Temperature

-25ºC-55ºC

Noise

<55dB( distance box 1M )

Net Weight (kg)

69

GrossWeight (kg)

89

Size
(W×D×H)mm

230*580*560



Competitive advantages:

1. Leading and professional manufacturer in CCTV industry
2. High quality
3. Competitive and reasonable price
4. Best pre-sale,sale and after-sale service
5. Professional technical support
6. CE,FCC,RoHS passed
Shenzhen Eyevison tech Co., Ltd is set research and development, production, sales and engineering for the integration of high-tech security enterprise.

The company now has the world's leading digital video technology. Products include video acquisition card, cameras, high-speed ball machine, embedded hard disk video recorders, network video server, and other products.

Company technical force is abundant, has a group engaged in the development and construction of the new product development and professional technical team. Products are exported to Europe, North America, South America, Middle East, Asia, Europe and the United States, and many other countries. Cooperation with more than 30 countries and regions.

Path of development in the future, we will closely follow the industrial upgrade, the application of new techniques, fully integrated domestic and foreign advanced production and service management concept, to further improve enterprise's core technology competitive advantage, make enterprises at home and abroad to the largest and most professional production base of security.
