| Prod Model: |
CNWC |
| Material: |
Mainly CRC |
| Cabinet Roof: |
Slanting Canopy Type |
| Cabinet Relative Humidity: |
≤95%, 25ºC |
| Operating Temperature: |
0~55ºC |
| Thermal Insulation: |
10mm Thick ,Non-Flammable Insulation Foam |
| Phase: |
Depend on The Mechine |
| Type: |
Depend on The Mechine |
| Protection: |
IP55 |
| Application: |
Outdoor Battery |
| Standby UPS: |
Depend on The Mechine |
| Output Capacity: |
Depend on The Mechine |
| Equipment Mode: |
Depend on The Mechine |
| Brand: |
Consnant |
Product Description

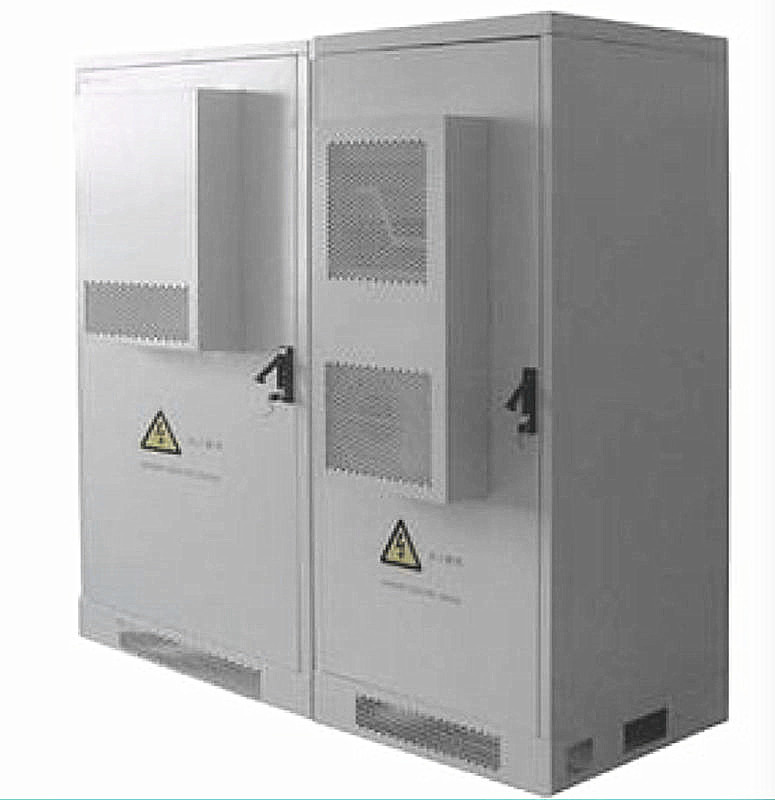

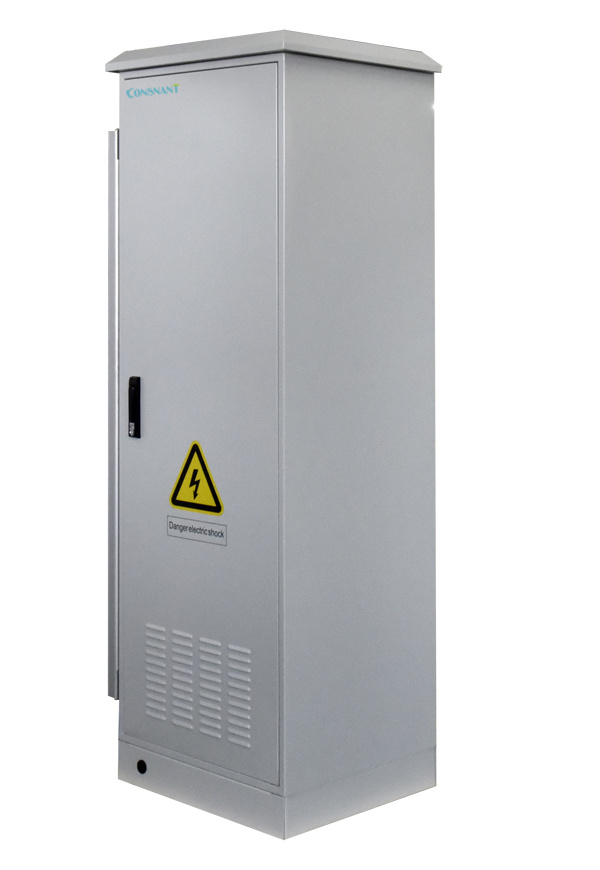

Outdoor Battery Cabinet
* Fully customized solution: size, design, materials
* High security
* Equipment integration for a total packaged solution.
Features:* Outdoor Battery Cabinet is designed to provide a secure and clean environment
for equipment in harsh or outdoor environments.
* Typical applications may include communication and telecommunication
installations, the housing of data and control equipment.
* The cabinet can accommodate the application equipment, DC or AC backup
power, and batteries.
CRC sheet frame, roof, and Aircon/HEX/Peltier covers Steel sandwich panel constructionAttractive powder coat finishPolyurethane insulationVandal resistant 3 point lockingGalvanised steel base48V DC Air-conditioning or Heat Exchanger (HEX) for heat removalFiltered air inlet/outlet for battery compartment (HEX version)240V AC Heater (HEX)Accommodates up to 10 battery
Technical parameters: | Item | parameter |
| Basic Specification |
| Internal dimension | OEM battery size + 100 mm free space on both sides from battery + 200 mm from cabinet bottom + 450 mm free space on top.
Fixed side panel and other supporting member of the cabinet is 1.6mm thick CRC sheet |
| Cabinet roof | Slanting Canopy type |
| Base plate | 2.0mm thick CRC sheet |
| Base high | Clear ground clearance of 300 mm from surface |
| Wall material | 1.6mm CRC sheet |
| Cable Entry Arrangement | 6x PG 29 Gland at bottom cover |
| Door & Locking | Front door with IP Hood with two~three point door locking arrangement; Rear door with IP Hood & has locking arrangement through tower bolts in top and bottom of door from inside;External Pad lock arrangements for front & rear doors. |
| IP | IP55 |
| Cable laying arrangement. | Cable laying arrangement on both inner side panel of cabinet through hooks |
| Document Holder | Document Punch on front door with PVC Sheet to hold the Documents |
| Operating temperature | 0~55ºC |
| Cabinet relative humidity | ≤95%, 25ºC |
| Air Circulation & Heat exhaust arrangement |
| Temperature control | Fresh air circulation from well sized air vents situated on lower half of side panel and exhaust through fans on top through canopy. |
| Other info |
| Sealing Arrangement | Proper IP 55 Sealing kit should be used for sealing. |
| Thermal Insulation | Internal Insulation: 10mm thick and of non-flammable insulation foam at all seven sides of cabinet |
| Earthing Arrangement | Copper earthing bar (on one inner side of the cabinet) |
| Fan | There are top Fan housing unit for 4 fan position (There is Fan Controller to control the FAN operation (allowed Delta T = -5 Deg C ) and to report following alarms- through Potential free NO/NC Contacts (FAN Failure, High Temp)) |
| Fan CFM & Filter | 3 Fans 48 V DC 100 CFM ( N+1 Config)/ Filter of suitable Grade for normal Battery Operation |
| Cabinet Design Life | Modular Construction, using CRC Sheet duly powder coated to sustain outdoor life of 15 years |
