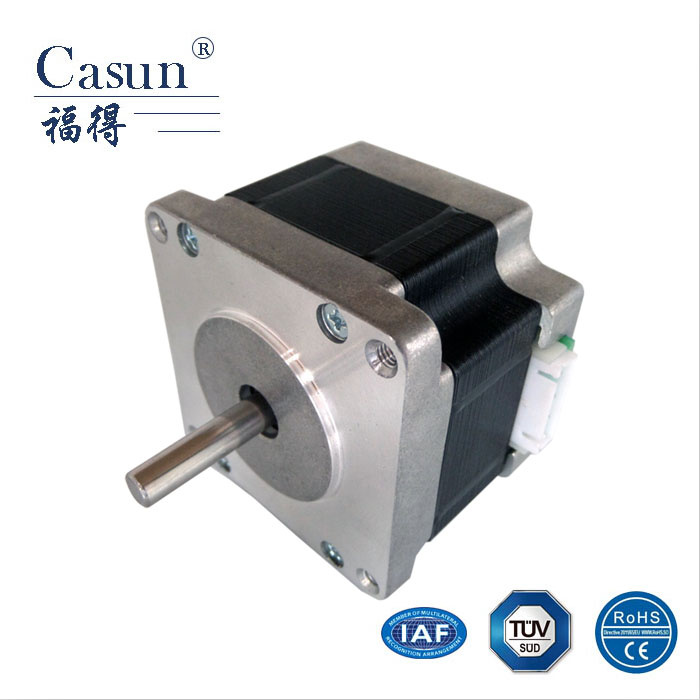

High Speed 1.5A 1.2degree NEMA 24 Stepper Motor 60mm for CNC Machine

Name: High Speed 1.5A 1.2degree NEMA 24 Stepper Motor 60mm for CNC Machine
Brand: all-electronics-online.com
SKU: 829890785
Availability: InStock
Rating: 4.7 (27 reviews)

Price:	US $ 10-15/Piece
Min Order:	10/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	60SHC0301-26M
Holding Torque:	750mn.M
Current:	1.5A
Voltage:	9.3V
Key Words:	NEMA 24 Stepper Motor
Mass:	0.45kg
Resistance:	6.2
Samples:	Can Be Customized
Frame Size:	60*49mm
Step Angle:	1.2
Phase:	3
Number Of Stator:	Three-Phase
Excitation Mode:	HB-Hybrid
Operate Mode:	The Three Single Phase
Type:	Electromechanical
Application:	CNC Machine
Number Of Poles:	3
Certification:	Ce,RoHS
Brand:	Casun

Product Description

Product Description

1. NEMA 24 stepper motor, high performance, low heat, low virbration, low noise.

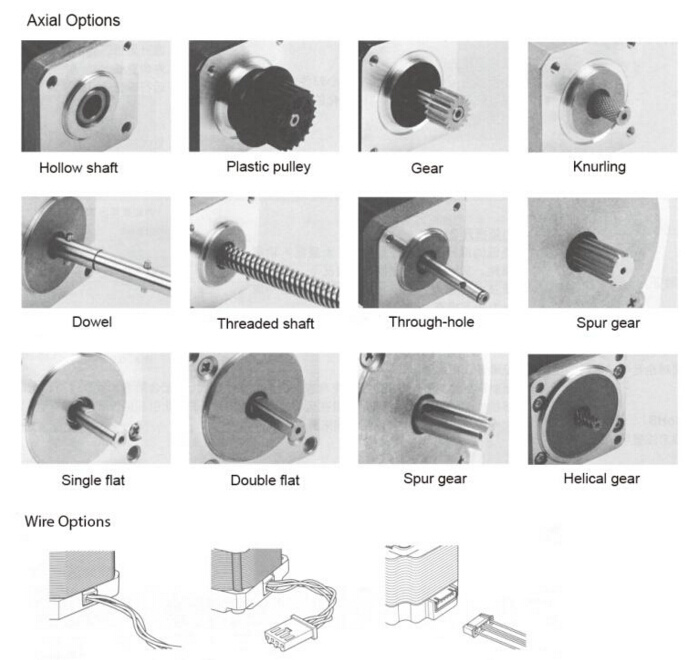

2. Shaft length can be customized.

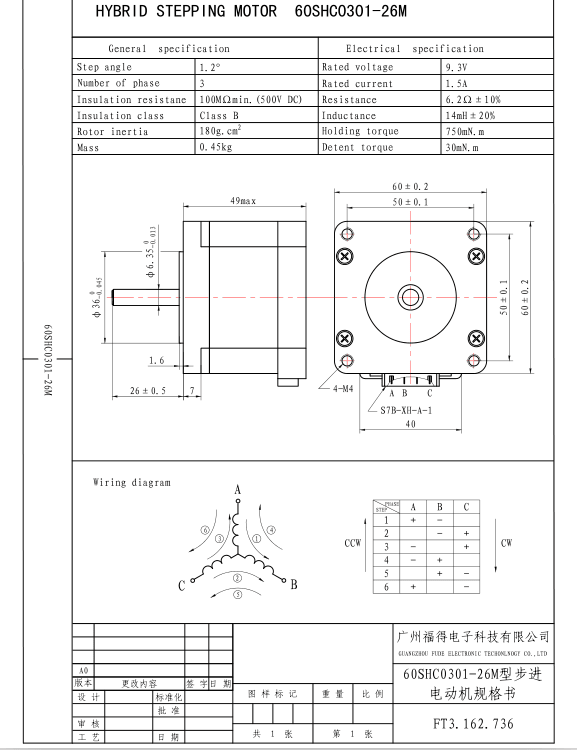

Motor Drawing

Motor Specification:

Modle	Holding Torque	Rated Current	Resistance per phase	Inductance per phase	Detent Torque	Rotor inertia	Wiring diagram	Motor Length
Modle	mN.m	A	Ω	mH	mN.m	g.cm²	"Y"or "△"	mm
60SHC0203-28N	600	1.5	6.0	9.5	30	180	Y	44
60SHC0301-26N	750	1.5	6.2	14	38	220	y	49
60SHC0401-24N	800	1.5	4.8	7.5	40	260	△	53
60SHC0406-24N	900	1.5	6.0	10	40	260	y	53

You can choose any other model.

Packing&payment&Delivery

Payment Term	T/T, PayPal, Western Union, Cash, Escrow
Accepted Payment Currency	USD, CNY
Packaging Detail	cusomized packages, carton box with foam
Delivery Detail	10 Day(s)
Delivety Port	huangpu,luogang,guangzhou
Accepted Delivery Terms	FOB,CIF,EXW

Guangzhou Fude Electronic Technology Co., Ltd, has over 10 Years Manufacturing Experiences. It is a manufacture of stepper motors with well-equipped testing equipment and strong technical force.

It is located in Baiyun district, Guangzhou city with more than 7000 square meters.

Quality is our culture. Our manufacture gains a good reputation with good management mechanism, advanced technology, strong force of R&D, excellent quality and perfect after-sales services. There are many departments in our company including R&D Dept., Engineering Dept., Production Dept., Marketing Dept., After-sales services Dept. And Personnel Dept.

To meet market developments and customers' needs, our company will continue to improve the product structure, operational management, as well as comprehensive quality of the staff. With brand-new products, vigorous power and stable paces, we will work hand-in-hand with customers home and abroad to create brilliant future!

Our Core Competencies are Hybrid stepper motor, Reduction Gearbox Stepper Motor, Linear stepper motor, Stepper Motor Driver!

Our value Message is with us your money in safe your business in safe!

Please dont hesitate to contact us to get more details, we are waiting for you!
