| Prod Model: |
25PM |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Wight (Kg): |
0.04 |
| Step Angle: |
15° |
| Body Length(mm): |
16.5 |
| Current: |
0.25 a |
| Guarantee Period: |
Three Years |
| Color: |
White |
| Place Of Origin: |
Guangdong, China (Mainland) |
| Packing Method: |
Box with Polyfoam |
| Size: |
25*16.5mm |
| Number Of Stator: |
Two-Phase |
| Excitation Mode: |
PM-Permanent Magnet |
| Operate Mode: |
The Three Single Phase |
| Type: |
Magnetic-Electric |
| Certification: |
CE |
| Brand: |
Rb |
Product Description

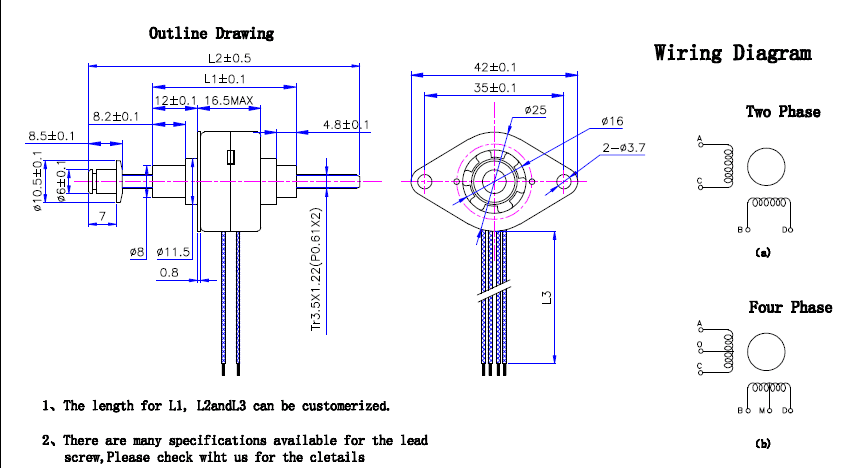

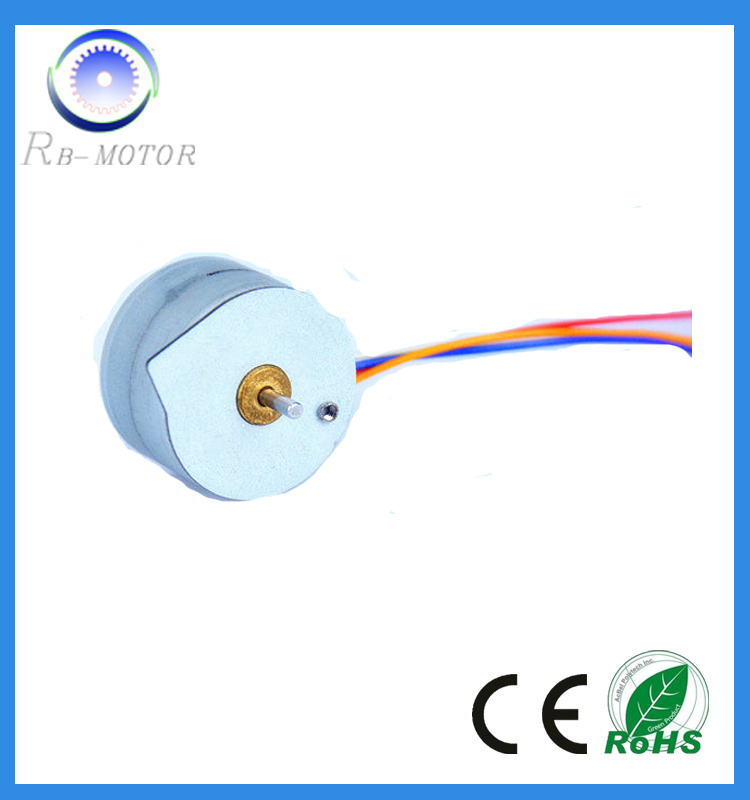

Product Description.- Two phase 15 degree 25*16.5mm PM Stepper Linear Motor .
- Shaft length can be customized, and it can be round shaft or shaft with flat side.
- We produce stepper motor from nema11 to NEMA 34, and offer you suitable drivers for all these motors.
Technical Specification| Model No. | Step Angle | Number of Winding | Leads of motor | Winding Resistance | Winding Inductance | Rated Current | Rated Voltage | Max.pull force | Displacement resolution | Max starting rate | Max slewing rate | Rotor Intertia | Weight | body length |
| | ° | | | Ohm ±10% | mH ±20% | A/phase | DC V | N | mm/step | PPS | PPS | g.cm² | Kg | mm |
| 25PM30002-01 | 15 | 2 | 4 | 7.6 | 3.5 | 0.25 | 1.9 | 9.8 | 0.05 | 500 | 1750 | 2.7 | 0.040 | 15.4 |
| 25PM3003-01 | 15 | 2 | 4 | 6.9 | 4 | 0.25 | 1.73 | 9.8 | 0.05 | 600 | 3000 | 2.7 | 0.040 | 16.5 |
| 25PM30005-01N | 15 | 2 | 4 | 7.9 | 4 | 0.25 | 2 | 12 | 0.05 | 500 | 2500 | 2.7 | 0.040 | 16.5 |
| 25PM30006-01N | 15 | 2 | 4 | 7.9 | 4 | 0.25 | 2 | 12 | 0.05 | 500 | 2500 | 2.7 | 0.040 | 16.5 |
Application Fields
Our products can be applied to printing equipment ,advertisement instrument ,ATM machines, stage light equipment ,CNC machine, automatic assembly equipment, camera lenses, carving machine, cutting machine, electric vehicles, packing machine, industrial control, intelligent ball, laser engraving, textile machine ,game machine ,robots and so on.
Operating Principle
Our stepper motor is made up of rotor and stator winding magnet coil. A certain electric current goes through the stator winding timely, then produces a rotating magnetic field within the motor. Under the action of magnetic suction, the rotor will follow this creates a rotating magnetic field, the stator and rotor flux in each chain, produce rotary torque output. Packaging &Shipping
1,Inner packing(foam with waterproof plastic bag packing)+Outer packing(Carton packing)
2,Export wooden box packaging for products.
3, Other package as you required.
Warning:
Make sure the motor connect to a constant current or chopper drive controller before you test motor.
Connecting the motor directly to a power supply will destroy the motor.

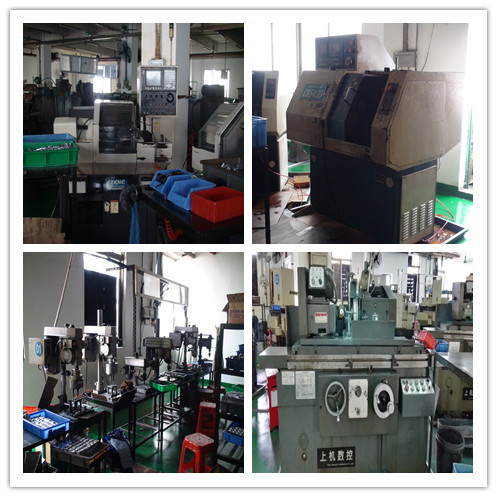

Our Equipments:
