High Speed Fiber Laser Marking Machine for Plastics Price

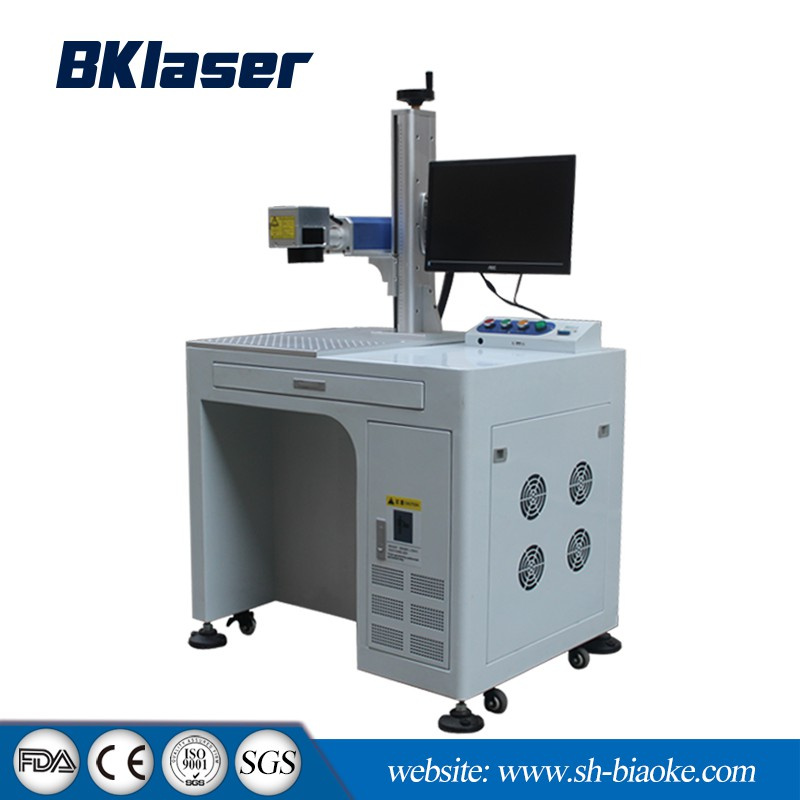

Name: High Speed Fiber Laser Marking Machine for Plastics Price
Brand: all-electronics-online.com
SKU: 835961765
Availability: InStock
Rating: 5 (82 reviews)

Price:	US $ 3500-8000/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BK-G20
Laser Source:	Max, Ipg
Marking Speed:	7000mm/S
Marking Depth:	0-1mm
Marking Range:	100*100mm(Standard)
Min Character:	0.3mm
Warranty:	2 Years
OEM/ODM:	Accepted
Operating System:	Windows 7
Color:	Blue, White or Custom
Support Format:	Plt, Ai, BMP, Psd, Dxf, etc.

Product Description

High speed fiber laser marking machine for plastics price

Characteristics:
1. The utility model can be applied to small or small size and easy moving workpiece. The utility
model can mark all metal materials and a part of non-metal materials, and the marking effect is
clear and beautiful, and the marking speed is 2-3 times as high as that of a traditional
semiconductor laser marking machine. The model does not need an external water cooling system,
and can be adapted to the environment where the environment is bad and the temperature drop is
great.
2. Processing speed is 2-3 times the traditional laser marking machine.
3. Air cooling fiber laser, no consumables, low maintenance, high photoelectric conversion rate,
small power consumption (less than 800W), the use of low cost.
4. Integrated pulley design with reasonable design which can be easy to moved, it adapt to a wide
range of factory layout and flexible product laser printing.
5. It has strong environmental adaptability and it can work continuously under the environment of
shock, shock, dust and humidity. It is easy to realize the coupling with the optical fiber, and can
realize long distance work.
6. It can mark bar code, two-dimensional code, text, graphics, regular and irregular transaction.
7. Software runs on WINDOWS platform, Chinese / English interface, compatible with AUTOCAD,
CORELDRAW, PHOTOSHOP and other software file formats, such as PLT, PCW, DXF, BMP and
so on, and also can use SHX and TTF fonts directly.

Technical Parameters

Model	BK-G10	BK-G15	BK-G20	BK-G30		BK-G50
Power	10W	15W	20W	30W		50W
Laser Wavelength	1064nm
Frequency Range	20-80KHZ
Beam Quality	<2				<3		<5
Engraving Line Speed	≤7000mm/s
Minimum Width	0.03mm(Depends on the material)
Minimum Character	0.3mm(Depends on the material)
Repeat Accuracy	±0.003mm
Power supply	90-260V/50Hz-60Hz
The Highest Marking Workpiece	300mm(Select 170*170mm ,Highest 250mm)
Power Consumption	500W						1000W
Engrave Depth	≤0.3mm				≤0.5mm		≤1.0mm
Operation System	WinXP/Win7
Cooling Mode	Built in air cooling
Engrave Range	Standard 110110mm(optional 140140mm 200*200mm-300x300mm)
File Formats	All fonts in WINDOWS system
Contour Size of The Unit(s)	Contour Size :6508001450mm(widthDepthHeight) Movements itinerary :500mm operating platform :320*280mm
Machine Total Weight	95Kg

Our Fiber Laser Marking Machine is widely applied in many areas.

1. Sheet metal fabrication	6. Elecrical cabinet	11. Elevator
2. Automotive parts	7.Aviation&Aerospace	12. Lighting lamps
3. Metal carfts & decoration	8. Hardware	13. Advertising
4. Furniture	9. Kitchenwareequipment	14. Fitness equipment
5. Medical equipment	10. Agriculturalmachinery	15. watches & glassware

Our Service
Pre-sales services
a. Inquiring and consulting support;
b. Sample testing support;
c. Visiting our factory.
After-sales services
a. 2 year guarantee period for product quality;
b. Free training for machines installation and operation;
c. Lifelong maintenance and spare parts supply.

Our company supplies different kinds of products. High quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.

Main business: Laser marking machine, laser cutting machine, laser welding machine, Laser cleaning machine and a series of testing machine.

Our products exported to Japan, South Korea, Spain, Italy, Brazil, Chile, Jordan, India, Ukraine and other countries.

We have CE ISO FDA SGS Cerficate about our laser products.

We will serve better service for our company.

Welcome to join us.
