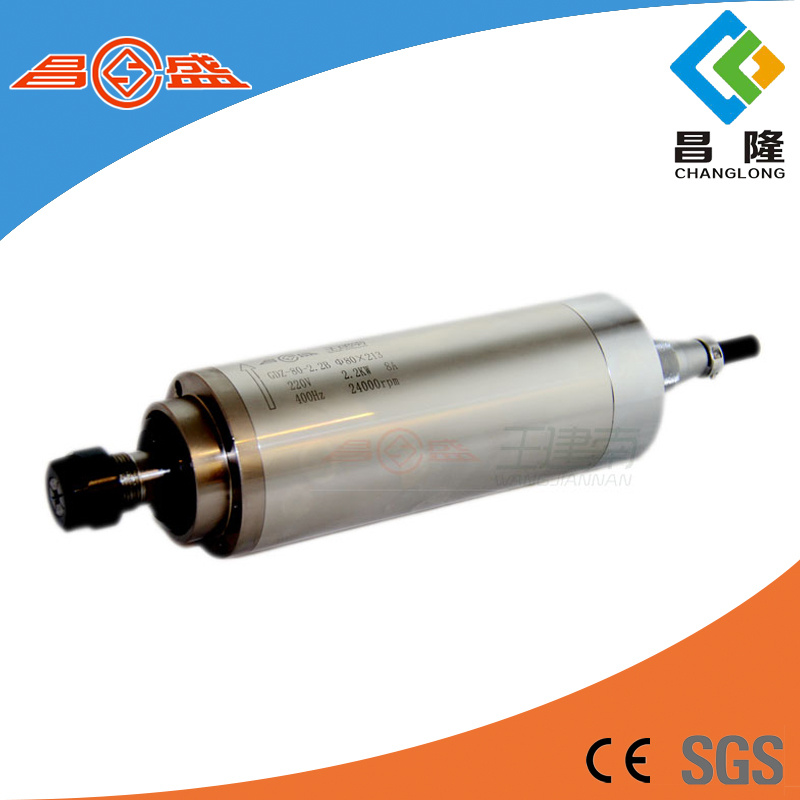

High Speed Water Cooling Asynchronous Spindle Motor for Engraving Machine 2.2kw 2200W

Name: High Speed Water Cooling Asynchronous Spindle Motor for Engraving Machine 2.2kw 2200W
Brand: all-electronics-online.com
SKU: 781774505
Availability: InStock
Rating: 4.6 (39 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GDZ80-2.2B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Number Of Stator:	Single-Phase
Function:	Driving
Certification:	CE

Product Description

Type:GDZ80-2.2B
Technical parameter:

Spindle type	GDZ80-2.2B
Diameter	80mm
Speed	24000rpm
Power	2.2KW
Voltage	220V
Current	8A
Frequency	400HZ
Joint of nose	ER20
Lub	grease
Cool	water cooling
Bearing type	7005CP42+7002CP41
Weight	5KG
Torque	0.91Nm
Collet	ER20
Collet nut	3.175mm,4mm,6mm,12.7mm
Warrantyperiod	bearings=half a year other parts a year

Spindle motor features:
1) Imported bearings with good quality, long working life.
2) Application: Milling,Engraving,Drilling in all kinds of CNC Router machine.
3) There are water cooling spindle , air cooling spindle and self cooling spindle for your choose.
4) Every spindle motor must be passed polishing process, Improve spindle concentricity to increase motor working life.

Provide:
1.water cooling:300w,800w,1.2kw,1.5kw,2.2kw,3kw,4kw,3.2kw,4.5kw,5.5kw
2.air cooling: 800w,1.5kw,2.2kw.3.5kw,4.5kw,6kw,7.5kw,12kw
3.cooled by self: 400w
4.ATC spindle: cooled by water: 1.5kw,2.2kw,5.5kw,6kw,7.5kw
cooled by air: 8kw,9kw (same HSD)
5.sealing side spindle:350w,550w,700w,750w,1.1kw,1.8kw,2.2kw

We also have spindle motor matching inverter(VFD), collet , gripper etc.
If you need other kinds of parts, please don't hesitate to contact us.

Contact us

LAURA WANG
TEL: 86-519-83826188
MOB: +86 13685206721
FAX: 86-519-85851582

ANNE WANG
MOB:+86 18661216257

MONICA LIANG
MOB:+86 18661215263

SHERLY QIAN
MOB:+86 13915891335

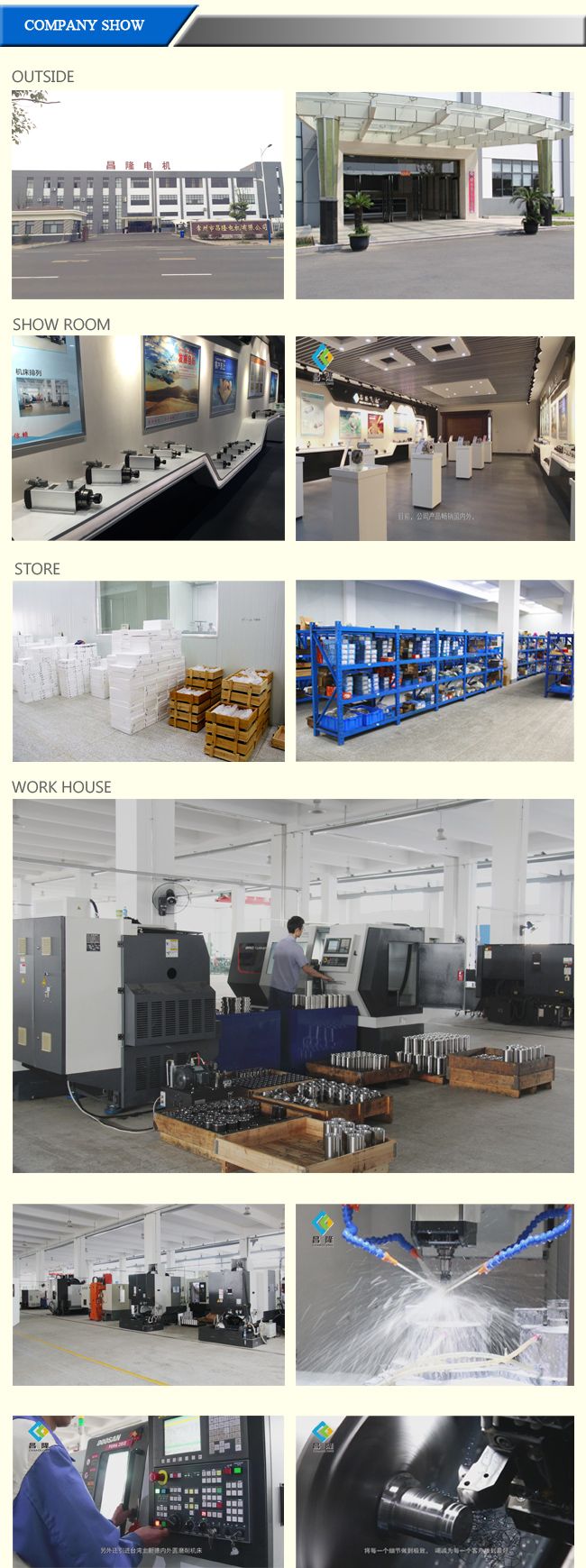

Changzhou Changlong Motor Co., Ltd. (original Changzhou LINNAN Special Motor Fatory) is located in South of Henglin Road, Wujin Dist., Changzhou City, Jiangsu Province and which covers an area of 11100 square meters for the factory. It closes to National Highway 312, Huning Highway, Yanjiang Highway and Huning Railway which is very convenient for the transportation.

Our company is established 2014, the original company "Changzhou LINNAN Special Motor Factory" which are the technological professional manufacturer of high speed spindle with more than 20 years producing experiences of spindles. We have strong technical forces, advanced electric spindle development ability and excellent production equipments.

The GDZ series high-speed electric spindles received the agreed recognition by their advantage of high accuracy, high rigidity, high efficiency, high output power and ow noise etc. Our products are widely used in cylindrical grinding, precision carving, digital control and milling equipments and so on. Thanks to the reliable, stable and durable product quality, Changsheng spindles always keeps good reputation nationwide.

Changzhou Changlong Motor Co., Ltd. Adheres to the corporation philosophy" to roducts, we are professional; To clients, we are wholehearted", we are always strive to make every details into perfect and we will dedicate to serve our clients with the best quality, the most reasonable price and the most thoughtful service!
