| Prod Model: |

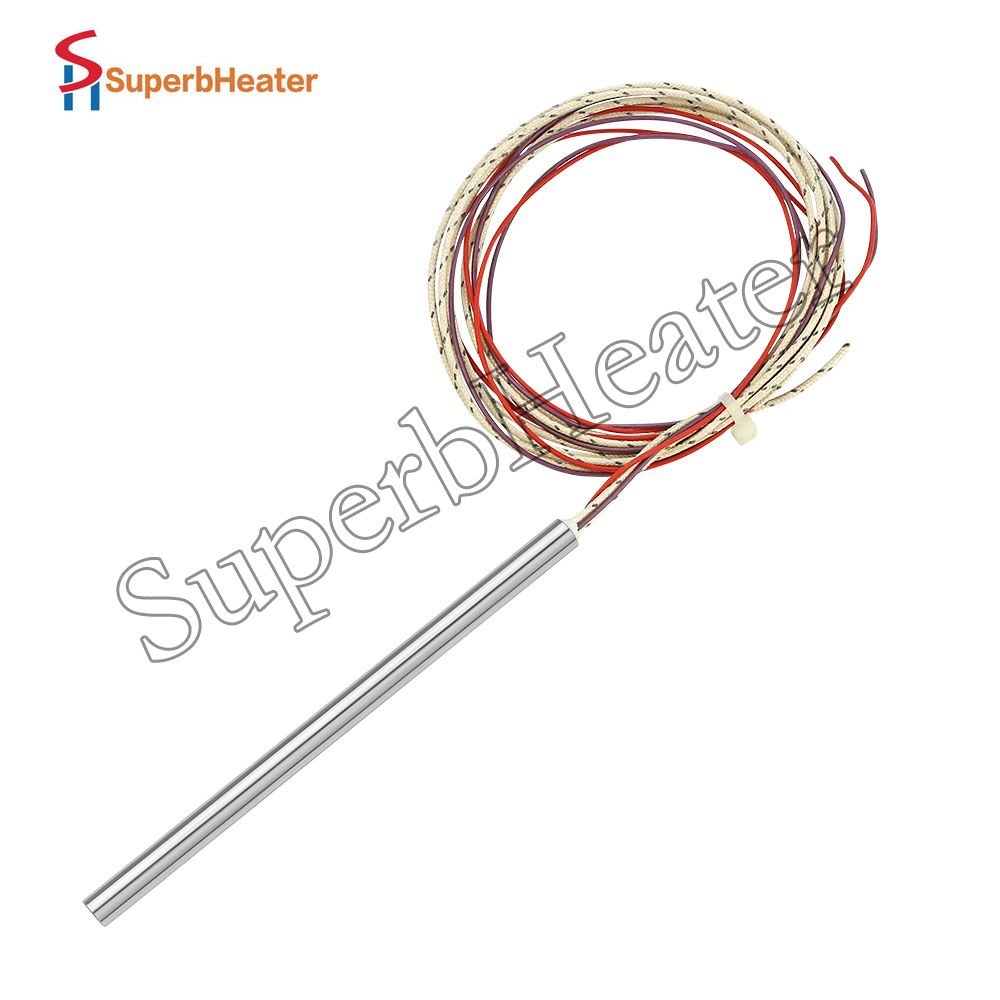

Cartridge Heater |
| Tube Materia: |
SS304,SS316,Ss321,Nicoloy600/800/84 |
| Lead Wire Material: |
Teflon,Silicone,Fiberglass |
| Voltage&Wattage: |
Customized |
Product Description

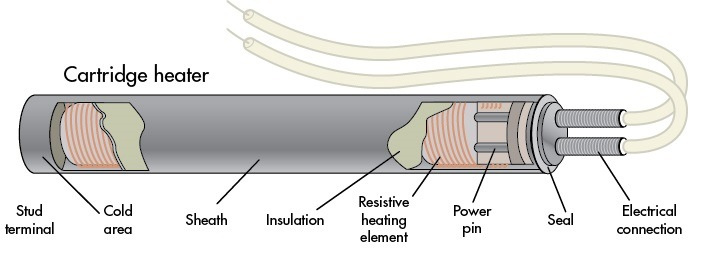

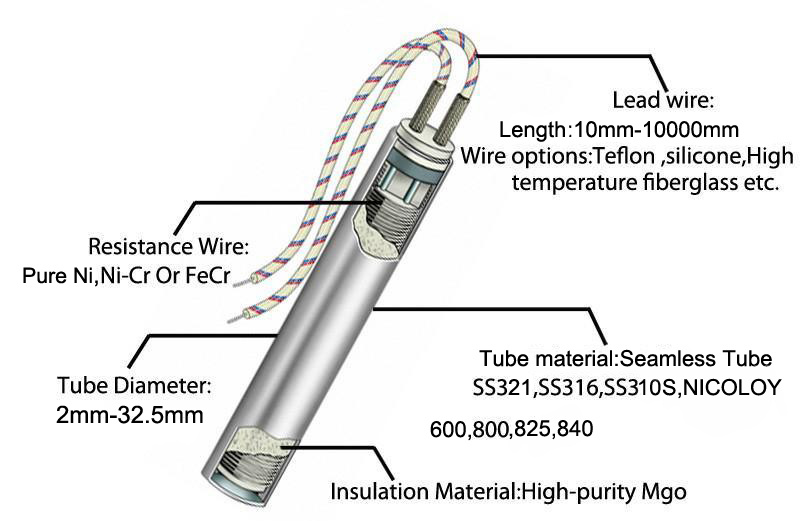

Material Specification
- Welded watertight base (Tig).
- Stainless steel AISI 304/316/321/ INCOLOY.
- Disc ceramic insulator.
- Pure magnesium oxide (UCM, Tateho).
- Resistance wire: Kanthel, BGH, Nickel-chromium 80/20. Melting point 1400º C.
- MGO Rod: Tateho, OTC.
- High temperature wire: Fiberglass wire, Pure Nickel core wire, Telfon wire.
- Conductor without connections.
Features of Product
1. Diameter: 2.5mm - 32.5mm
2. Length: 10mm - 6000mm
3. High power density
4. Long life cycle
5. Warranty: One year
6. Different type of wire available according to the usage environment.
Technical Data
| Name | Industrial Immersion Cartridge/Insertion Rod Heater Element |
| Diameter(mm) | 2.0-35.0mm (Non-standard can be customized) |
| Length | 10mm - 6000mm |
| Max Wattage | 40w/cm2 |
| Application | Mold Tools,Packaging Machinery,Plastic Process Machinery, Food Process Machinery,Printing...etc |
| Max temperature | 927 ºC |
| Insulation resistance (500 [V-DC] unheated) | ≥50MΩ |
| The maximum leakage current (253 [V-AC] unheated) | ≤0.5mA |
| High voltage stability (temperature) Rated voltage | ≤24V -500V-DC> 24V 1500V-AC |
| Wattage Tolerance | +5% - 10% (closer tolerances are available upon special request) |
| Input voltage | 12V-440V (non-standard can be customized) |
| Terminal unheated length | <3mm-20mm |
| Non-terminal unheated length | <3mm-20mm |
Connecting wiresa. Fiberglass insulation nickel wire (temperature 450 degrees -750 degrees)
b. Crimp Teflon wire (temperature 250 degrees)
c. Crimp silicon insulated wire (temperature 200 degrees)
Packaging & Delivery
1. Packaging Details: Industrial Immersion Cartridge/Insertion Rod Heater Element Export packaging : wooden box;
2. Delivery Time: About 5-7 days after getting payment ( according to quantity );
3. Delivery ways: by air, sea or express.
Why Choose US:

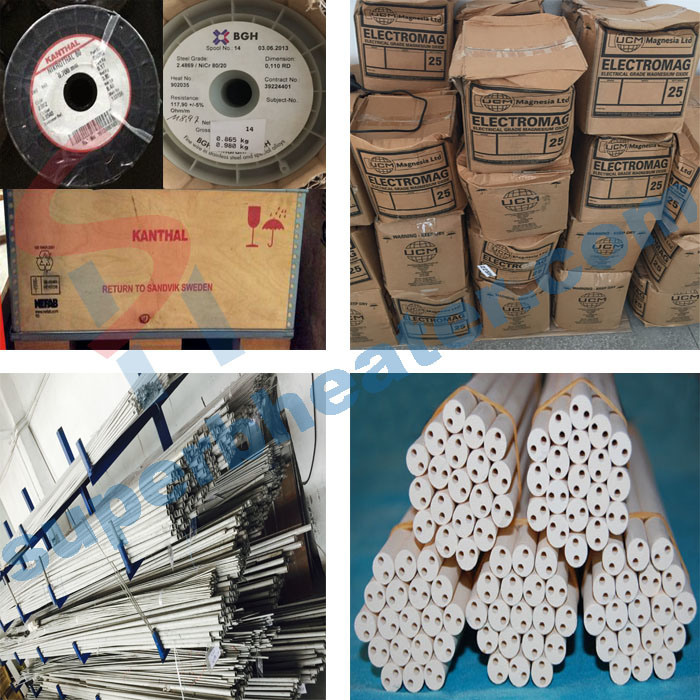

High-quality materials
Insulation: UCM(UK) Magnesium Oxide Powder ;KANTHAL ,BJH resistance wires ,SS321Seamless Stainless steel tube;OTC(USA) Tateho (Japan) mgo rod...
OUR ADVANTAGES:
1.Minimum order: 5pcs
2.Delivery time: in stock 1-2days ,out stock 3-7days

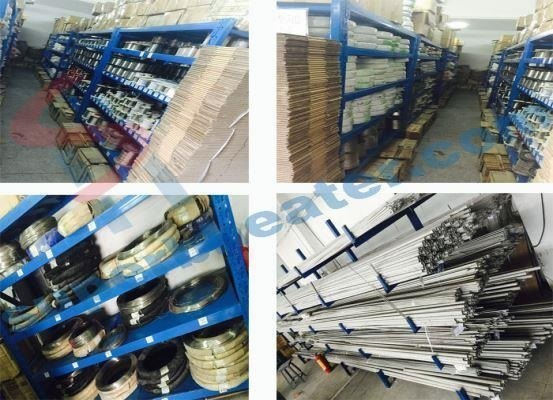

3.More than 100 different sizes stock
4.Products are divided into two grades
A grades:use the The world's top material Best quality,Meet or exceed the same quality in Europe and America,Only 40% of the price of similar products in Europe and America To meet customer demand for high quality.
B grades:use the The china top material,Best quality in china ,Meet the standard for quality and price requirements of customers
5.Provide OEM service.
6.Quality Assurance:Under normal conditions consistent with the design range ,
A grades 365days
B grades 180days
Superb Heater Technology Co.,Ltd has been focused on the production of 2mm to 40mm China manufacturer high density electric heating element cartridge heater 12v since 1985, which is well-known as one of the leading manufacturers and suppliers of 6.35mm to 23mm standard cartridge heaters Lilin cartridge heaters. In the past years, we owned strong reputation for the high quality, reliable performance and strong durability of our products. Should you are interested, please feel free to contact our factory.
Shenzhen superb heater technology Co., Ltd, Founded in 1985, Start is a state run Magnesium Oxide factory, After privatization reform To become a professional to provide all kinds of electric heating products of the comprehensive private joint-stock companies, After years of development company now grown to have include: ChaoHu heating material fitting, JiuDing machinery and spare parts, LiLin cartridge heaters, chaohu band coiling heaters, JXC Industrial heaters five plants, more than 200 employees, assets of more than $ 5 million, Products include various types of industrial heater, cartridge heater, hot runner, thermocouples, band heater and a variety of heater materials and heater equipment to meet customers one-stop shopping for all kinds of heating element, heating materials and heating equipment needs.
Over the years we are committed to technology and product quality improvement, many products similar products meet international quality, in China in the lead, swaged-in leads cartridge heater and diameter less 4mm cartridge heater as China's first single, cost-effective products to give our customers highly recognized, it has been to establish and maintain long-term cooperative relations with more than 700 customers in over 40 countries.
We will insist on our stable style to establish good image in both customers and our partners. We have been insisting on the "REDUCING THE COST AND GIVING ADVANGTAGE TO CUSTOMERS " To provide customers with better products and services, and grow with customers
After long-term accumulation, we have set up agents and partners in India, Dubai, USA, Russia, Brazil, Argentina, Thailand, Korea and other countries to provide convenient and quick service
