| Prod Model: |
PT-ID005 |
| Measurement Range: |
Gauge Pressure: - 100 Kpa ~ 0 Kpa ~ 260 MPa |
| Output Signal: |
Aci Wireless Communication |
| Accuracy Class: |
0.1,0.2,0.5 |
| Operating Frequency: |
430~470MHz |
| Transmission Distance: |
200 Meters or 800 Meters |
Product Description
Introduction

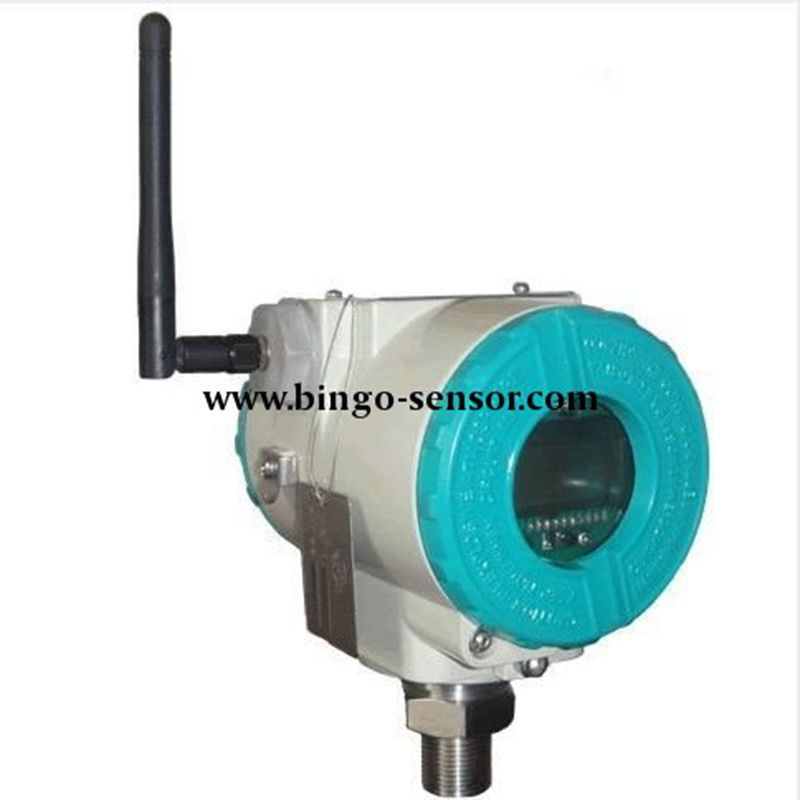

PT-ID005 wireless digital gauge is mainly composed by a pressure transmitter, a signal
Processing circuit, a central processor and a communication circuit. Large-capacity,
High-performance lithium battery-powered, 1 to 2 years of life. No external power
Supply. Real-time remote monitoring, wireless transmission, without on-site wiring,
Eliminating the need for the ordinary instrument field wiring trouble, saving both
Manpower, but also saves the cost of construction. The instrument is particularly
Suitable for the site can not be powered because the needed data for real-time
Transmission pipelines the output and wells pressure of the oil fields, oil wells,
Heating circuit detection.
Technical Parameter
| Measurement range | Gauge pressure: - 100 Kpa ~ 0 Kpa ~ 260 Mpa
differential pressure: 0 ~ 500 pa ~ 3.5 Mpa
absolute pressure: 0 ~ 10 Kpa ~ 60 Mpa |
| Output signal | ACI wireless communication |
| Accuracy class | 0.1,0.2,0.5 |
| Operating frequency | 430~470MHZ |
| Transmission distance | 200 meters or 800 meters |
| Overload pressure | 1.5 to 3 times range, determined by the measuring range |
| Built-in power supply | 3.6V high-energy lithium batteries |
| Medium temperature | -40ºC ~ 85ºC |
| Working environment: | Temperature: -30ºC to 60ºC ;
Humidity: <90%
correction parameters than the ambient: 20ºC ± 1ºC |
| Explosion-proof | ExiaIIBT4 ExdIIBT4 11 |
| Process connection | M20 × 1.5 (male thread) or customized according to user needs |
