| Prod Model: |
WP435F |
| Thread: |
G1/2, M20*1.5 |
| Measuring Medium: |
Steam, Water, Oil, Air |
| Accuracy Grade: |
0.2%Fs, 0.5%Fs |
| Pressure Range: |
-100kpa~ 0-1kpa~10MPa |
| IP Rating: |
IP55, IP65, IP67, IP68 |
| Certification: |
Ce, ISO9001, RoHS |
Product Description
High temperature 4-20mA Pressure Transmitters Max. temp. 350C
Model: WP435F
Application:
This High temperature 4-20mA Pressure Transmitters Max. temp. 350C can be used to measure and control liquids PRESSURE in:
- Hydraulic/ Pneumatics
- Food & Beverage plants
- Industrial test and control
- Light industry, Metallurgy
- Mechanical engineering
- Building automation,
- other automatic control industries
Description:
1. WP435F High temperature 4-20mA Pressure Transmitters Max. temp. 350 degree celisus adopt advanced imported sensor component with high precision, high stability and anti-corrosion.
2. This non cavity pressure transmitter can work stably for a long time under maximum 350ºC temperature work environment.
3. Laser welding technology is used between sensor and stainless steel house, without pressure cavity.
4. This 350 degree cellisus high temperature pressure transmitters are suitable to measure and control the pressure in all kinds of easy to clog, sanitary, sterile, easy to clean environment.
5. With the feature of high working frequency, this type high temperature presusre transmitters also are fit for dynamic measurement.
Features:
* Various signal outputs
* HART protocol is available
* High precision 0.2%FS, 0.5%FS
* Operating temperature:-25~ 350ºC
* 4bits or 5bits LCD intelligent display
* Pressure range: -100kPa~ 0-1MPa~100MPa
* 100% Linear meter or 3 1/2 LCD or LED digital indicator is configurable
* Pressure connection type: Flush diaphragm, corrugated diaphragm, flange mounting
* Explosion-proof type: Intrinsically safe comply with requirement of GB3836·4-83;
Flameproof comply with requirements of GB3836·2-83.
Specification:
Name | WP435F High temperature 4-20mA Pressure Transmitters Max. temp. 350C |
Pressure range | -100kPa~ 0-1MPa~100MPa |
Pressure type | Gauge pressure(G), Sealed pressure(S), Negative pressure (N). |
Accuracy | 0.2%FS, 0.5%FS |
Compensation temperature | -10~70ºC |
Operation temperature | -25~350ºC ( medium can not be solid) |
Output signal | 4-20mA;4-20mA with HART protocol; 0-10mA; 0-20mA; |
Power supply | 24V DC; 220VAC,50Hz |
Electrical connection | Cable, Terminal block |
Pressure connection | M20*1.5, G1/2, Flush diaphragm, optional. |
Overload pressure | 150%FS |
Stability | 0.5%FS/ year |
Medium material | Stainless steel 304 or 316L |
Note: More technical parameters, please feel free to contact us. |

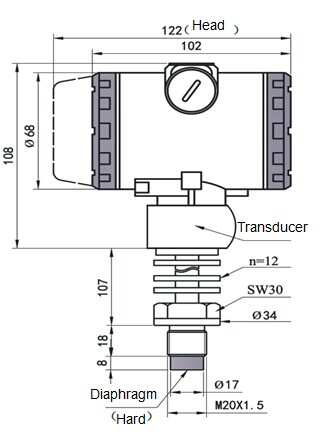

Dimensions of this High temperature 4-20mA Pressure Transmitters Max. temp. 350ºC :
Our service:
1. We have rich experience of OEM, factory can manufacture according to your request.
2. We could also send the goods which is labelling your brand name to your customer's warehouse directly.
3. We can offer you neutral packing without our logo and company information.
4. Warranty: We offer 12 months warranty for all of our products from shipping date;
5. You will enjoy free repair service for failures found within the warranty, if there are any problems of manufacturing quality;
6. We provide paid repair services for instrumentation damages beyond the warranty period or not arising from manufacturing quality problem.
