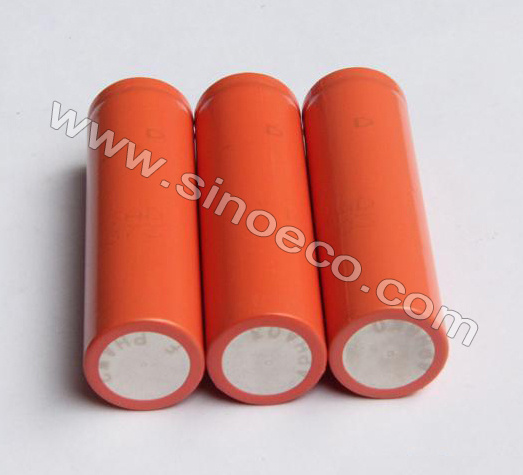

High Temperature Battery (3.6V) Dry Cell

Prod Model:	ER14250S
Markets:	Southeast Asia,Western Europe
Volt:	3.6V
Type:	Lithium-Polymer Battery
Usage:	Electric Bicycle
Discharge Rate:	Low Discharge Rate
Shape:	Cylindrical Battery
Rechargeable:	Non-Rechargeable
Nominal Voltage:	3.6V

Product Description

High Temperature Lithium Thionyl Chloride Battery (3.6 V)

The selected materials and the manufacturing process of a high-temperature Li-SOCl2 battery produced by Forte are different from those of ordinary batteries. A steel shell and a cover group both have a high-temperature structure, so the high-temperature Li-SOCl2 battery can avoid the phenomena of discharge, heaved bottoms, explosion and combustion while working in high-temperature environments, and has high safety performance.

Model

MODEL	IEC	Nominal Voltage	Max. Dimension	Weight	Standard	Continuous	Operating	Terminate
					Capacity/Current	Discharge/Current	Temperature	Voltage
		(V)	(mm X mm)	(g)	(mAh / mA)	(mA)	oC	(V)
ER14250S	1/2AA	3.6	?125.x 25.6	11	680/0.5	50	-60ºC~+85ºC	2.0
ER142505S	AA	3.6	?15.2 x 50.5	20	2000/0.5	100	-60ºC~+85ºC	2.0
ER18505S	A	3.6	?19.5 x 51.5	34	2200/0.5	150	-60ºC~+85ºC	2.0
ER26500S	C	3.6	?27.2 x50	55	6000/0.5	150	-60ºC~+85ºC	2.0
ER34615S	D	3.6	?35.2 x 61.5	105	13000/0.5	100	-60ºC~+85ºC	2.0
ER261020S	CC	3.6	?27.2 x 100	102	13000/0.5	200	-60ºC~+85ºC	2.0
ER341245S	DD	3.6	?35.2 x 125	220	25000/0.5	400	-60ºC~+85ºC	2.0

Applicants:
1. Civilian field: AMR of common instruments and CMOS circuit boards
2. Various smart meters: smart electric meters, water meters, heat meters and gas meters
3. Memories and standby power supplies: memory backup, clock power supplies and data backup power supplies
4. Radio alarm equipment/sensors: smoke alarms and temperature monitors
5. Remote monitoring systems: positioning devices and marine telemetry systems
6. Automotive electronics: tire pressure monitoring systems
7. Industrial field: automation instrumentations and equipment, oil wells, mines, medical equipment, burglar alarm, wireless communication, sea survival, etc.
8. Modern national defense and military fields: aviation, spaceflight, marine electronics, air-sea-land weapons, etc.

Characteristics:
1.High and stable working voltage
The standard voltage is 3.6V, and the working voltage is kept obviously stable in the whole service life; and more than 90 percent of battery capacity is output on a high-voltage platform with unchanged voltage.

2.Wide operating temperature range
It can be used at the temperature of -60 ºC to 150 ºC.

3. Longer storage life and higher reliability
It has a quite low self-discharge feature (the annual self-discharge rate is less than or equal to 1%), and adopts stainless steel shell and metal-glass sealing airtight welding structure, so the guarantee period of the battery is proved to be more than 10 years at room temperature.

4. High safety and non-pollution
It does not contain heavy metals such as mercury, cadmium and lead, so the environmental hazard is avoided.
