| Prod Model: |
ceramic heating element |
Product Description
Product Description:High Temperature ceramic infrared panel heaters can be used for operating temperatures up to 900 °C and surface ratings up to 64 kW/ m².
This type of heaters are produced using a hollow-casting ceramic process and are filled with thermal insulation material. This improves the radiant power output to the material to be heated.
Furthermore, there is a significant reduction in heat dissipated in the wiring space, so that additional insulation of the heating area is usually not required.
Compared with IR heaters, which are produced by using full-poured casting processes,high temperature ceramic infrared heaters have a considerably reduced heating-up time and, depending on the type of application, enable energy savings of up to 25 %.
High temperature heaters are available in four designs and cover the power range from 60 W to 1000 W.
| Radiating temperature inhomogeneity | ≤ 15% |
| Power error | The rated working voltage ≤ 5% |
| Cold insulation resistance | 500V megger> 2mΩ |
| Thermal insulation resistance | 500V megger> 0.5mΩ |
| Using life | > 3000 hours |
Features| 1. | Universal mounting design for most standard application. |
| 2. | Input voltage 120/220V and 240Vac are available. |
| 3. | With / Without J/K- type thermocouple. |
| 4. | Long operating life even continuous application. |
| 5. | High radiant efficiency. |
| 6. | Internal hollow with heat insulated material to reduce heat loss. |
| 7. | Fast heat up time. |
| 8. | Standard size 122mmx122mm, 60mmx122mm, 60mmx245mm,ect; |
| IR Ceramic Heater |

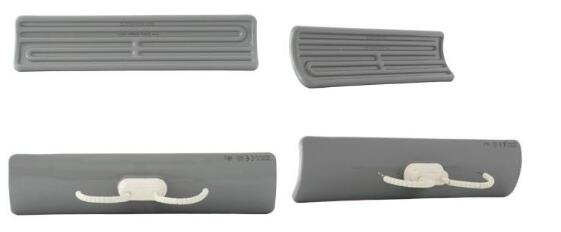

| 245*60 Full Trough Type Ceramic Heater Emitter |

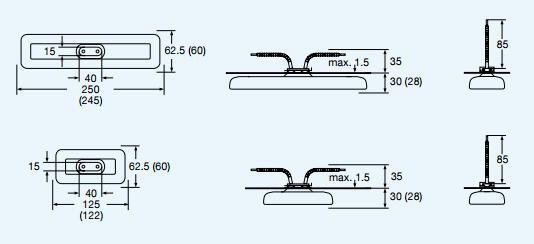

| Dimensions245x60x40mm | Average Weight | 300g |

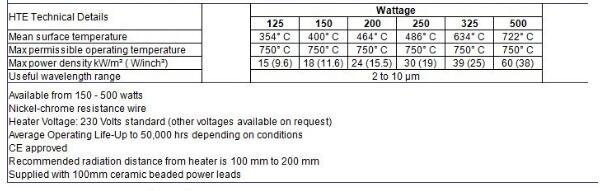

| Technical Details | Wattage |
| 150 | 250 | 300 | 400 | 500 | 650 | 750 | 1000 |
| Mean Surface Temperature | 262 °C | 354 °C | 400 °C | 464 °C | 486 °C | 589 °C | 634 °C | 722 °C |
| Max Permissible Operating Temperature | 750 °C |
| Max Power Density KW/m2(W/inch2) | 9(5.8) | 15(9.7) | 18(11.6) | 24(15.5) | 30(19.4) | 39(25.2) | 45(29) | 60(38.7) |
| Useful wavelength Range | 2-10 |
Available from 150-1000 watts
Nickel-Chrome resistance wire
Heater Voltage: 230 Volts standard (other voltages available on request)
Average Operating Life-UP to 50,000hrs depending on conditions
CE approved
Recommended radiation distance from heater is 100mm to 200mm
supplied with 100mm ceramic beaded power leads 122*60 Half Trough Type Ceramic HeaterDimensions 122x60x40mm Average Weight 180g
Advantage | 1.Low MOQ | It can meet your promotional business very well. |
| 2.OEM Accepted | We can produce any your design as long as you provide us the drawing. |
| 3.Good Service | We treat clients as friend. |
| 4.Good Quality | We have strict quality control system .Good reputation in the foreigner market. |
| 5..Fast & Cheap Delivery | We have big discount from forwarder (Long Contract). |
Check below for more information on placing
| 1. | Inquiry-Professional and accurate quotation. |
| 2. | Confirm the price, trade term, lead time, artwork, payment term etc. |
| 3. | MICC sales send the Proforma Invoice with MICC seal. |
| 4. | Customer arranges the payment for deposit and sends us bank slip. |
| 5. | Initial Production step-Inform the clients that we have got the payment. And will make the samples according to your request, send you photos or Samples to get your approval. After approval, we inform that we will arrange the production & inform the estimated time. |
| 6. | Middle Production-send photos to show the production line which you can see your products in . Confirm the estimated delivery time again |
| 7. | End Production-Mass production products photos. |
| 8. | Clients make payment for balance and MICC ships the goods. Inform the tracking number and check the status for clients. |
| 9. | The order is finished perfectly when you receive the goods and get satisfied with them . |
| 10. | Feedback to MICC about Quality , Service, Market Feedback & Suggestion. And we will do better . |
Delivery
Shenzhen superb heater technology Co., Ltd, Founded in 1985, Start is a state run Magnesium Oxide factory, After privatization reform To become a professional to provide all kinds of electric heating products of the comprehensive private joint-stock companies, After years of development company now grown to have include: ChaoHu heating material fitting, JiuDing machinery and spare parts, LiLin cartridge heaters, chaohu band coiling heaters, JXC Industrial heaters five plants, more than 200 employees, assets of more than $ 5 million, Products include various types of industrial heater, cartridge heater, hot runner, thermocouples, band heater and a variety of heater materials and heater equipment to meet customers one-stop shopping for all kinds of heating element, heating materials and heating equipment needs.
Over the years we are committed to technology and product quality improvement, many products similar products meet international quality, in China in the lead, swaged-in leads cartridge heater and diameter less 4mm cartridge heater as China's first single, cost-effective products to give our customers highly recognized, it has been to establish and maintain long-term cooperative relations with more than 700 customers in over 40 countries.
We will insist on our stable style to establish good image in both customers and our partners. We have been insisting on the "REDUCING THE COST AND GIVING ADVANGTAGE TO CUSTOMERS " To provide customers with better products and services, and grow with customers
After long-term accumulation, we have set up agents and partners in India, Dubai, USA, Russia, Brazil, Argentina, Thailand, Korea and other countries to provide convenient and quick service
