High Temperature Ceramic Terminal Block with Ce, RoHS, Reach, VDE
| Price: |
US $ 0.05/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1000/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
2.5MM2, 4MM2, 6MM2, 10MM2, 16MM2, 25MM2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
4, 6, 10, 16mm2, 1~4 Poles |
| Housing: |
Porcelain(Glazed Option) |
| Temp.: |
1000ºC |
| Colour: |
White |
| Application: |
Cable |
| Environmental Protection: |
General |
| Shape: |
Rectangle |
| Brand: |
Es |

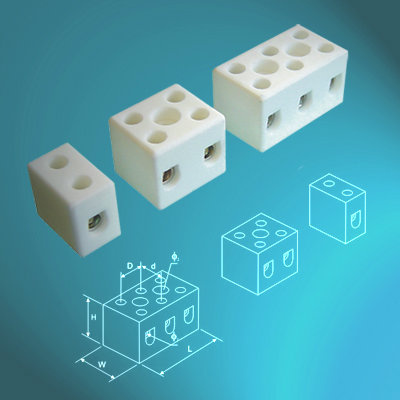

Product Description
High Temperature Ceramic Terminal BlockWe have a full range of terminal blocks made with PE, PP, PA, PC, Porcelain and brass and also specialize in making toolings according to customers' own drawings and samples with fast turnaround time and cost-effective solutions.
Specification of Ceramic/ Porcelain Terminal Blocks:
Heat & Chemical Resistance; Good Insulation Property; Non-inflammable. It's widely used in high temperature environment, kinds of connection terminal space of severe demand.
Product Specifications:
Inserts: Nickel Plated Brass
Housing: Porcelain (Glazed Option)
Temperature: 1000ºC
Screws: Galvanised Steel
Standard: CE (BS EN 60998)
Color: White
| EASE CODE | CROSS SECTION | CURRENT RANGE | RATED VOLTAGE | DIMENSIONS (mm) |
| W | L | Φ1 | Φ2 | D | d | H |
| CPO-5A-1P | 4 mm2 | 5 - 32A | 450V | 13 | 12 | 3.2 | - | - | 8 | 16 |
| CPO-5A-2P | 4 mm2 | 5 - 32A | 450V | 18 | 21 | 3.2 | 4.5 | 12 | 8 | 16 |
| CPO-5A-3P | 4 mm2 | 5 - 32A | 450V | 18 | 33 | 3.2 | 4.5 | 12 | 8 | 16 |
| CPO-5A-4P | 4 mm2 | 5 - 32A | 450V | 17.8 | 45.2 | 3.2 | 4.8 | 12 | 8 | 15.8 |
| CPO-15A-1P | 10 mm2 | 15 - 57A | 450V | 21 | 13 | 4.3 | - | - | 10 | 20 |
| CPO-15A-2P | 10 mm2 | 15 - 57A | 450V | 21 | 24 | 4.3 | 4.8 | 14 | 10 | 20 |
| CPO-15A-3P | 10 mm2 | 15 - 57A | 450V | 21 | 36 | 4.3 | 4.8 | 14 | 10 | 20 |
| CPO-15A-4P | 10 mm2 | 15 - 57A | 450V | 20.7 | 48.6 | 4.3 | 4.9 | 13 | 10 | 19.5 |
| CPO-30A-1P | 16 mm2 | 30 - 76A | 450V | 21 | 15 | 6.1 | - | - | 12 | 22 |
| CPO-30A-2P | 16 mm2 | 30 - 76A | 450V | 27 | 31 | 6.1 | 5.0 | 17 | 12 | 22 |
| CPO-30A-3P | 16 mm2 | 30 - 76A | 450V | 27 | 48 | 6.1 | 5.0 | 17 | 12 | 22 |
| CPO-30A-4P | 16 mm2 | 30 - 76A | 450V | 26.6 | 64.3 | 6.1 | 4.9 | 17 | 12.5 | 21.3 |
| Cross Section: | rated for rigid wire and cables (if for flexible wire, it should be reduced one-step, i.e. 6mm2 is 4mm2 |
Φ1 wire entry hole diameter |
Φ2 fixing hole diameter |
Why Choose EASE Ltd.?EASE Ltd., founded in 1996, is one of the leading manufacturers and suppliers in China for Cable & Lighting Accessories. With a sales center and 20,000 square feet warehouse, the company can provide the fastest possible responses to the customers ever changing needs in the UK and across Europe.
1. Quality is our culture. All proction is strictly according to UL/ VDE/ REACH/ IMQ/ CE regulateion and with100% tested before delivery.
2. Free samples will be provided for evaluation at any time.3. Guarantee the prompt delivery. Special for customers in the UK and Europe: the same day delivery within UK and 5-day delivery in Europe. 4. OEM is available. 5. We are One-stop Shop for cable accessories.Your satisfaction is our ultimate goal!
EASE Ltd. has always been looking for partners rather than customers!

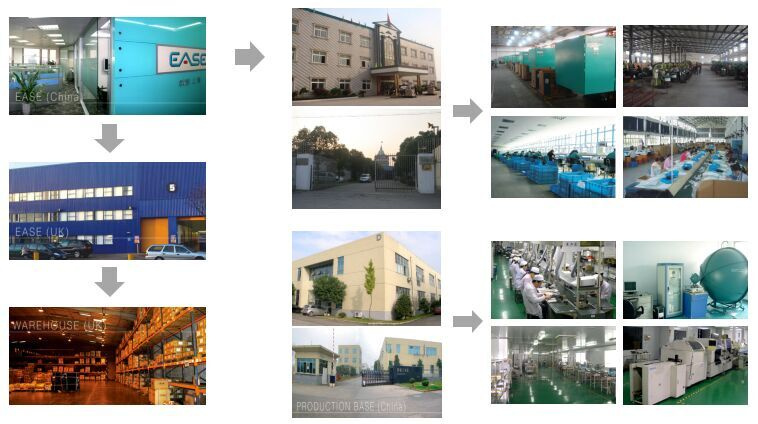

Any questions or needs, please feel free to contact us!EASE Ltd. FACILITIES
