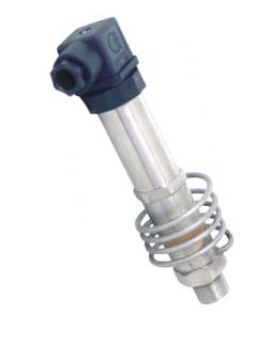

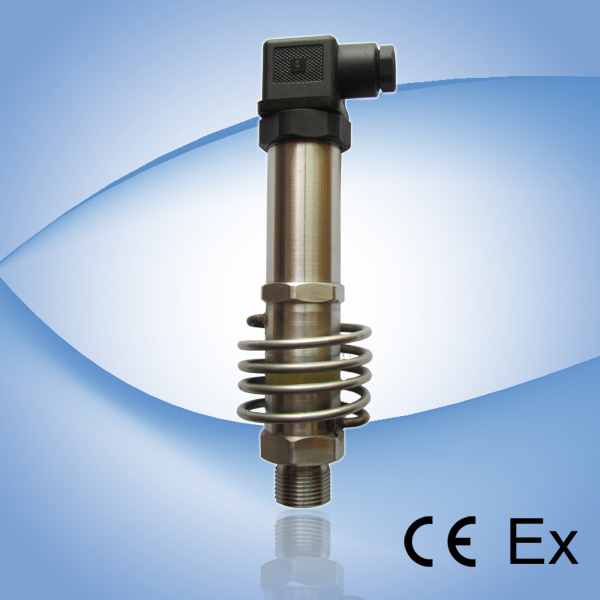

High Temperature Diffusion Silicon Pressure Transmitter (QP-83G)

Name: High Temperature Diffusion Silicon Pressure Transmitter (QP-83G)
Brand: all-electronics-online.com
SKU: 792238215
Availability: InStock
Rating: 4.4 (149 reviews)

Price:	US $ 89/Piece
Min Order:	2/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	QP-83G
Accuracy:	0.25%Fs
Output Signal:	4~20mA;0~10V, 1~5V, 0~5V, 0~20mA
Power Supply:	12~36(Standard 24VDC)
Application:	Measuring The Gases and Liquid
Measuring Range:	: 0~100kpa, 0~500kpa….0~100 MPa
Measuring Medium:	Gas and Liquid

Product Description

Model: QP-83G
Range: 0~100KPa, 0~500KPa….0~100 MPa

Feature:

Have the characteristics of high precision, good stability, long working life and high reliability.
Easy to installation.
Small in size, light in weight.
The range of medium temperature: -30ºC~150ºC
Pressure connection and Electrical connection are able to chosen by customers.
Suitable for measuring the gases and liquids.

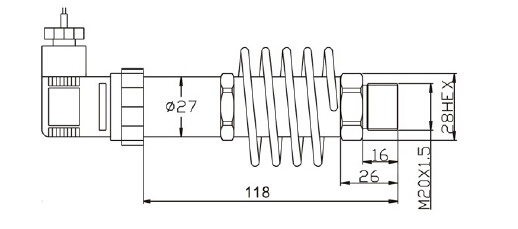

Dimensions: (unit: mm)

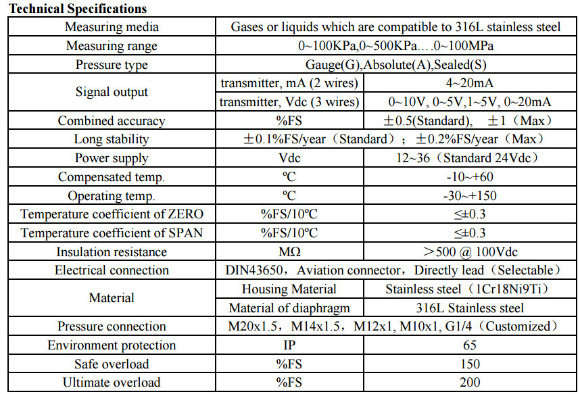

Technical Specifications

Electrical Connection:

Ordering Code: model- range & type-signal output-accuracy-pressure connection-electrical connection-defend grade-the other requests.
Example: QP-83G-0/300KPaG-4/20mA-0.5%FS-M20x1.5-DIN43650-IP65-***
