Product Description
Product Details
Name: Platinum and rhodium thermocouple
Model: WRP-130/131/230/231 (default is type 130)
Index: S / B / R
Material: platinum and rhodium 10-platinum
Temperature range: 0-1300 degrees long, short 0-1600 degrees
Specifications: ceramic tube (corundum) diameter default Φ16mm, length can be customized;
stainless steel nozzle diameter default Φ22mm, the length of the default 150mm, the shortest can be customized 50mm
Platinum rhodium wire diameter: the default is 0.3mm
Product features
Platinum and rhodium thermocouple, also known as precious metal thermocouple, it is used as a temperature measurement sensor, usually with the temperature transmitter, regulator and display instruments and other supporting the use of the composition process control system for direct measurement or control of various production processes 0- 1800 ºC range of fluid, steam and gas medium and solid surface temperature.
Platinum and rhodium thermocouple is composed of two different components of the conductor at both ends of the circuit into the loop, when the two junction temperature is different, it will generate heat in the loop. If there is a temperature difference between the working end of the thermocouple and the reference end, the display instrument will indicate the temperature value corresponding to the thermoelectric potential generated by the thermocouple.
The thermoelectric heat of the platinum and rhodium thermocouple will increase with the increase of the temperature at the measuring end. Its size is only related to the temperature of the thermocouple material and both ends, regardless of the length and diameter of the hot electrode. The appearance of various platinum and rhodium thermocouples is often very different, but their basic structure is roughly the same, usually by the thermal electrode, insulation sleeve protection and junction box and other major components.
Platinum and rhodium thermocouple applications
Applicable to all kinds of high-temperature production process, widely used in powder metallurgy, sintering bright furnace, vacuum furnace, smelting furnace, glass, steel stove and ceramic and industrial salt bath temperature.
The main technical parameters of platinum and rhodium thermocouple
Electrical outlet: M20x1.5, NPT1 / 2
Accuracy class: I, II
Protection class: IP65
The diameter of the filament: Φ0.5
Nominal pressure: normal pressure
Product Description
Thermocouples are used in industry for measuring the temperature of gases, liquids or solid surfaces etc., Its usually assembled with indicators, recorders or computers.
A thermocouple consists of two dissimilar metals joined together at one end. When the junction of the two metals be cooled or heated and a voltage is produced that can be correlated back to the emperature.The calibrations are K, N, E.J, T, S, R, B. Each calibration has a different temperature range.
MODEL:
| Thermocouple & rtd |
| Ref No. | WR | Temp |
| Thermal element materials | B: PtRh30-Pt6
R: PtRh13-Pt
S: PtRh10-Pt
N: NiCrSi-NiSi
K: NiCr-NiSi
E: NiCr-CuNi
J: Fe-CuNi
T: Cu-CuNi | 0~1600C
0~1300C
0~1300C
0~1000C
0~900C
0~600C
0~500C
0~350C |
| Ref No. | WZP | Temp |
| | PT100
PT1000
CU50 | -200~+650C
-200~+650C
-200~+650C |
| Pairs quantity of sensor wire | Simplex
Duplex |
| Ways of Mounting & Fixing | 1:without fixing device
2:fixed thread
3: movable flange
4: fixed flange
5: right-angle movable flange
6:fixed thread in wimble shape protection tube |
| Types of connections box | 2: anti-spray (Protection class: IP65)
3: water-proof (Protection class: IP55) |
| Types of sensor end | G: variable section
K: sheathed elements
T: flexible sheathed elements |
| Diameter of protection tube | 0:¢16
1:¢20
2:¢16 high aluminum material
3:¢20high aluminum material |
| Measuring range | 0~1600 degree Celsius |
| Shipping | By air, sea, express |
| Sample time | 2~7 days |
| Manufacture time | 7~30 days depen on order quantity |

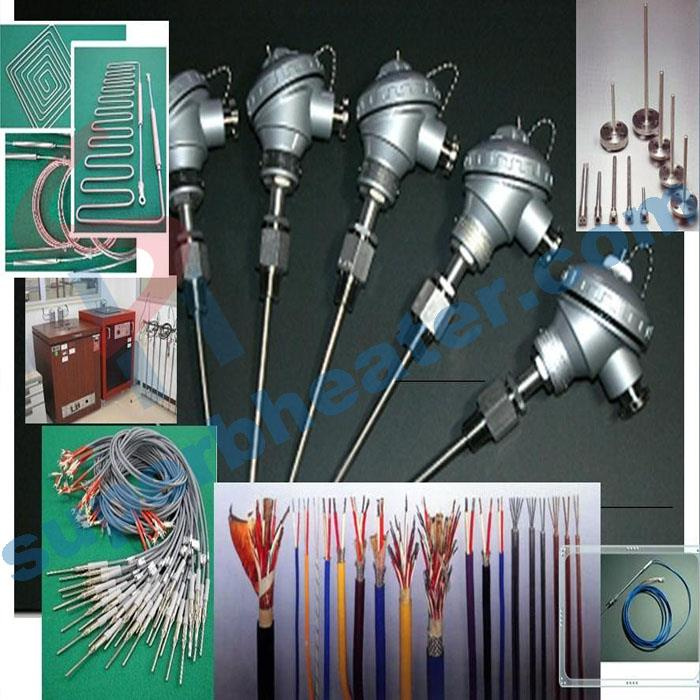

Detailed Images:

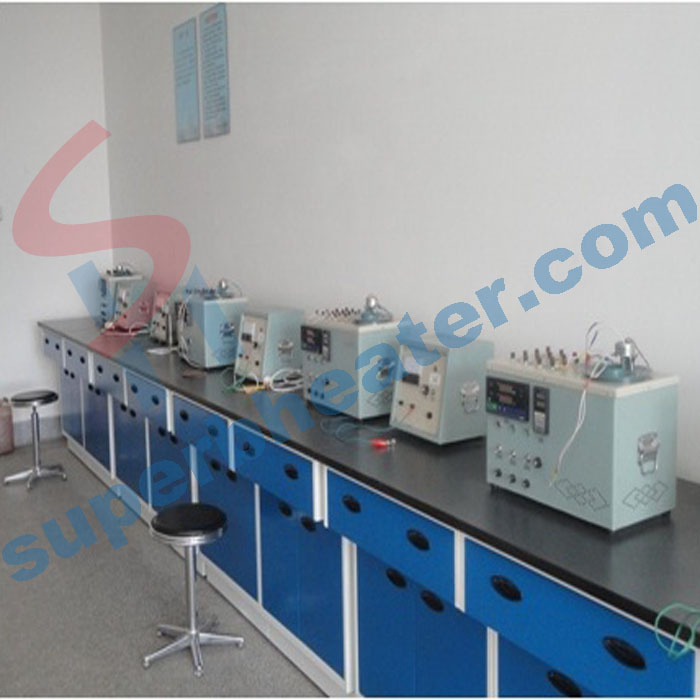

Work shop:
Raw material:
Packing and shipment:
